Home >> Toyota >> 2012 >> RAV4 4WD L4-2.5L (2AR-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment

Alignment

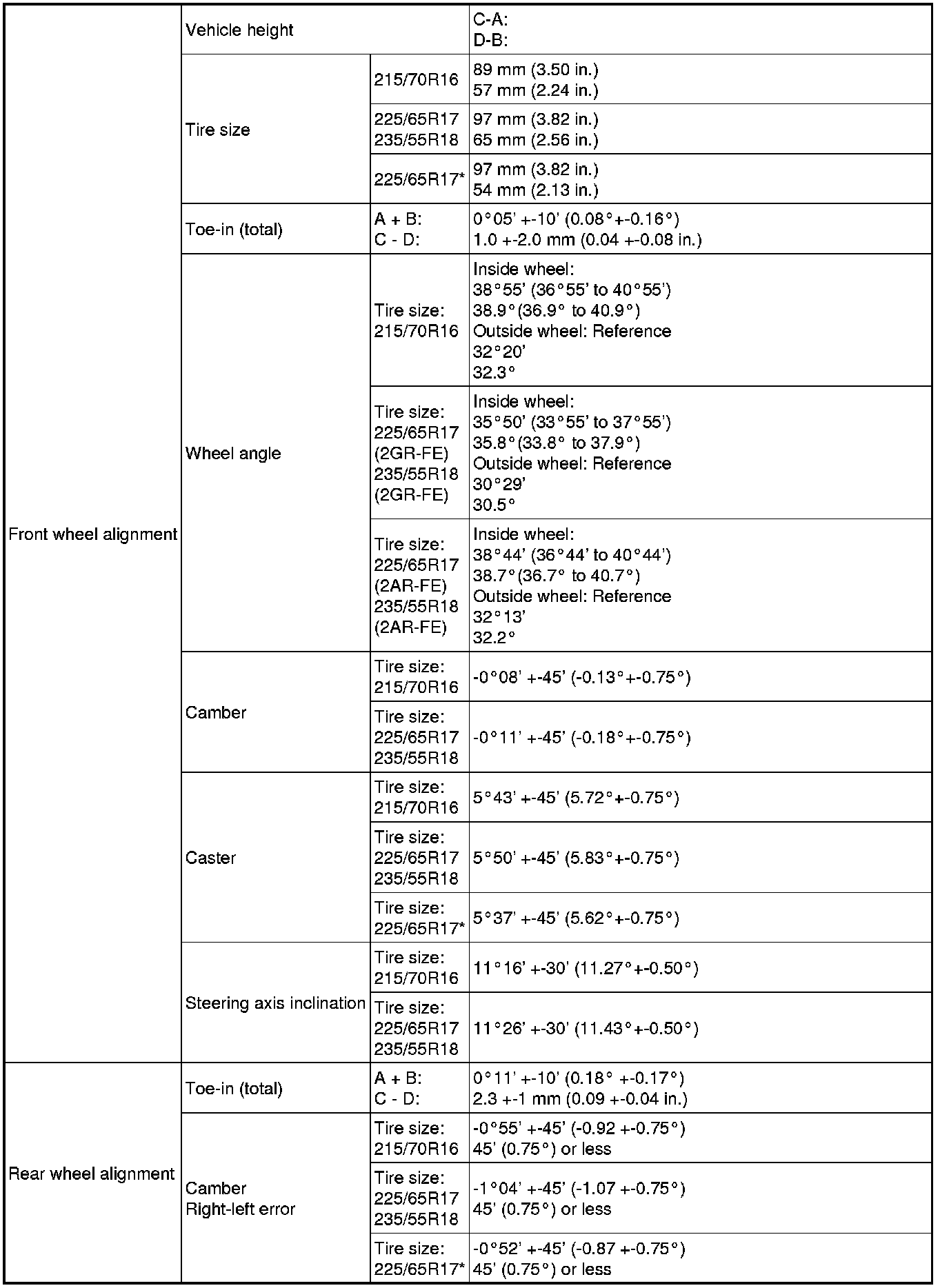

SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA

*: w/ 3rd seat.

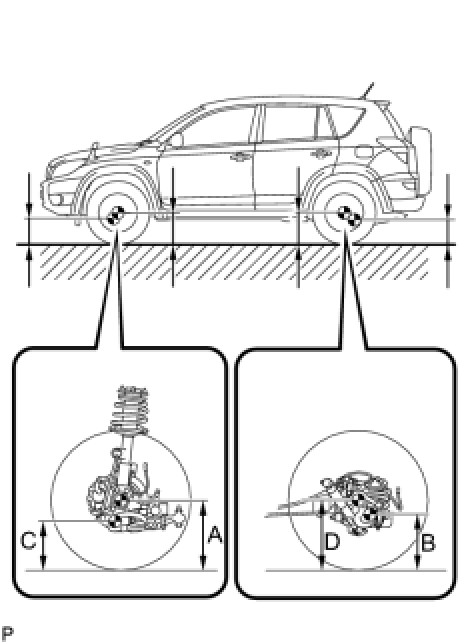

VEHICLE HEIGHT

Standard vehicle height (unloaded vehicle)
