Installation

2GR-FE STARTING: IGNITION SWITCH: INSTALLATION

1. INSTALL IGNITION SWITCH ASSEMBLY

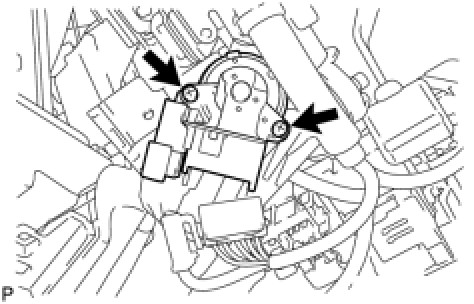

(a) Install the ignition switch with the 2 screws.

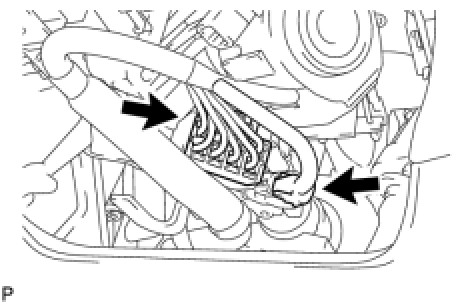

(b) Connect the ignition key cylinder light connector.

(c) Connect the ignition switch connector.

2. INSTALL STEERING COLUMN COVER LOWER

(a) Install the steering column cover lower Installation.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
