Side Airbag Sensor: Components: Illustration

Fig 1: Identifying Side Airbag Sensor Replacement Components (1 Of 2)
GTY231161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

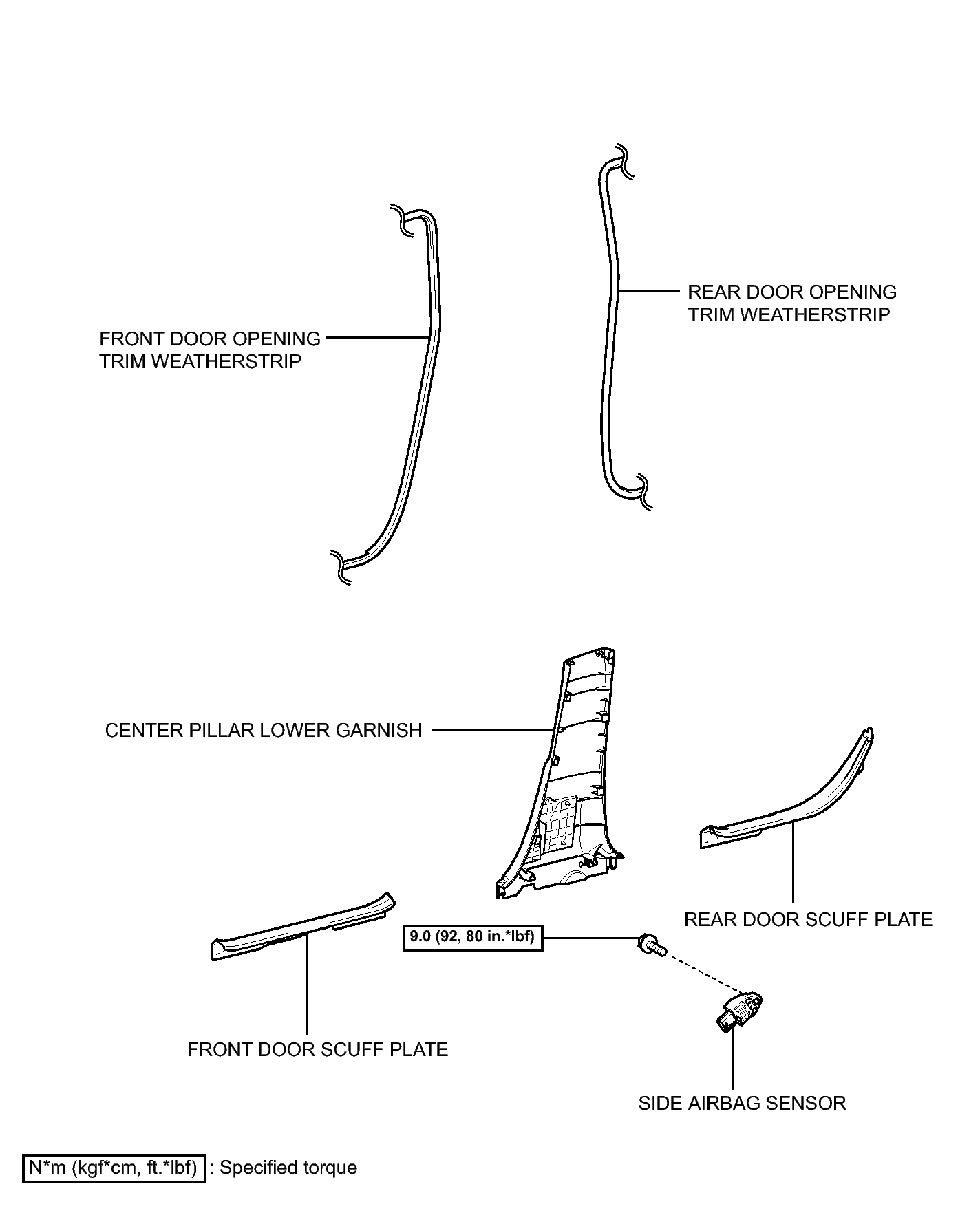

Fig 2: Identifying Side Airbag Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY234918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
