Home >> Toyota >> 2012 >> Matrix FWD L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle >> Service Data

Service Data





SPECIFICATIONS: E351 MANUAL TRANSMISSION / TRANSAXLE: SERVICE DATA

MANUAL TRANSAXLE ASSEMBLY:

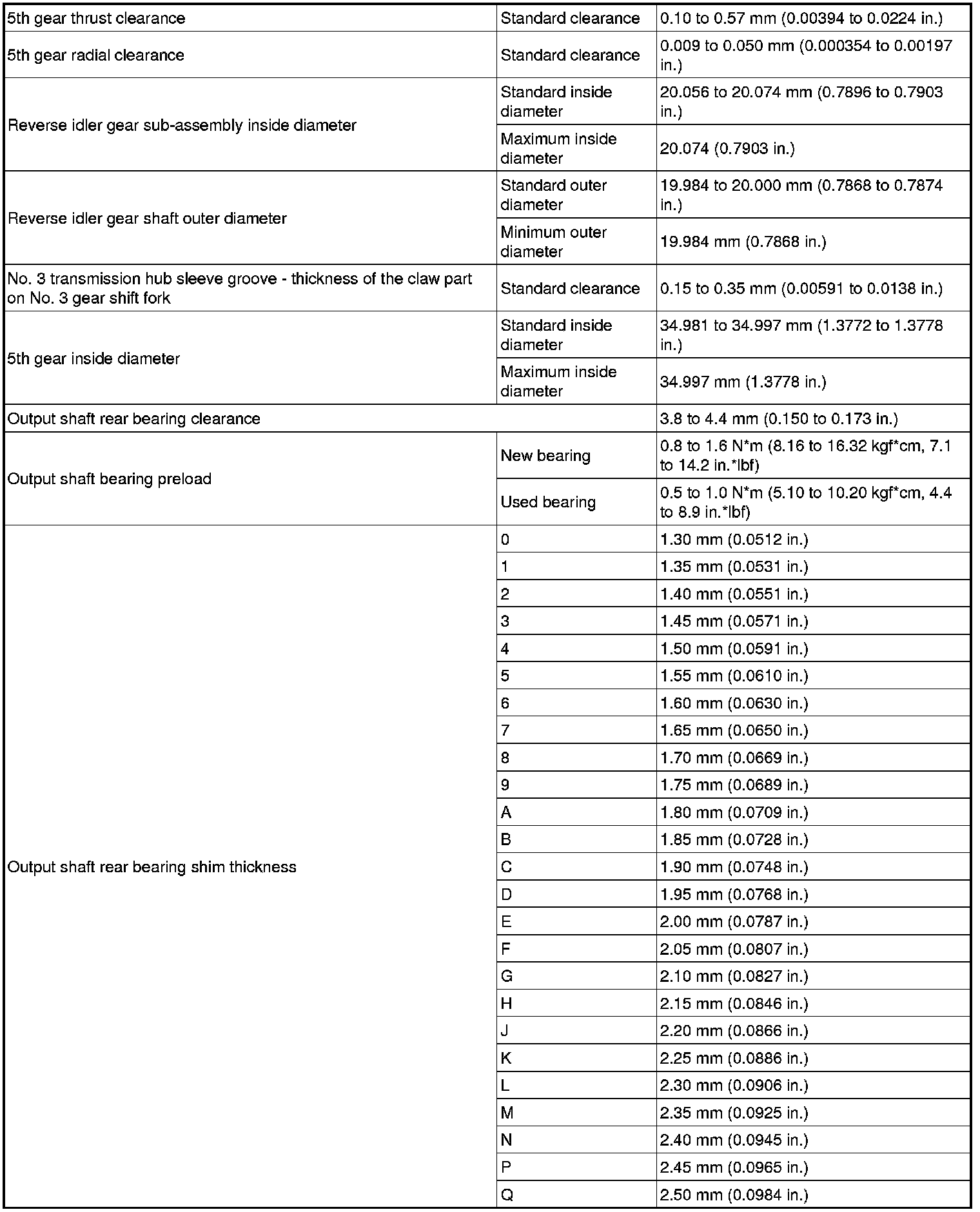

MANUAL TRANSAXLE UNIT:

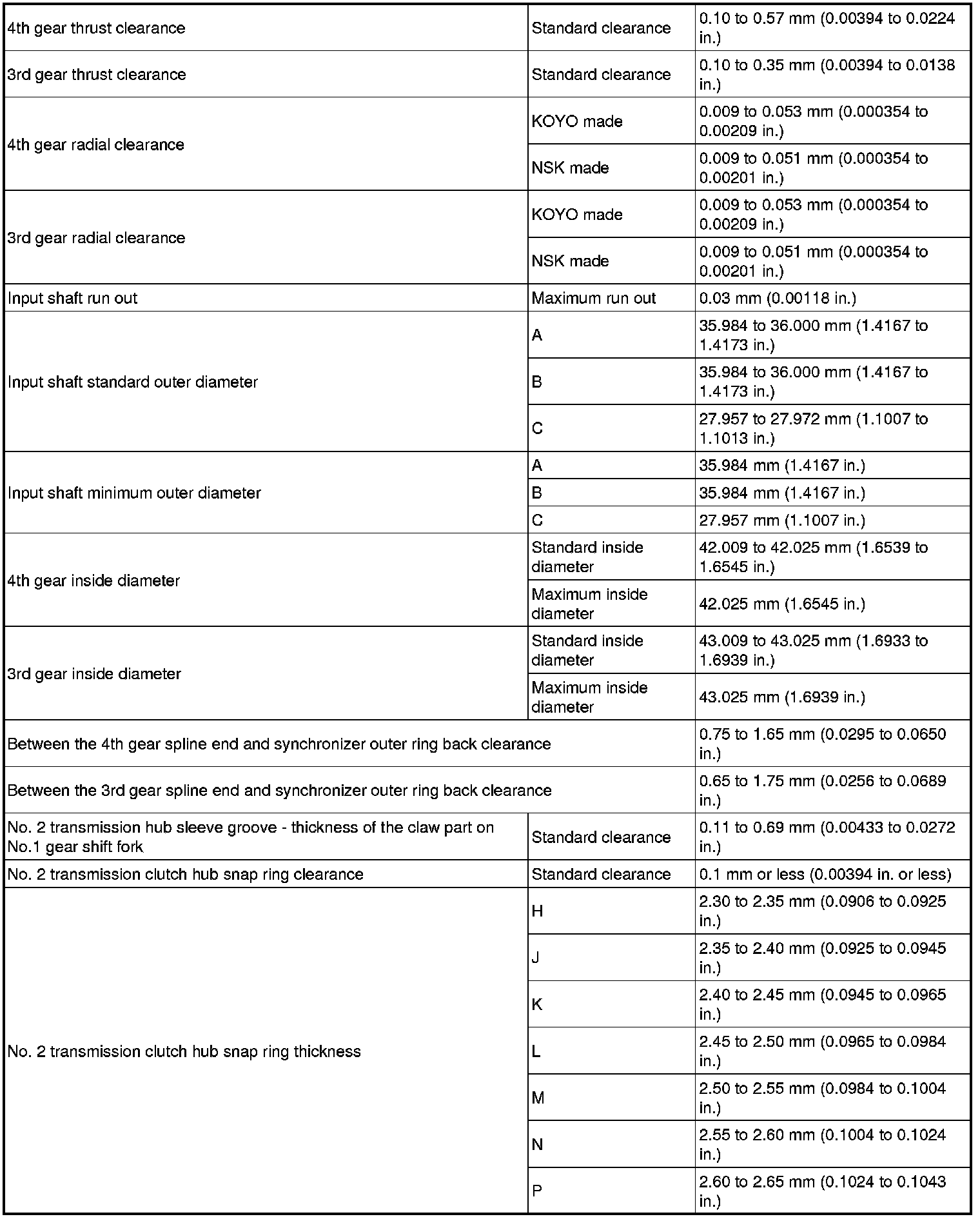

INPUT SHAFT ASSEMBLY:

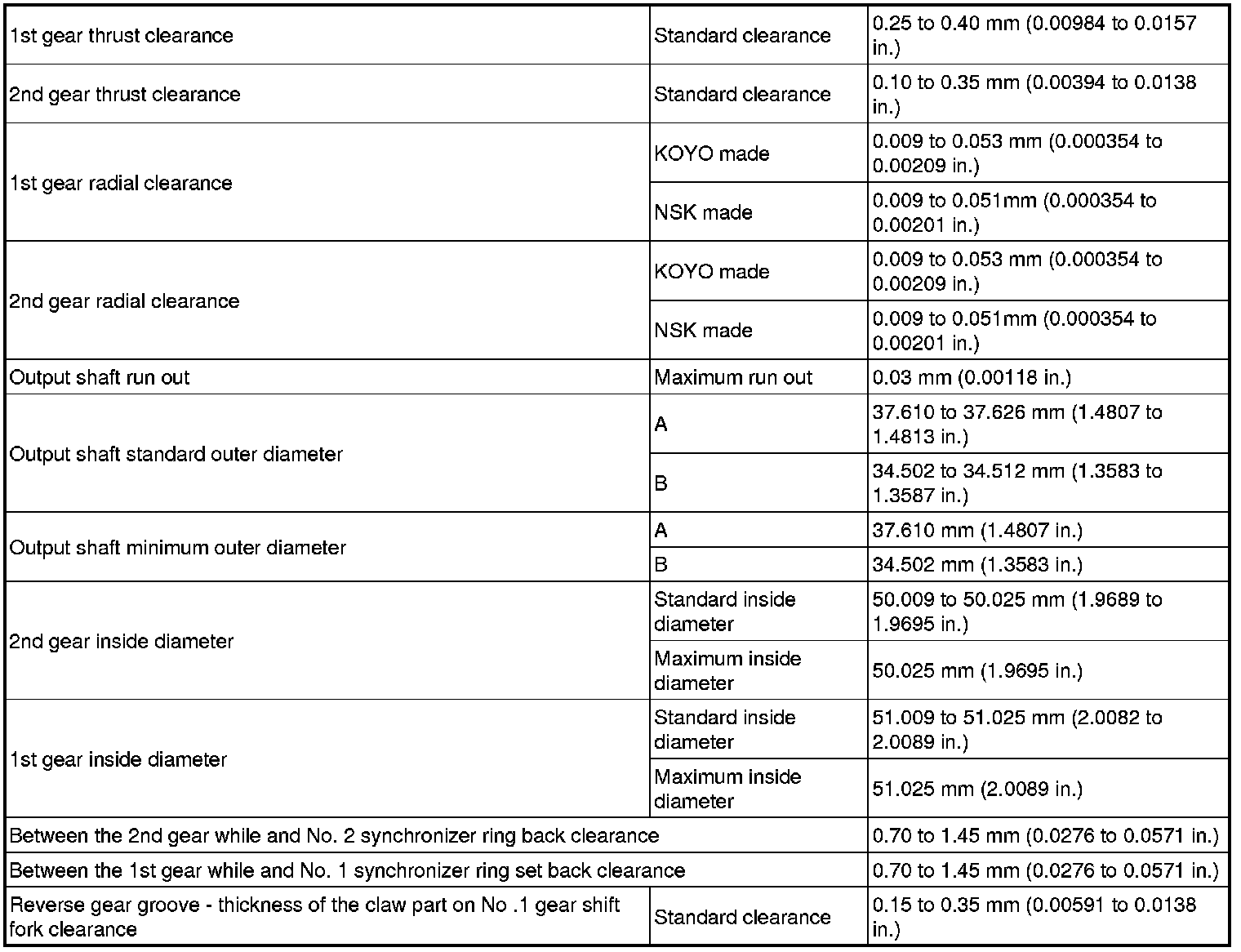

OUTPUT SHAFT ASSEMBLY:






SHIFT AND SELECT LEVER SHAFT ASSEMBLY:

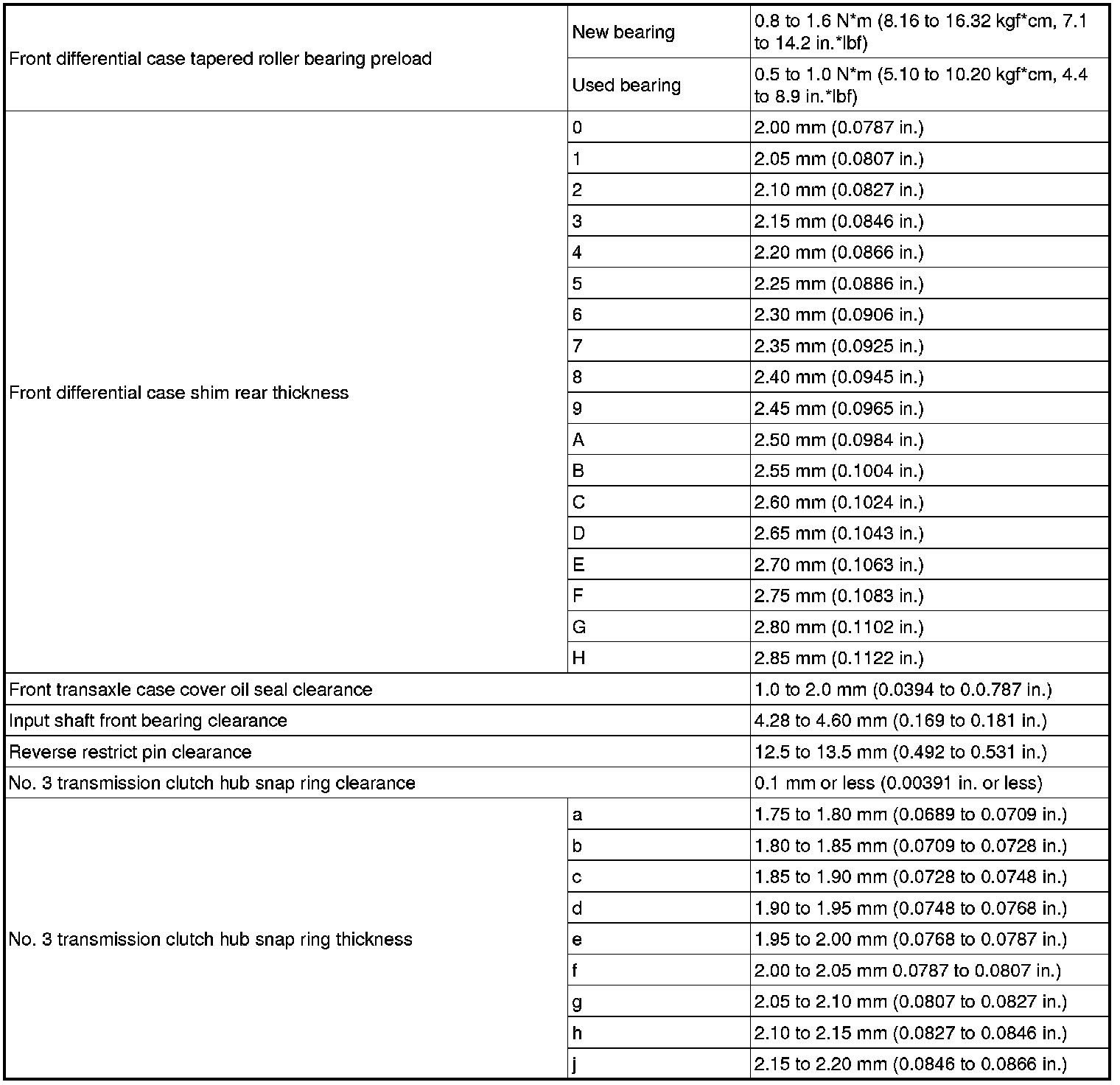

DIFFERENTIAL CASE ASSEMBLY:
