Home >> Toyota >> 2012 >> Matrix FWD L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Locations

Powertrain Management: Locations

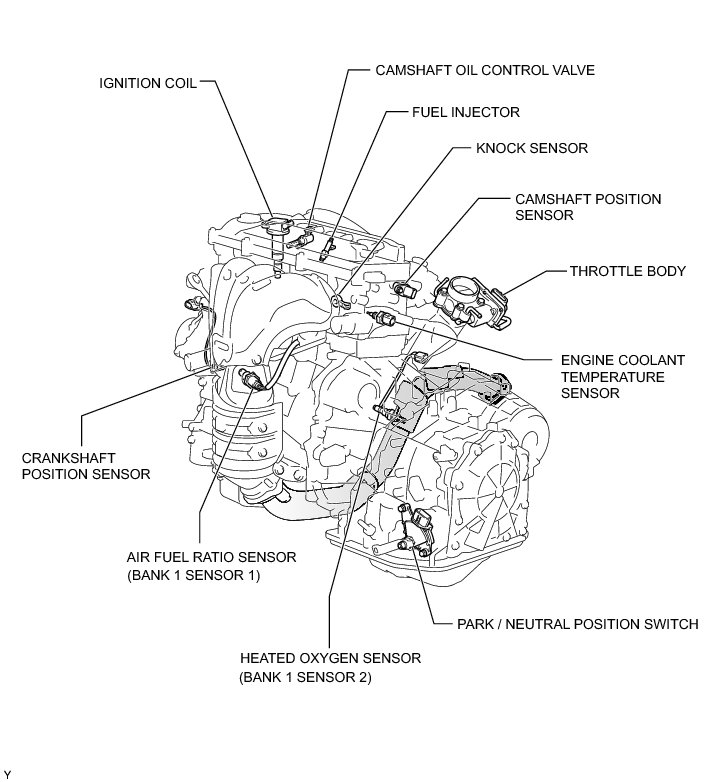

2AZ-FE ENGINE CONTROL: SFI SYSTEM: PARTS LOCATION
