Home >> Toyota >> 2012 >> Matrix FWD L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations

Emission Control Systems: Locations

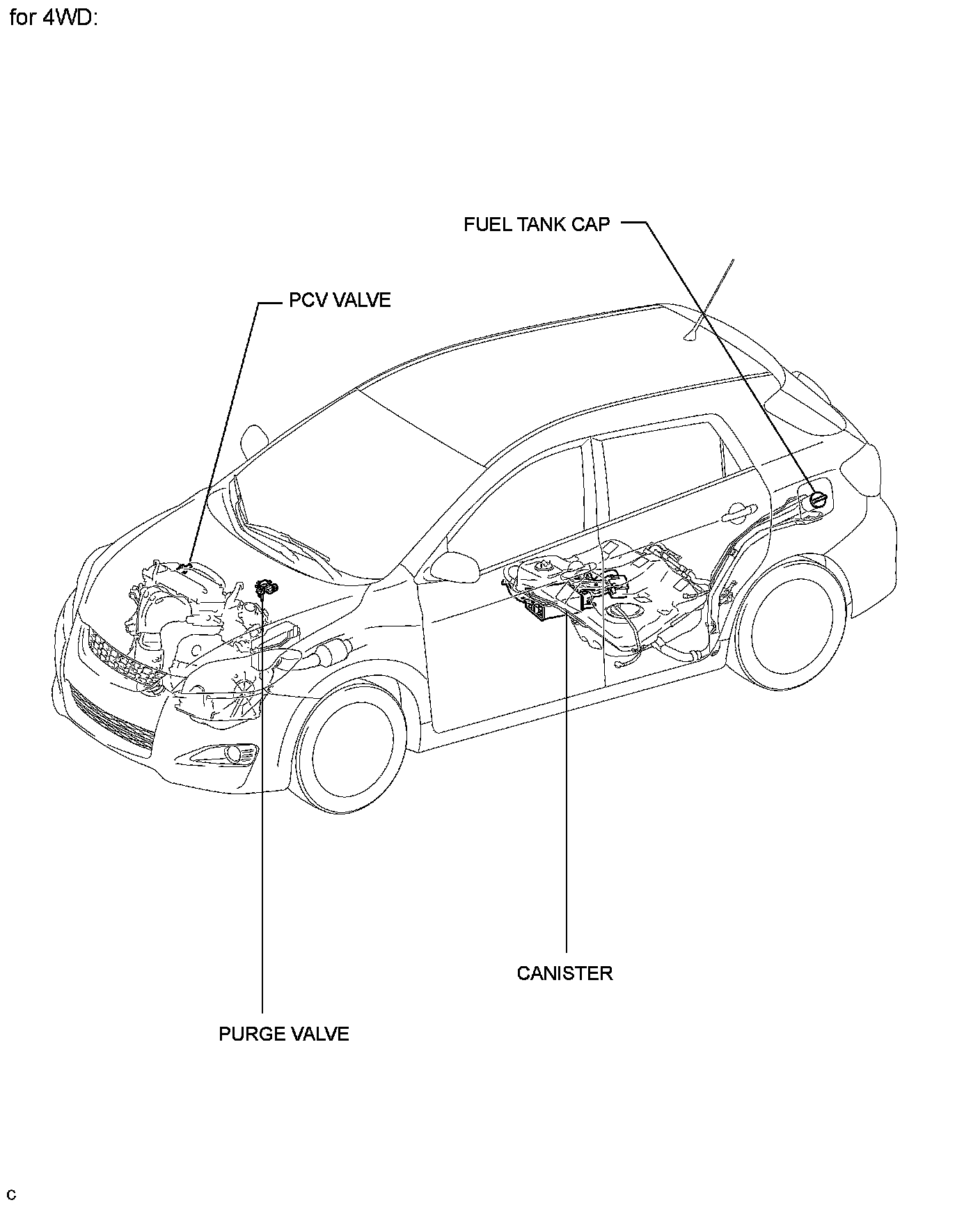

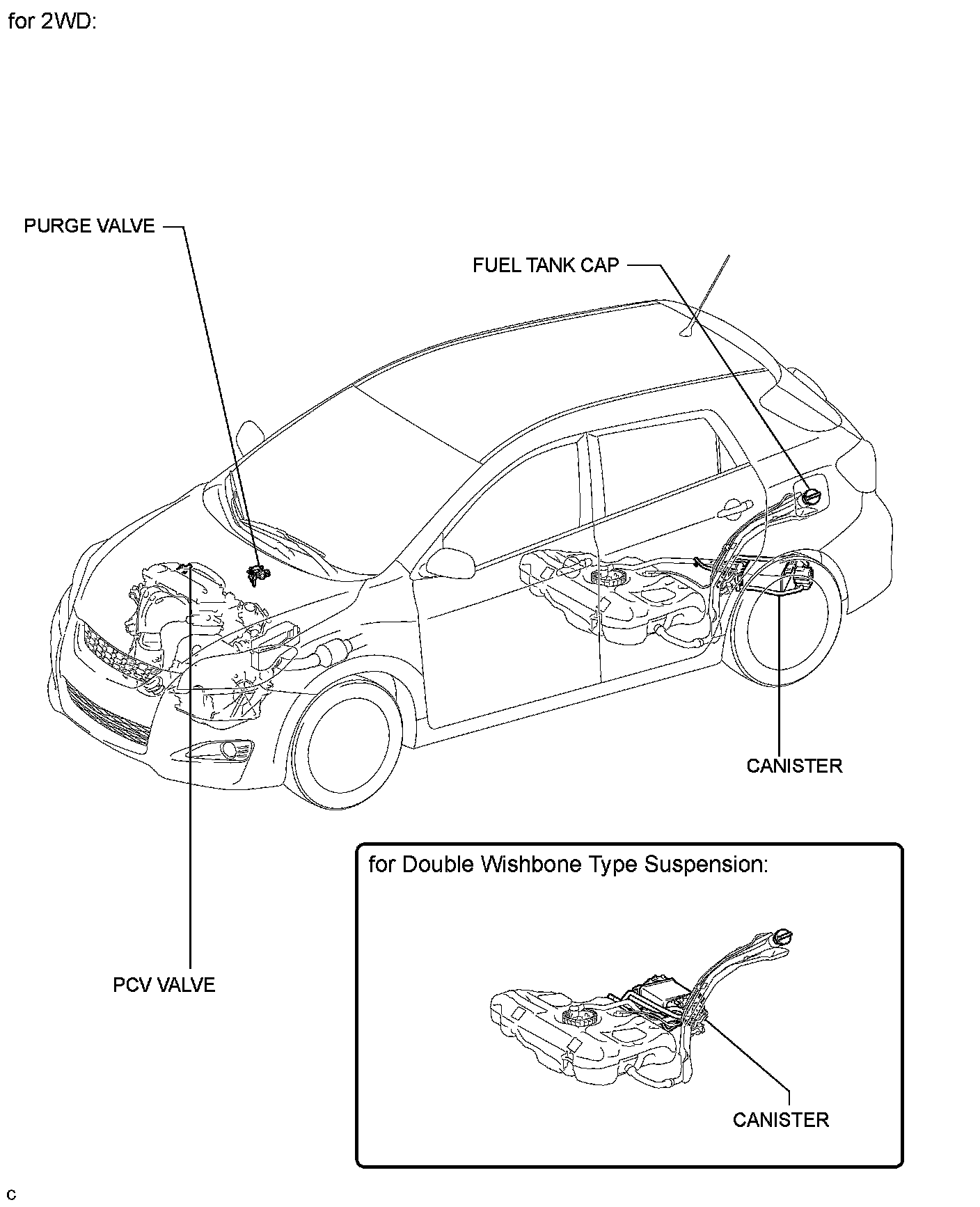

2AZ-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM: PARTS LOCATION
