Flex Plate

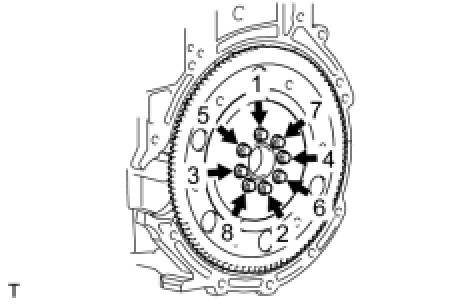

DRIVE PLATE AND RING GEAR SUB-ASSEMBLY (for Automatic Transaxle)In several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration.
Torque 88 Nm (897 kgf-cm, 65 ft-lbf)
In several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration.
Torque 88 Nm (897 kgf-cm, 65 ft-lbf)
