System Diagram

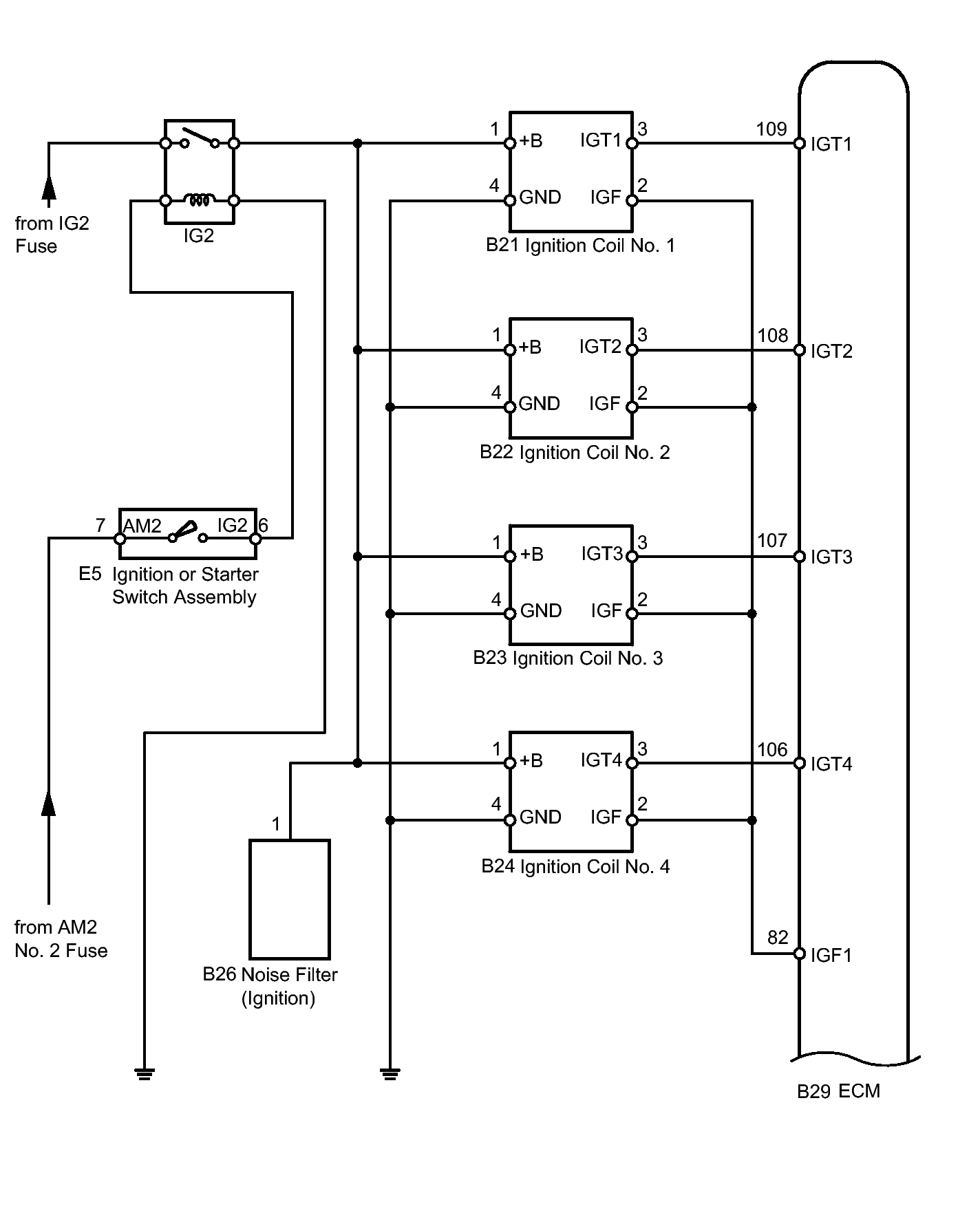

Fig 1: Ignition System Circuit Diagram (1 Of 2)
GTY292420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Ignition System Circuit Diagram (2 Of 2)
GTY290632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
