Installation





WINDOW / GLASS: POWER WINDOW MASTER SWITCH: INSTALLATION

1. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

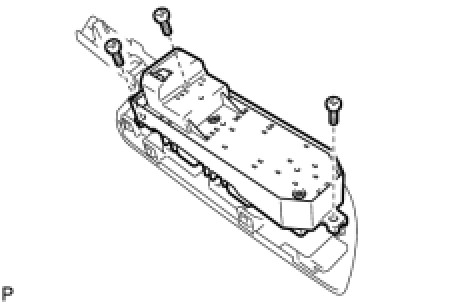

(a) Install the power window regulator master switch assembly with the 3 screws.





2. INSTALL FRONT ARMREST UPPER BASE PANEL LH Reassembly
