Service Data





SPECIFICATIONS: AXLE AND DIFFERENTIAL: SERVICE DATA

Axle

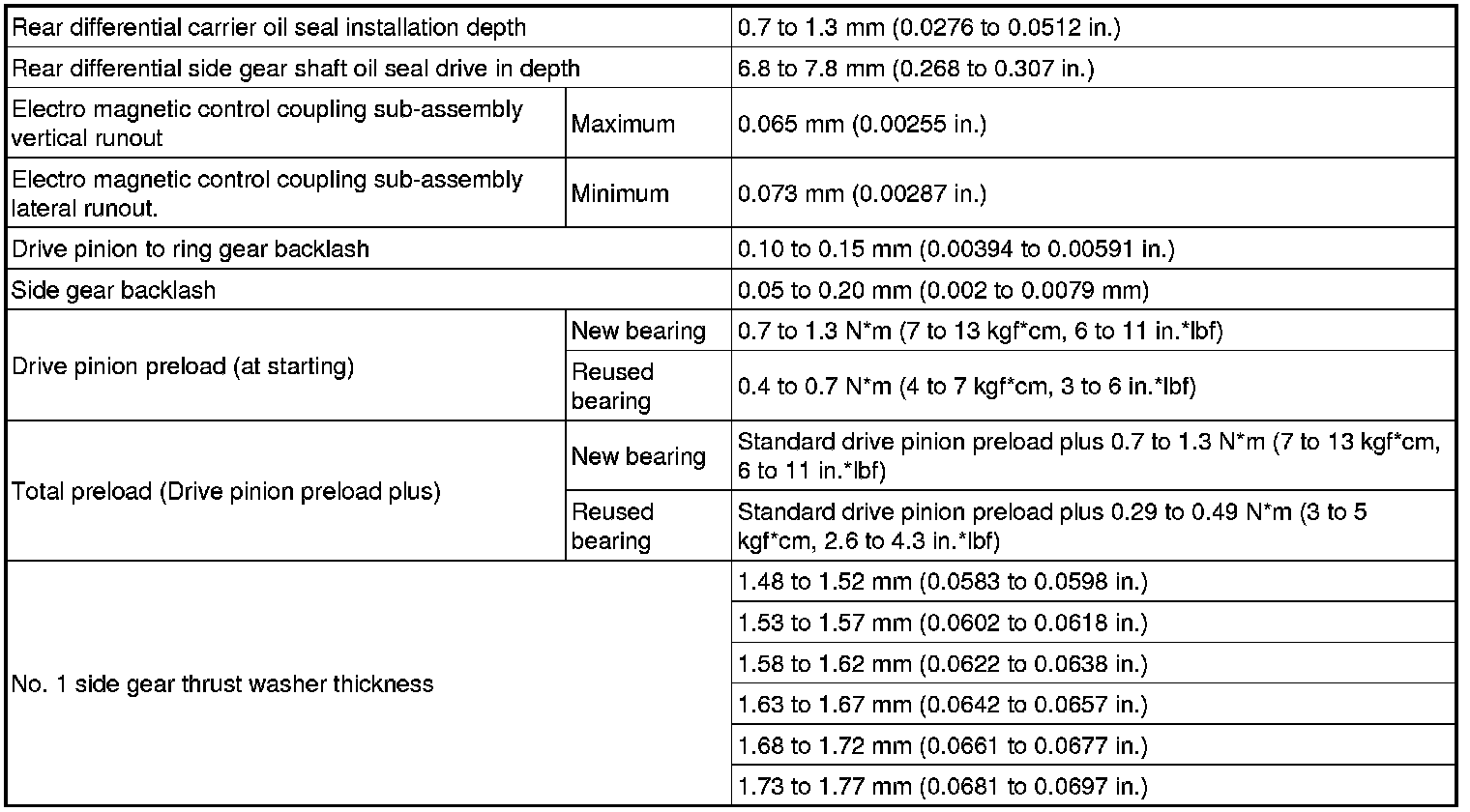

Differential

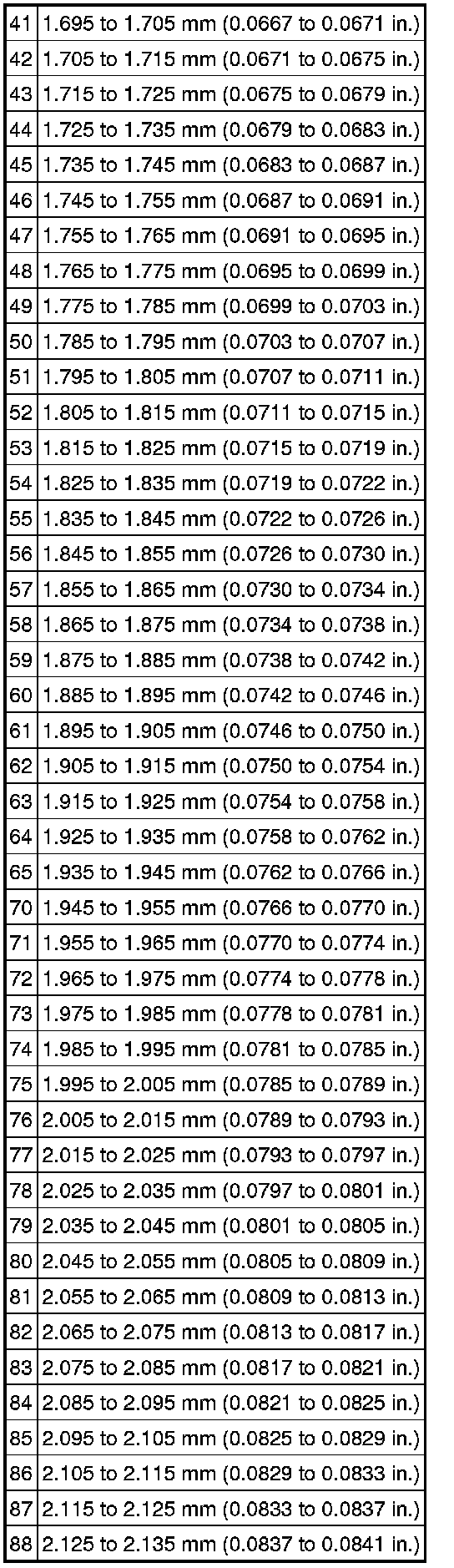

Differential / Rear differential side gear shaft plate washer thickness

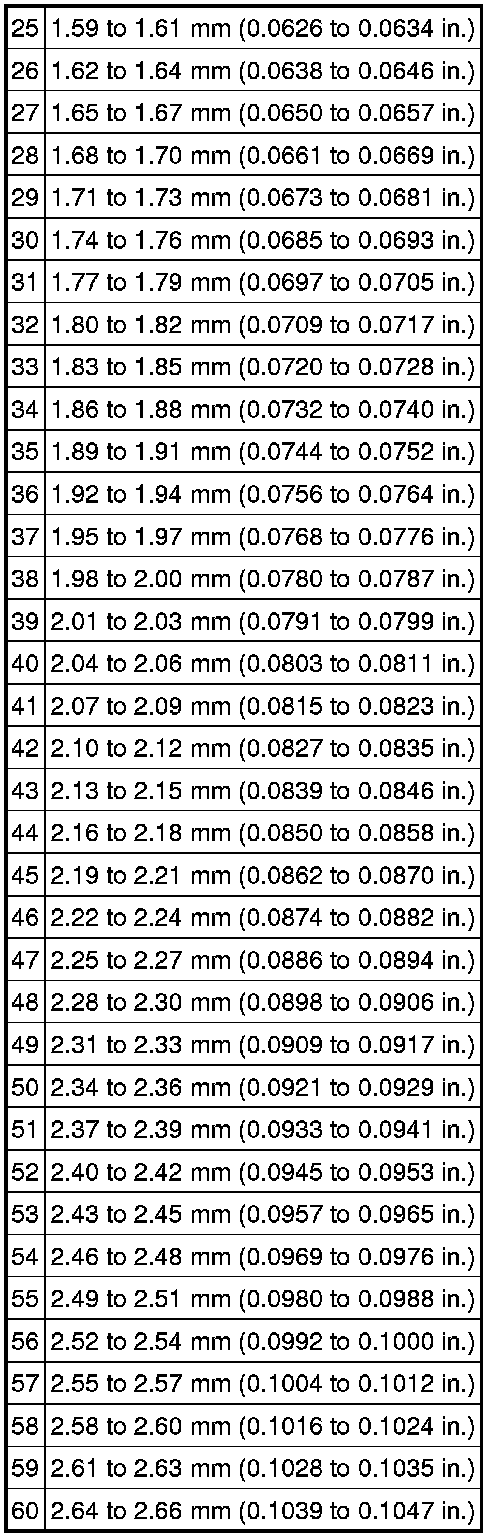

Differential / Rear differential drive pinion plate washer thickness
