Service Data





SPECIFICATIONS: BRAKE (REAR): SERVICE DATA

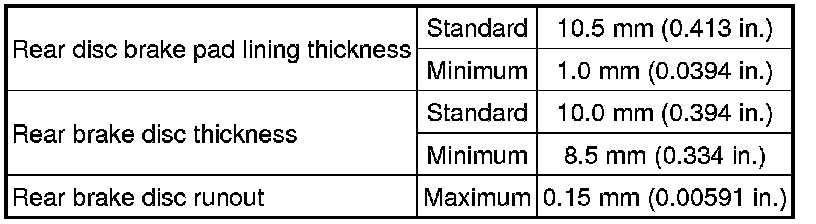

for Double Wishbone Type Suspension

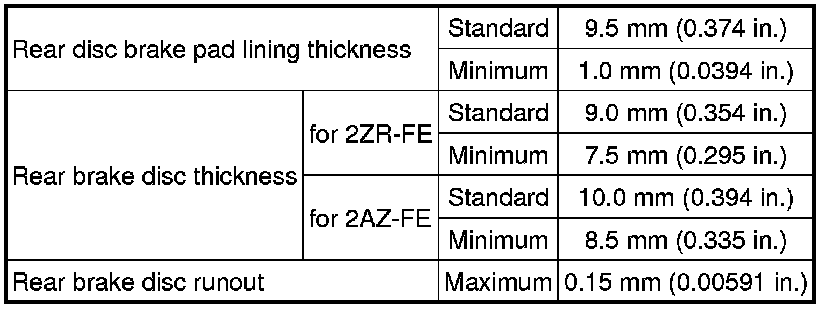

for Torsion Beam Type Suspension
