System Diagram
U140F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: SYSTEM DIAGRAM

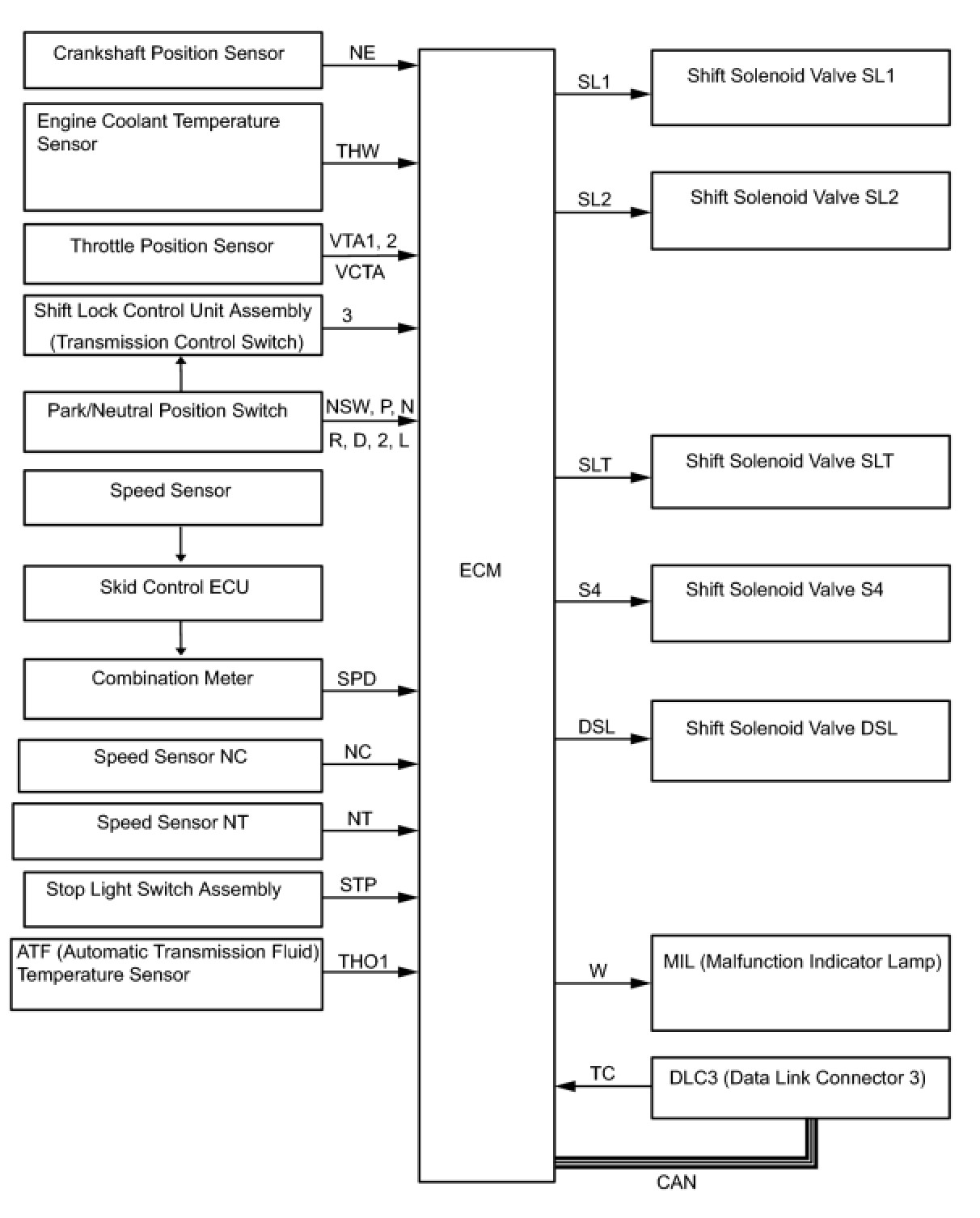

The configuration of the electronic control system in the U140F automatic transaxle is as shown in the following chart.
U140F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: SYSTEM DIAGRAM
The configuration of the electronic control system in the U140F automatic transaxle is as shown in the following chart.
