Trunk / Liftgate Lock: Testing and Inspection

DOOR LOCK: BACK DOOR LOCK: INSPECTION

1. INSPECT BACK DOOR LOCK ASSEMBLY

(a) Check the door lock motor.

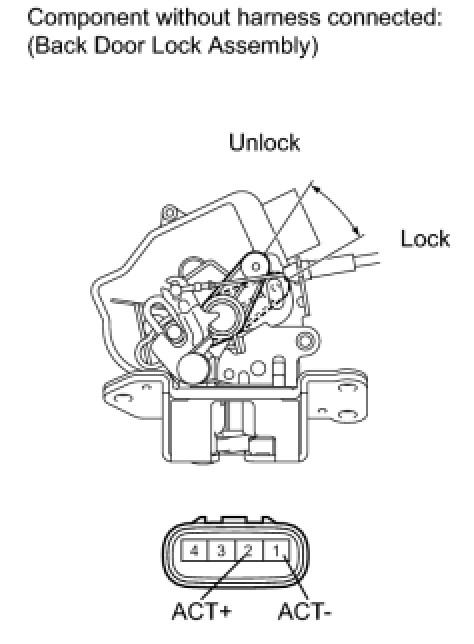

(1) Move the door lock to the lock position.





(2) Apply battery voltage to the door lock motor and check the operation of the door lock motor.

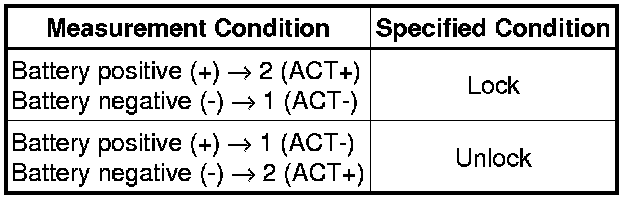

OK:





If the result is not specified, replace the back door lock.

(b) Check the door courtesy switch.

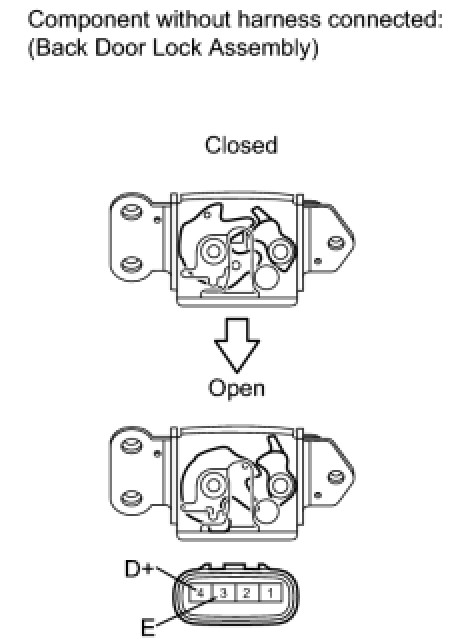

(1) Measure the resistance according to the value(s) in the table below.

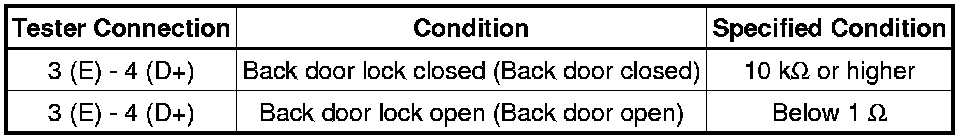

Standard Resistance:





If the result is not specified, replace the back door lock.
