Home >> Toyota >> 2012 >> Matrix AWD L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Locations

Power Locks: Locations

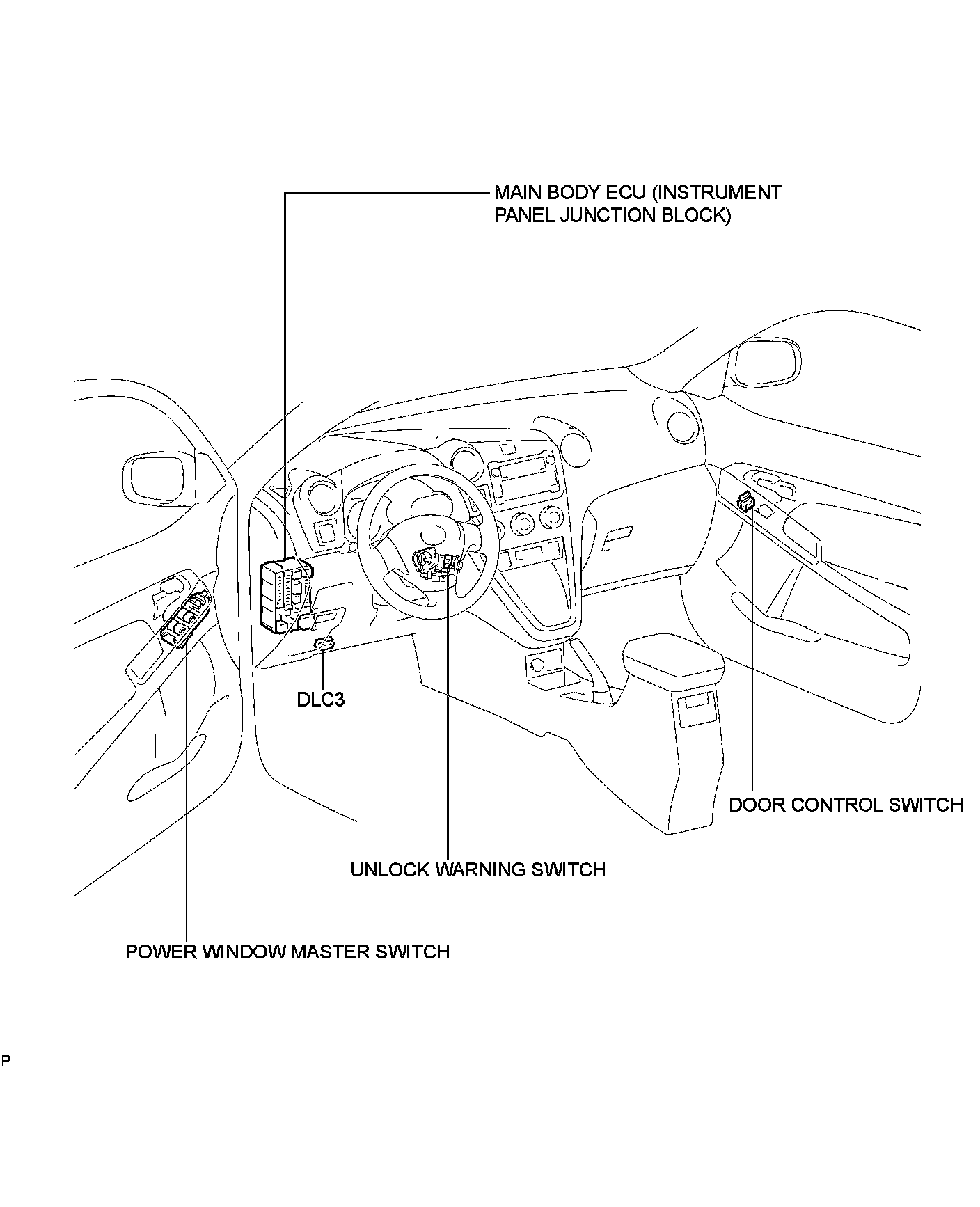

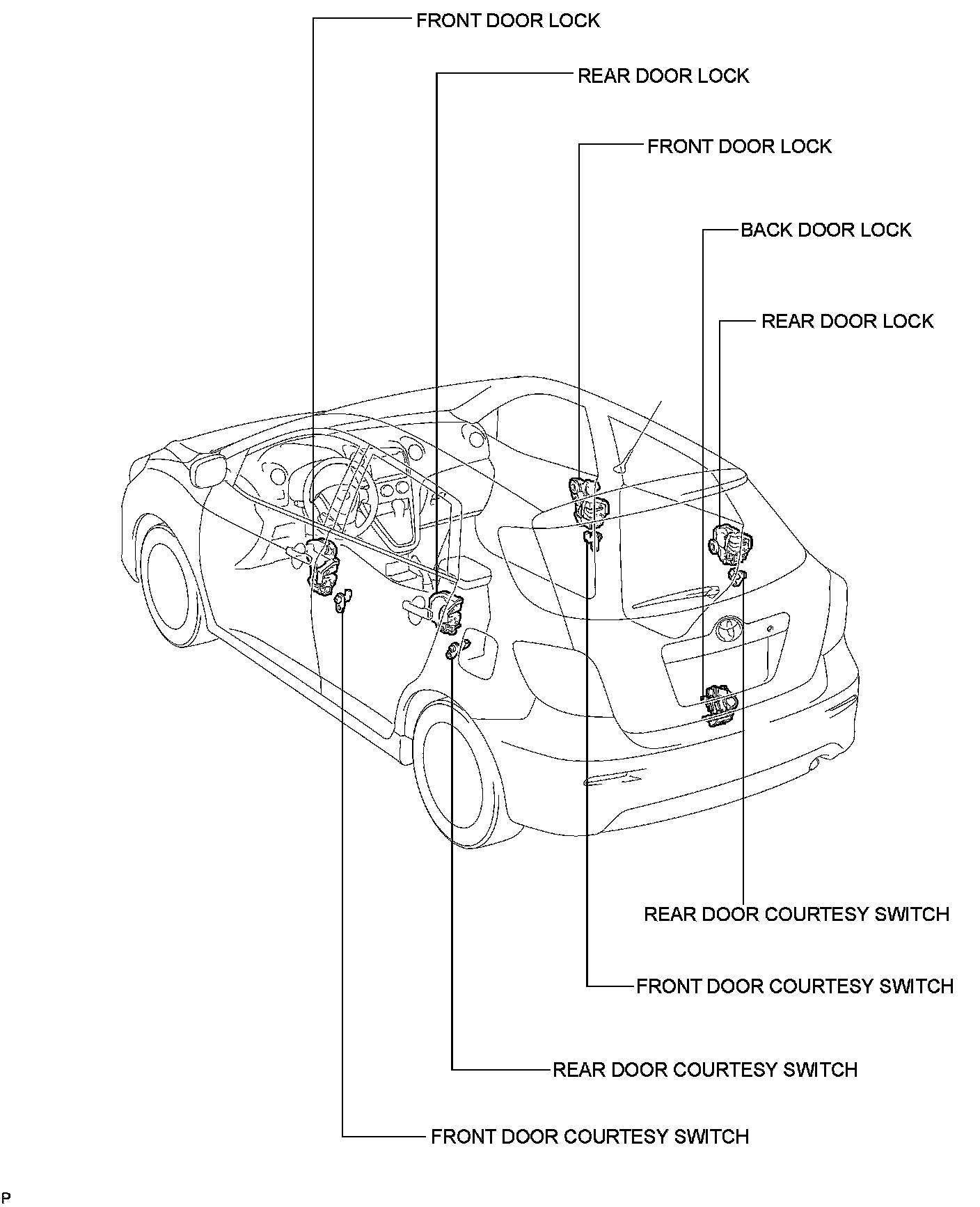

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: PARTS LOCATION
