Torque Specifications





SERVICE SPECIFICATIONS: 1AR-FE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

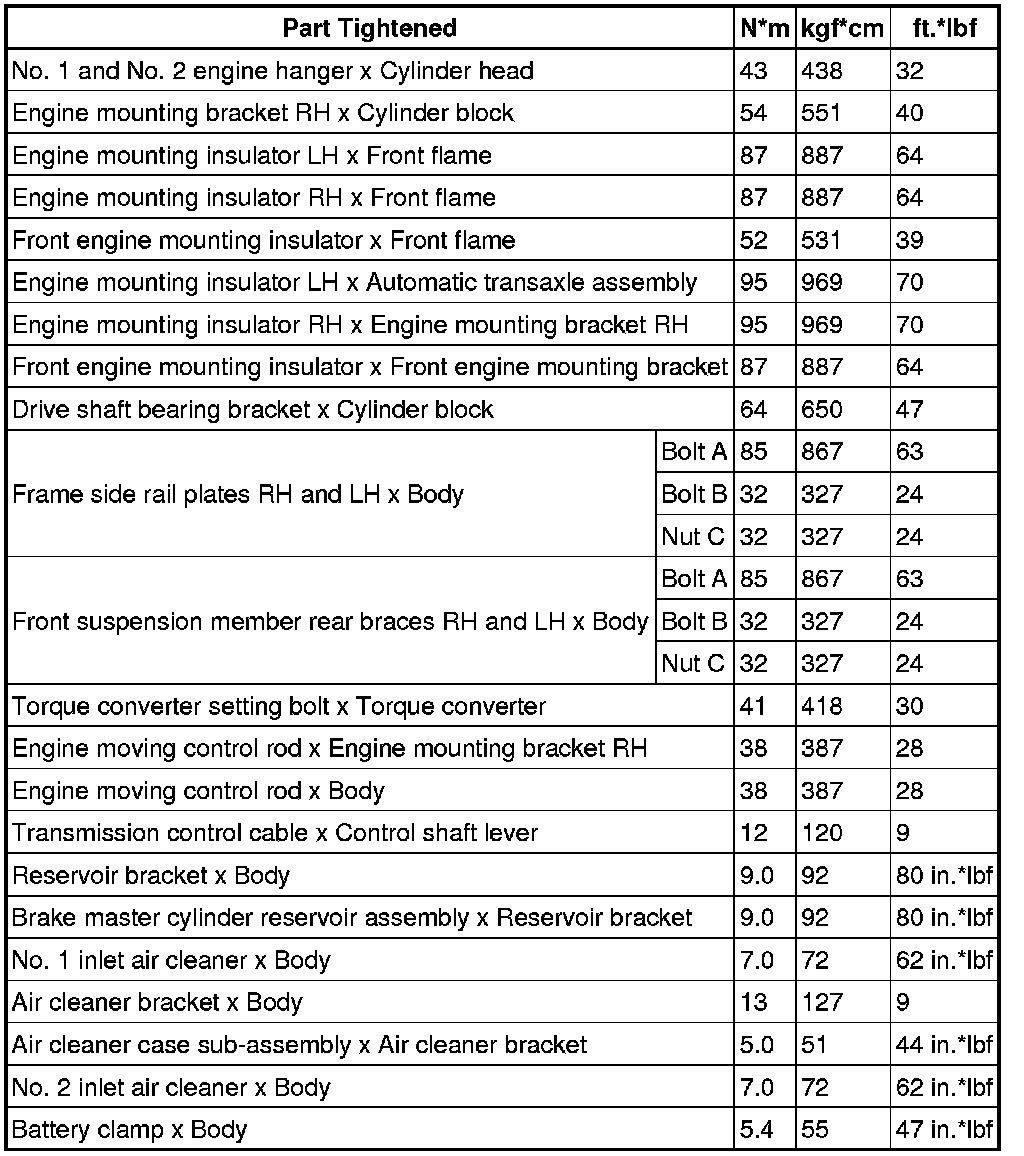

ENGINE






CAMSHAFT






CYLINDER HEAD GASKET






CYLINDER HEAD






CYLINDER BLOCK






ENGINE REAR OIL SEAL






ENGINE ASSEMBLY

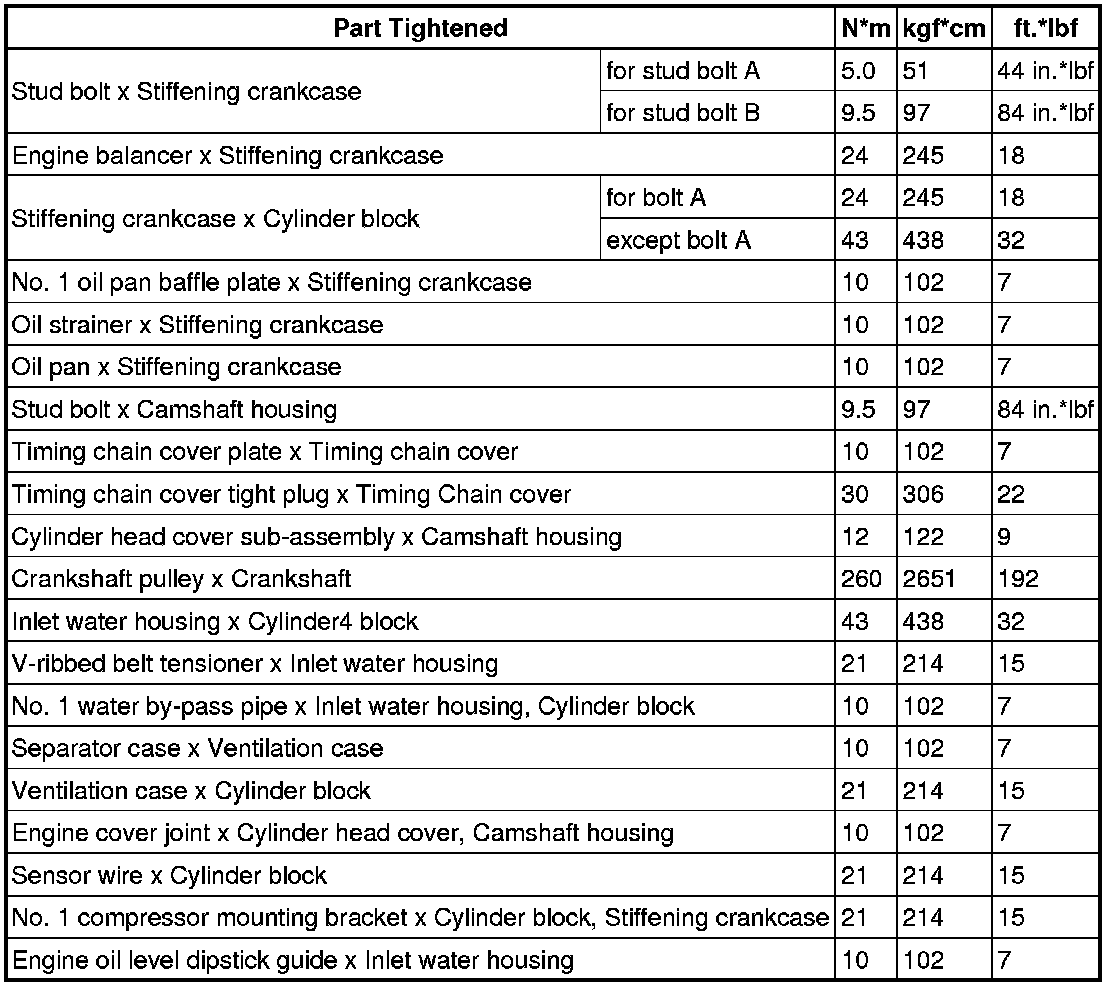

ENGINE UNIT
