Toyota
>>
2012
>>
Highlander 2WD L4-2.7L (1AR-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Specifications
>>
Electrical Specifications
Electrical Specifications

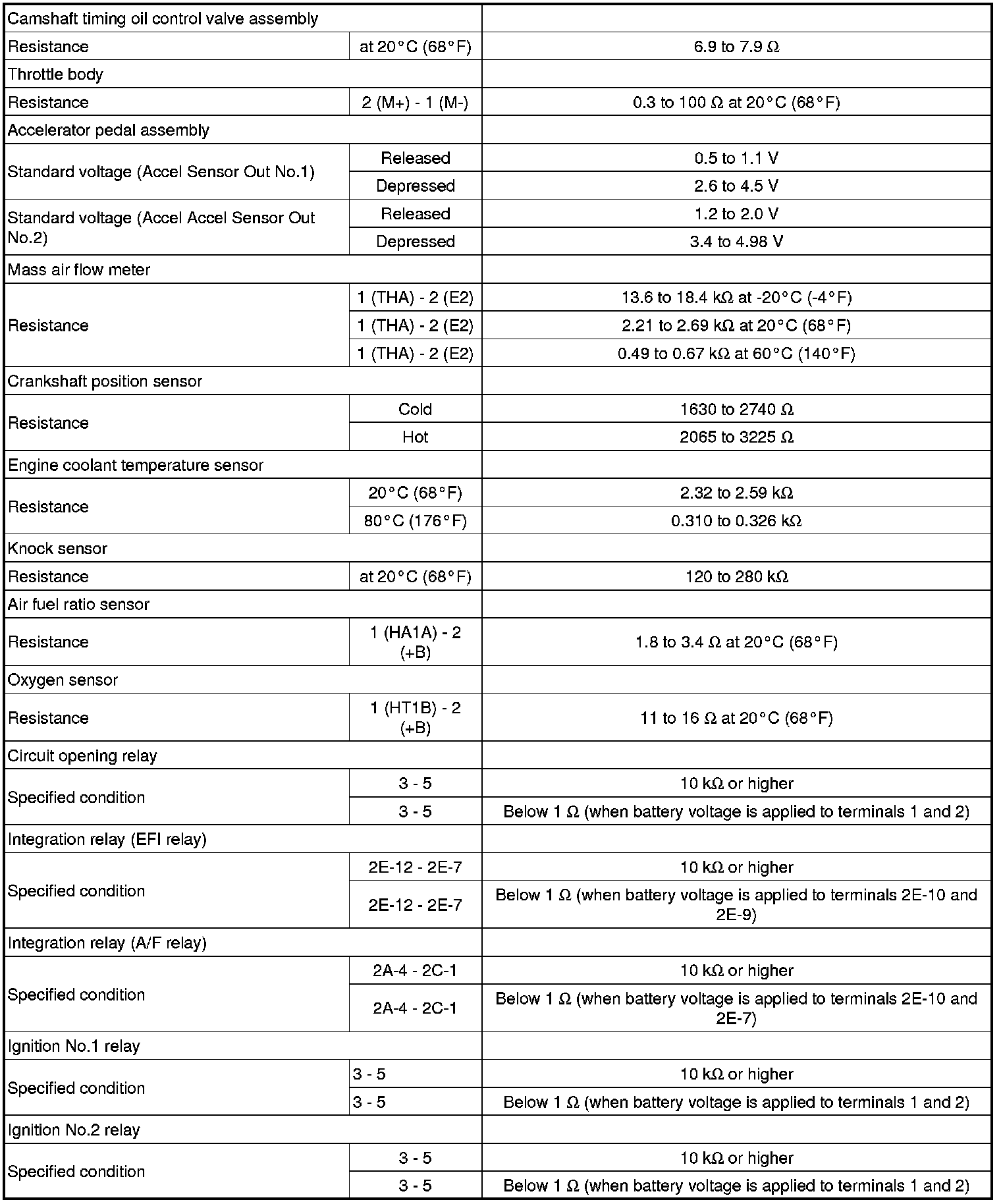

SERVICE SPECIFICATIONS: 1AR-FE ENGINE CONTROL SYSTEM: SERVICE DATA
