Installation

DOOR LOCK: WIRELESS DOOR LOCK BUZZER: INSTALLATION

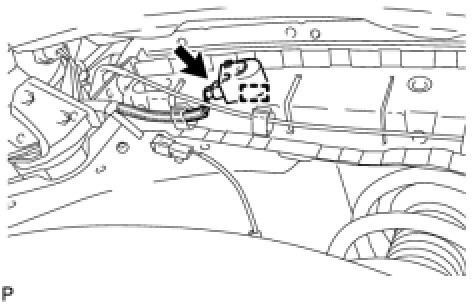

1. INSTALL WIRELESS DOOR LOCK BUZZER

(a) Connect the connector.





(b) Install the wireless door lock buzzer with the clamp.

2. INSTALL FRONT FENDER LINER LH Installation

3. INSTALL FRONT FENDER MOULDING SUB-ASSEMBLY LH Installation

4. INSTALL NO. 1 ENGINE UNDER COVER

5. INSTALL ENGINE UNDER COVER ASSEMBLY (for 2GR-FE) Installation
