Combination Meter: Disassembly: Disassembly

  1. REMOVE COMBINATION METER GLASS

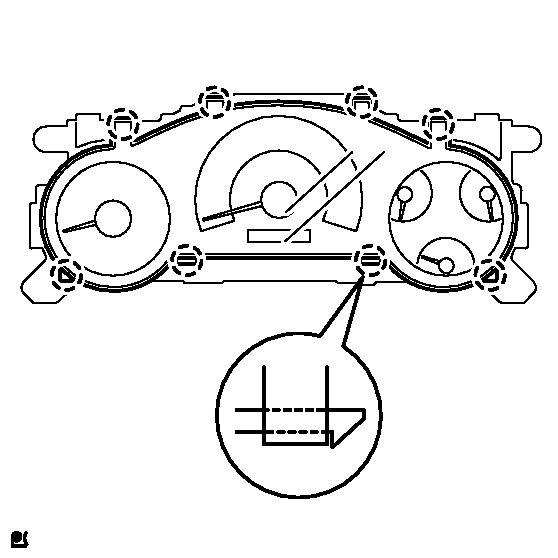

    Fig 1: Identifying Combination Meter Glass Claws
    GTY174015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the 8 claws and remove the combination meter glass.
