Front Power Seat Control System (Inspection)
>>
Front Power Seat Control System
>>
System Diagram
>>
System Diagram
System Diagram

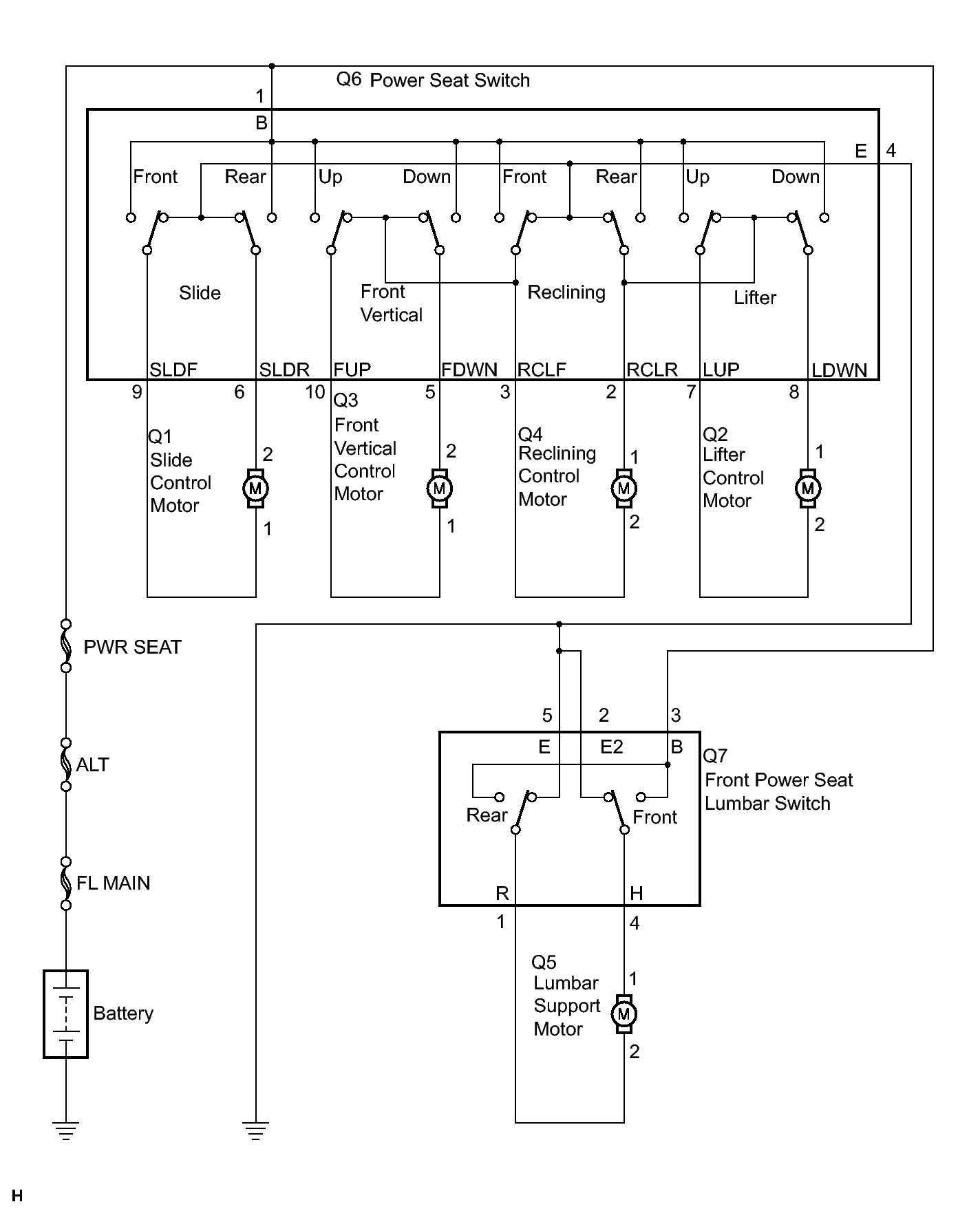

Fig 1: Front Power Seat Control System Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
