Removal

HEATING / AIR CONDITIONING: SOLAR SENSOR: REMOVAL

1. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY

Removal

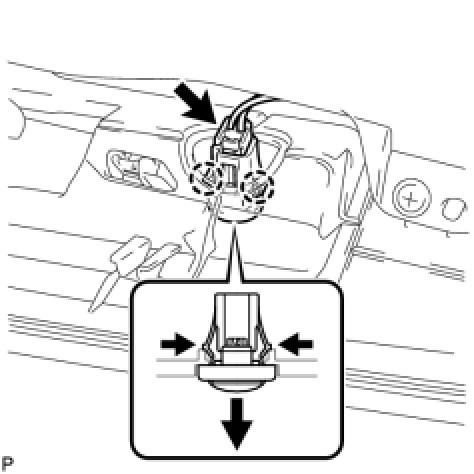

2. REMOVE SOLAR SENSOR

(a) Disconnect the connector.





(b) Disengage the 2 claws and remove the solar sensor.
