Installation

U660E AUTOMATIC TRANSMISSION / TRANSAXLE: TCM: INSTALLATION

1. INSTALL TCM

(a) Install the TCM to the automatic transaxle assembly.

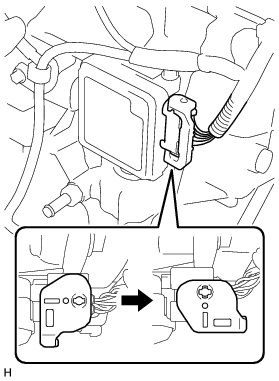

(b) Install and tighten the 2 bolts in the order shown in the illustration.





Torque : 11 Nm (115 kgf-cm, 8 ft-lbf)

(c) Connect the connector to the TCM.





(d) Turn the lock lever and secure the connector with the lock lever.

2. INSTALL INLET NO. 1 AIR CLEANER Installation

3. INSTALL BATTERY TRAY

4. INSTALL BATTERY Installation

5. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation

6. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

7. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation

8. INSTALL INLET NO. 2 AIR CLEANER Installation

9. INSTALL COOL AIR INTAKE DUCT SEAL Installation

10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

11. CHECK AUTOMATIC TRANSAXLE SYSTEM

NOTICE:
If automatic transmission parts have been replaced, refer to Parts Replacement Compensation Table to determine if any additional operations are necessary Service Precautions.
