System Specifications





SPECIFICATIONS: 2GR-FE INTAKE / EXHAUST: TORQUE SPECIFICATIONS

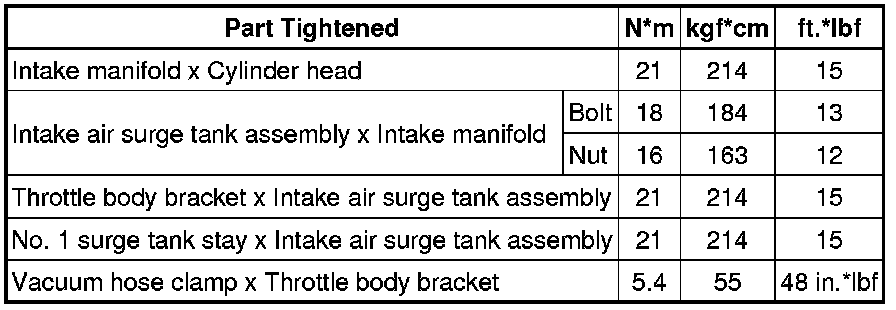

INTAKE MANIFOLD





VACUUM SWITCHING VALVE (for Intake Air Control System)

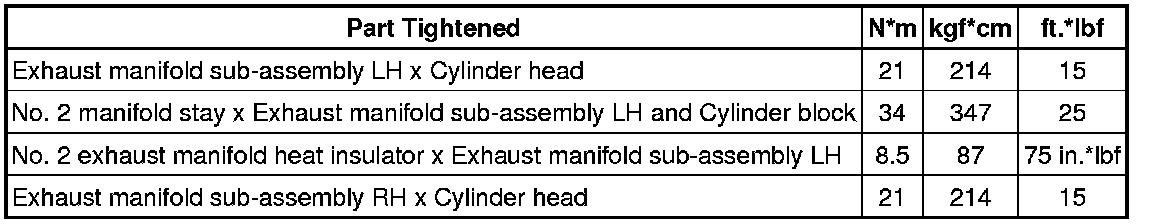

EXHAUST MANIFOLD

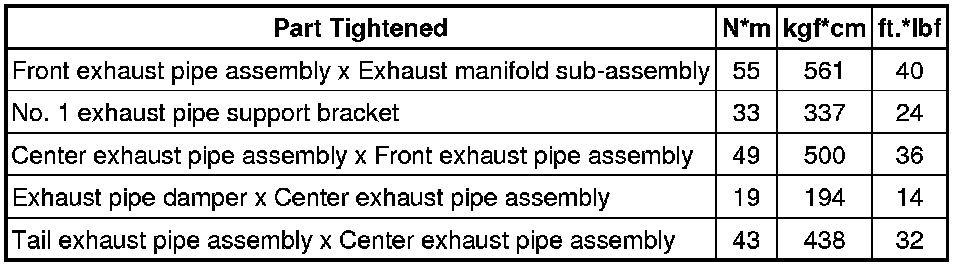

EXHAUST PIPE
