2GR-FE ENGINE CONTROL: INTEGRATION RELAY: INSPECTION

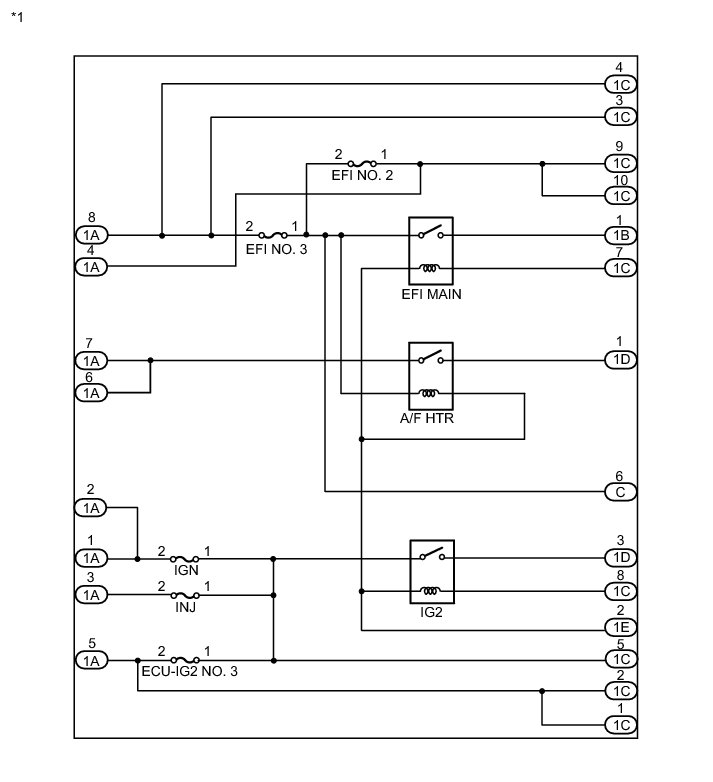

1. INSPECT NO. 1 INTEGRATION RELAY





Text in Illustration

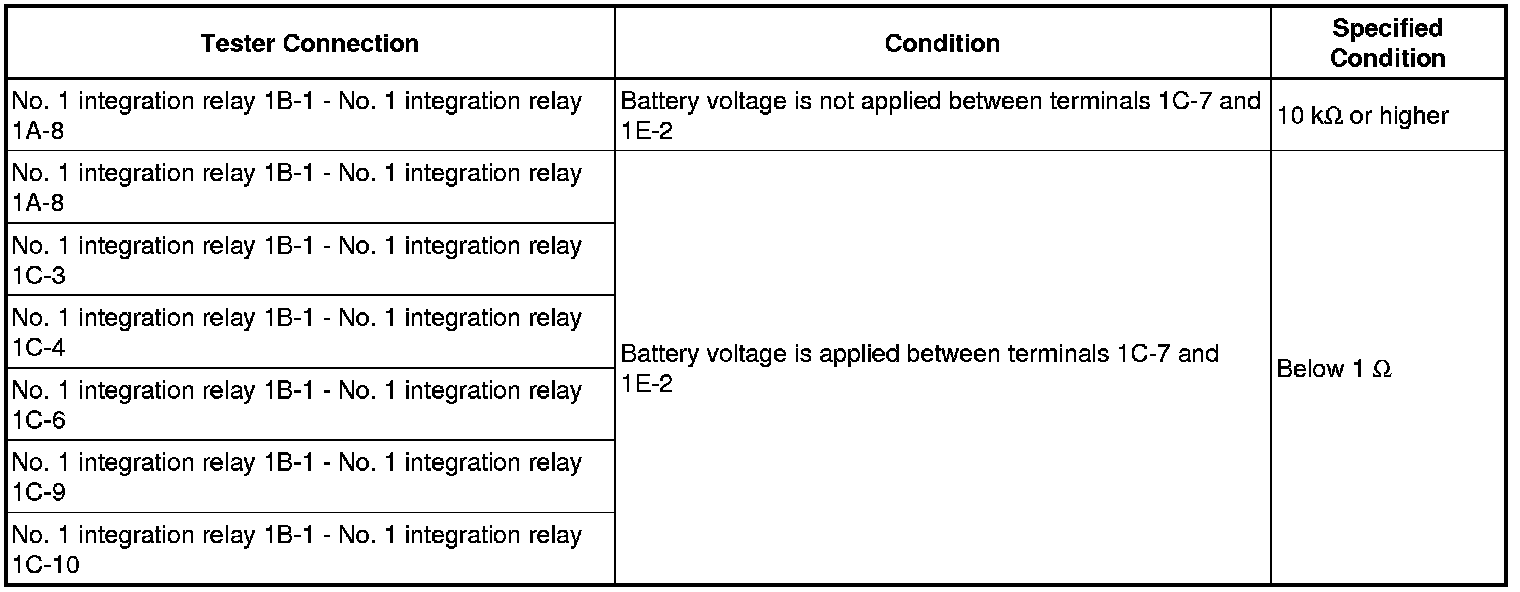

(a) EFI MAIN RELAY:

(1) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





If the resistance is not as specified, replace the No. 1 integration relay.

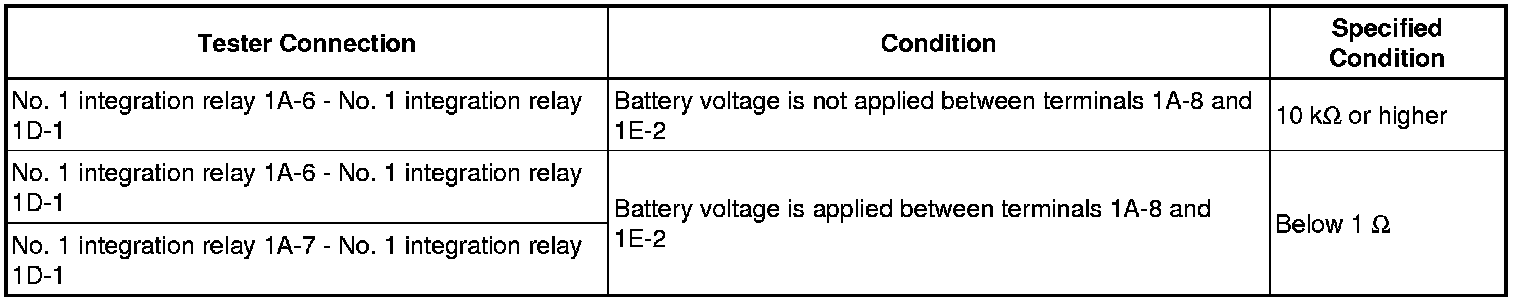

(b) A/F HTR RELAY:

(1) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





If the resistance is not as specified, replace the No. 1 integration relay.

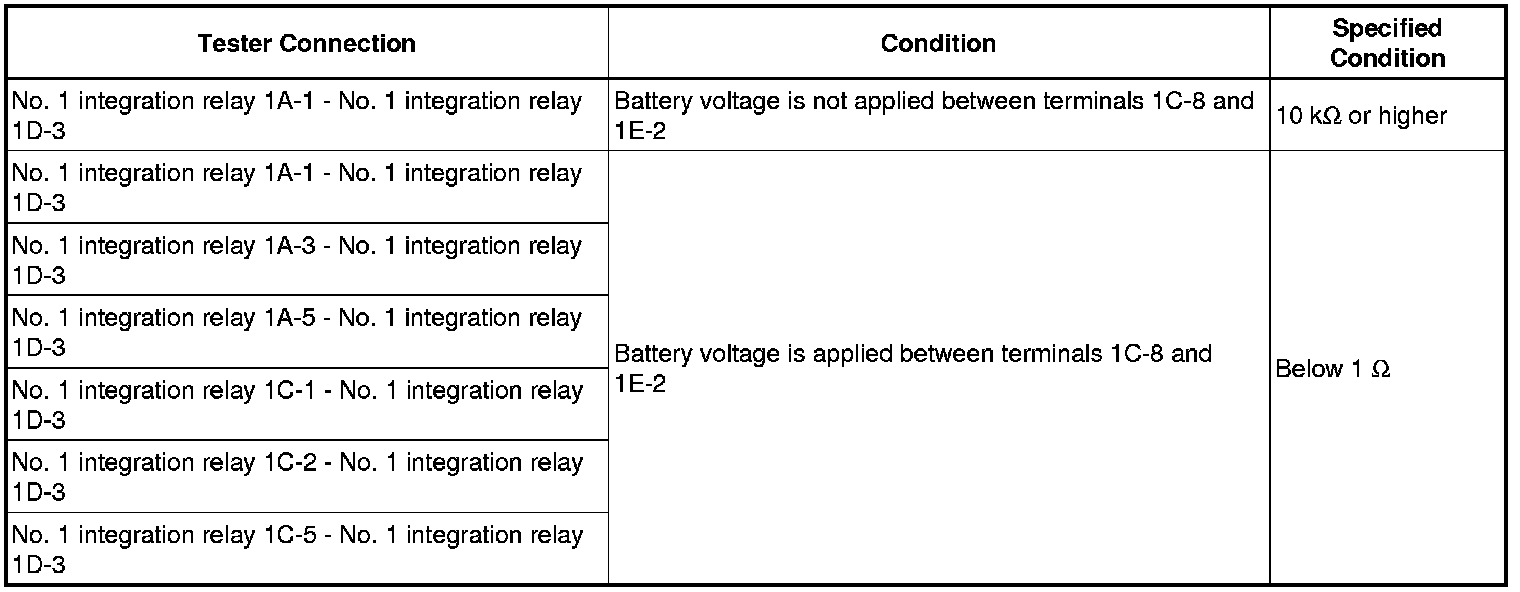

(c) IG2 RELAY:

(1) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





If the resistance is not as specified, replace the No. 1 integration relay.
