Toyota
>>
2012
>>
Camry L4-2.5L (2AR-FE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Service and Repair
>>
Components
Components

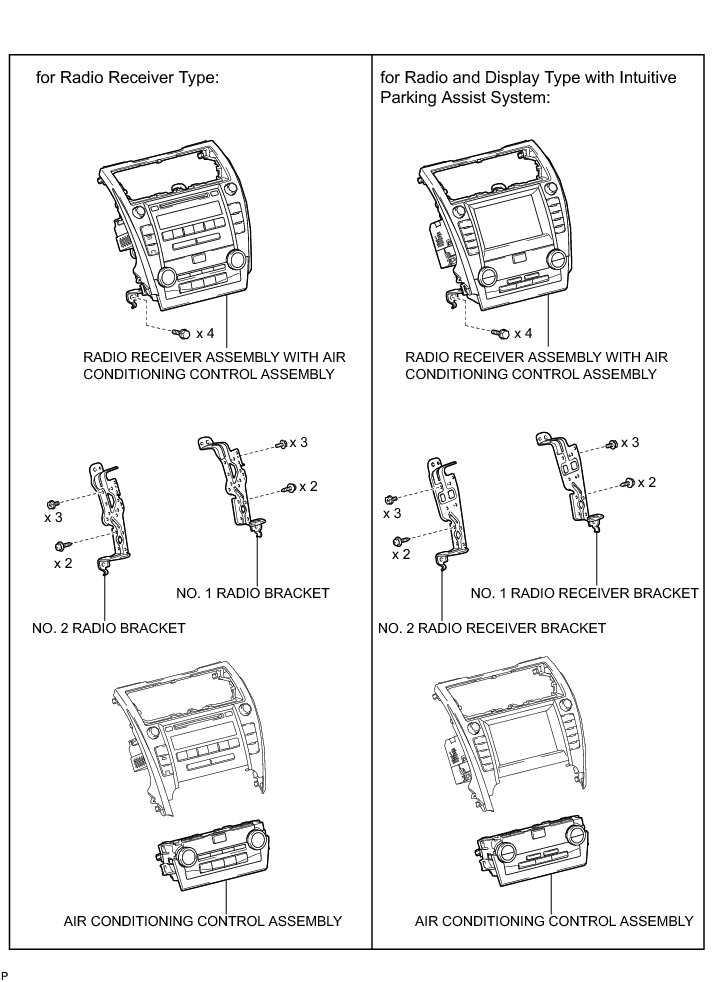

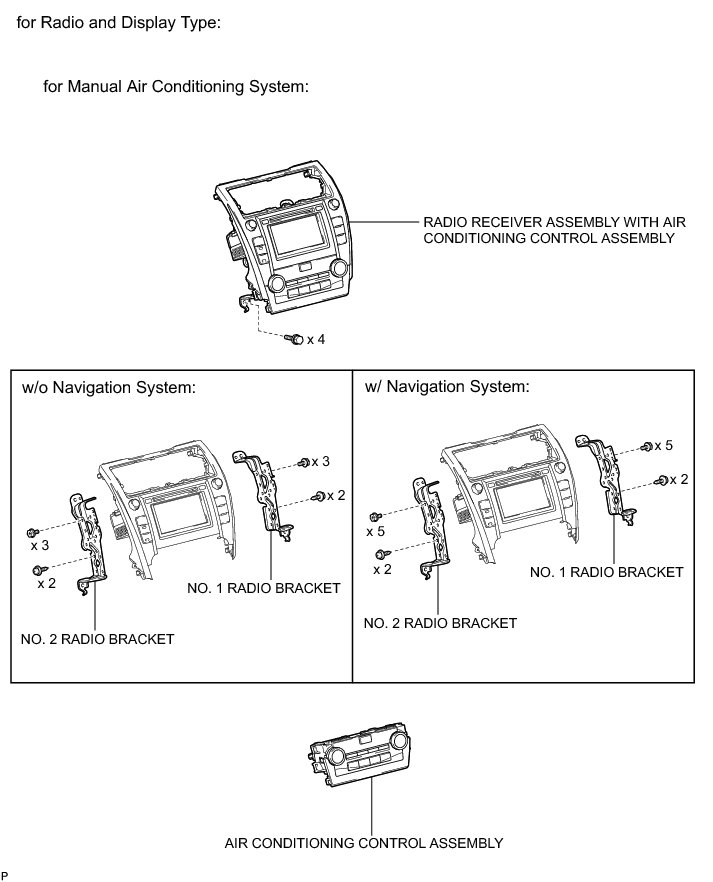

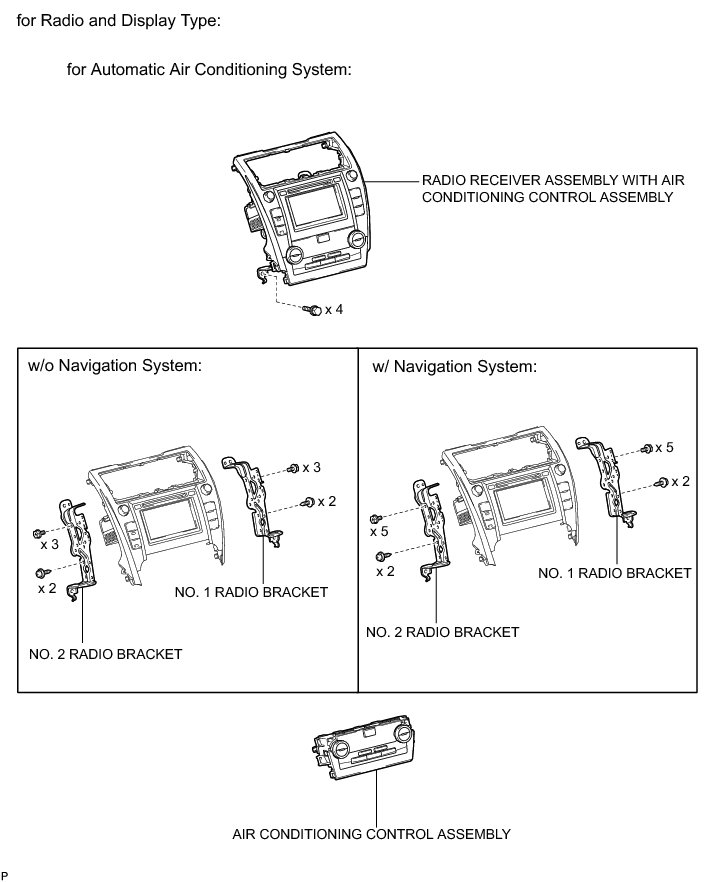

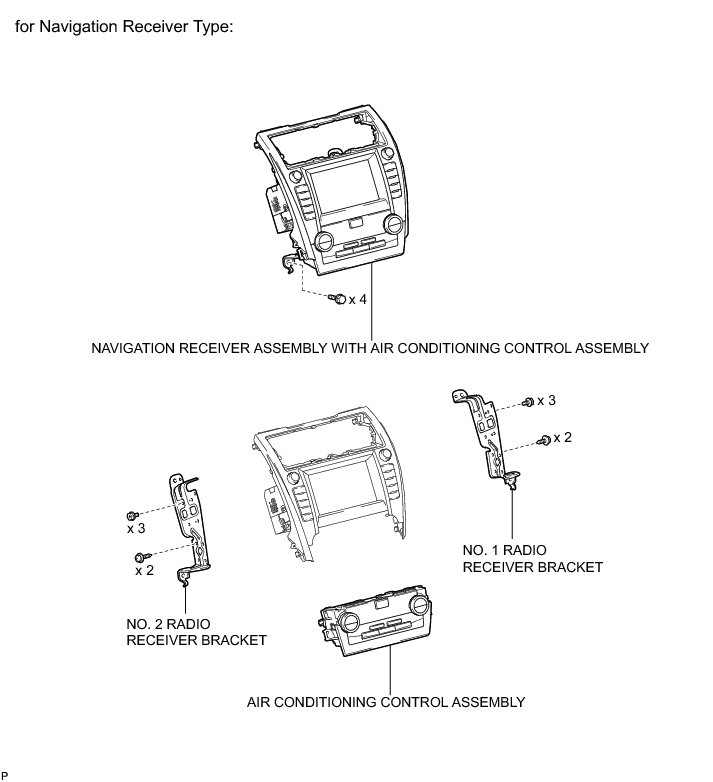

HEATING / AIR CONDITIONING: AIR CONDITIONING PANEL: COMPONENTS
