Repair and Diagnosis
>>
Engine Mechanical
>>
Starter
>>
Starting System (Inspection)
>>
Starting System
>>
System Diagram
>>
System Diagram
System Diagram

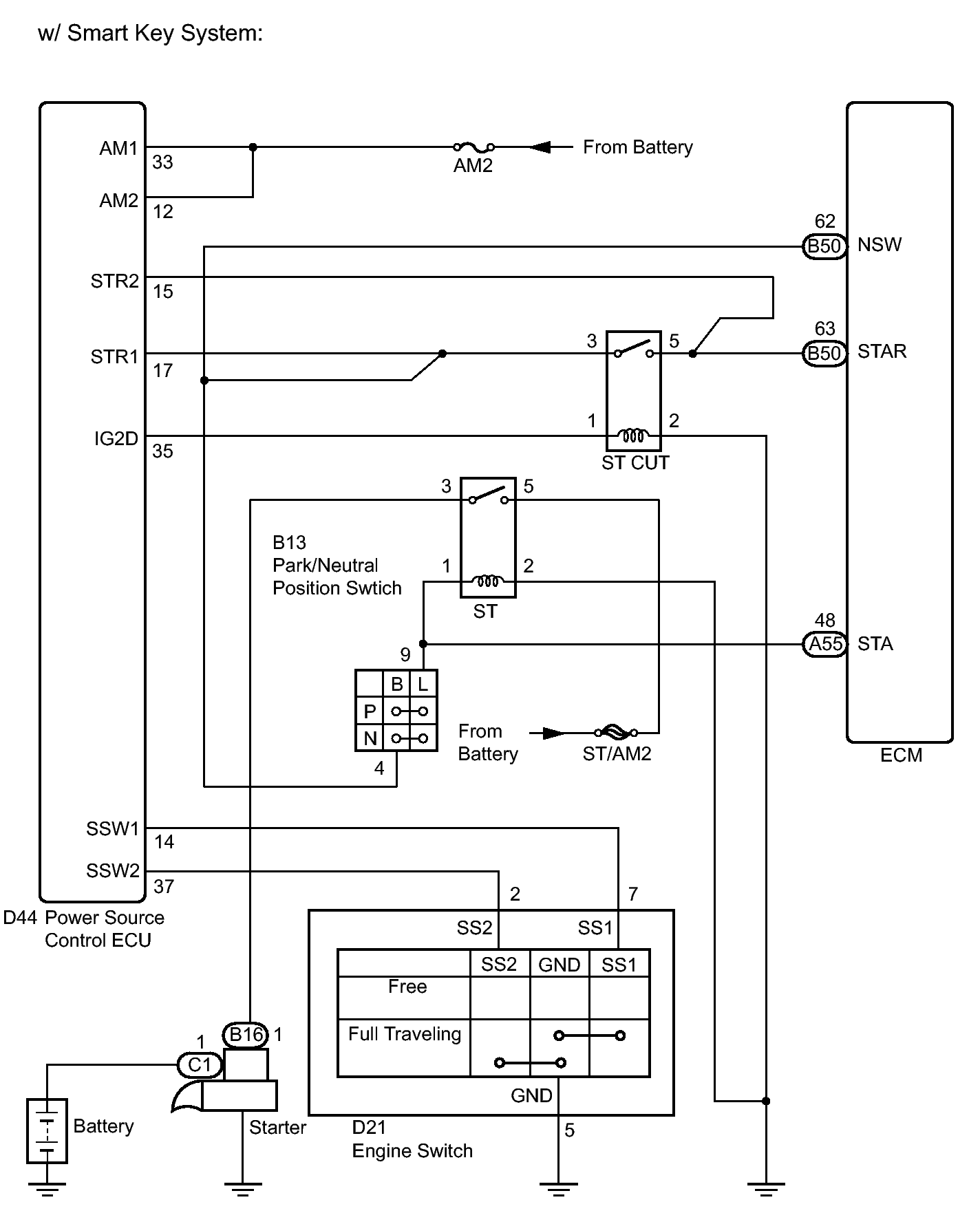

Fig 1: View Of Starting System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

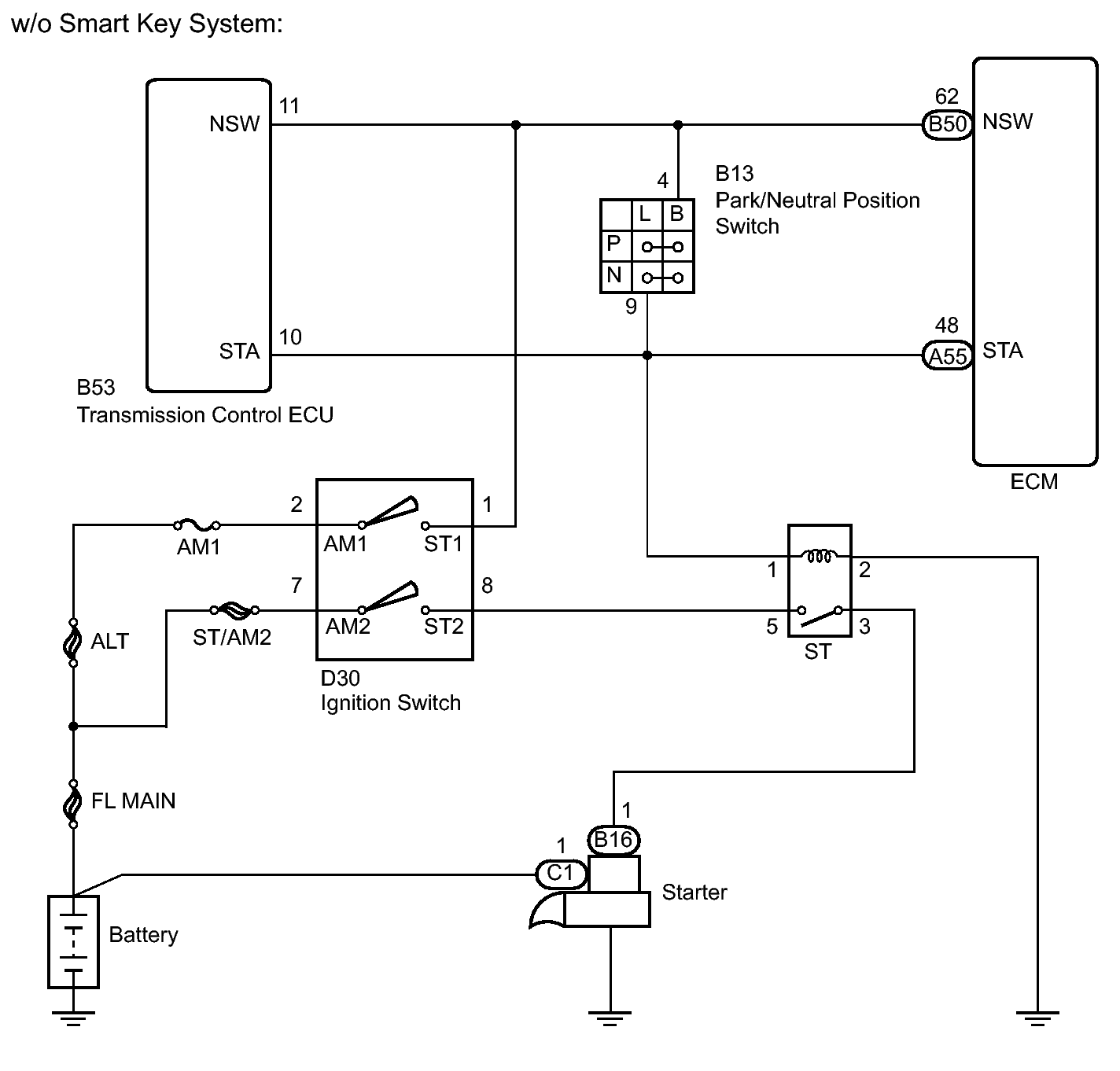

Fig 2: View Of Starting System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
