Front Stabilizer Bar: Installation: Installation
- INSTALL FRONT NO. 1 STABILIZER BAR BUSH LH
- Install the bush.
HINT:

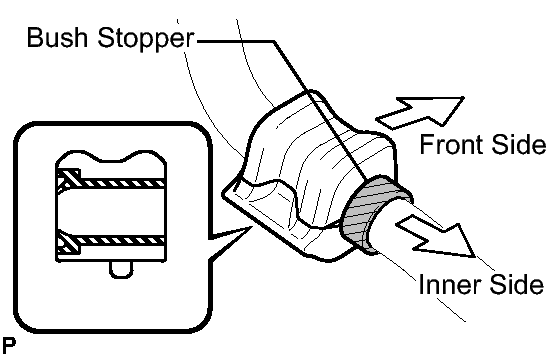

- Install each bush to the inner side of each bush stopper on the stabilizer bar.
- Install each bush with its slit facing the vehicle rear side.
- Install the bush.
- REMOVE FRONT NO. 1 STABILIZER BAR BUSH RH
HINT:
Use the same procedures described for the LH side.
- INSTALL FRONT STABILIZER BAR
- Install the stabilizer bar to the crossmember.
- INSTALL FRONT SUSPENSION MEMBER BRACE FRONT LH
- Install the member brace with the 4 bolts to the suspension member.
Torque: 87 N*m (887 kgf*cm, 64 ft.*lbf)
- Install the member brace with the 4 bolts to the suspension member.
- INSTALL FRONT SUSPENSION MEMBER BRACE FRONT RH
HINT:
Use the same procedures described for the LH side.
- INSTALL FRONT STABILIZER LINK ASSEMBLY LH
- Install the link with the 2 nuts.
Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)
- Install the link with the 2 nuts.
- INSTALL FRONT STABILIZER LINK ASSEMBLY RH
HINT:
Use the same procedures described for the LH side.
- INSTALL FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
