Service Data
SERVICE SPECIFICATIONS: U140F AUTOMATIC TRANSAXLE: SERVICE DATA

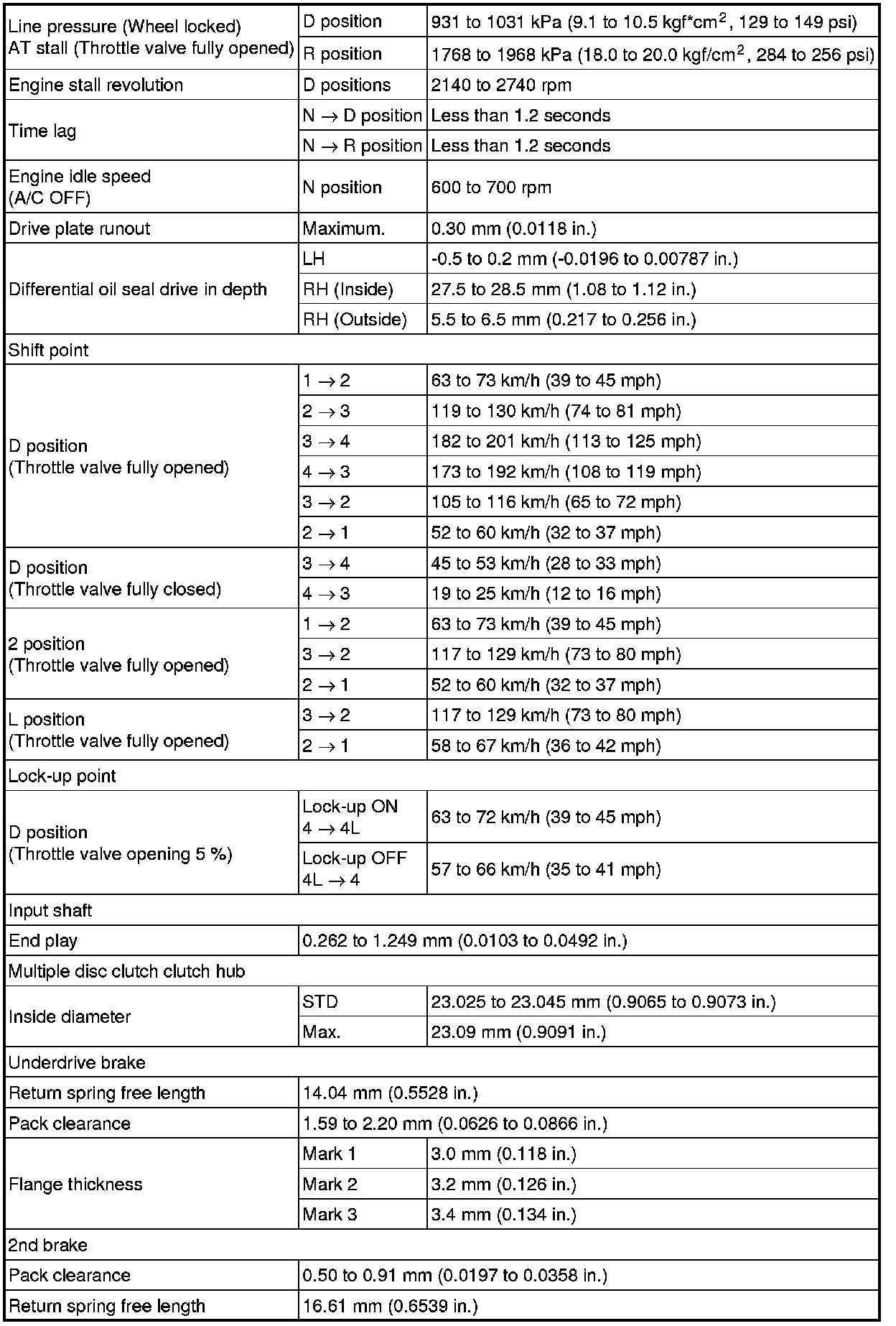

Automatic Transaxle Assembly

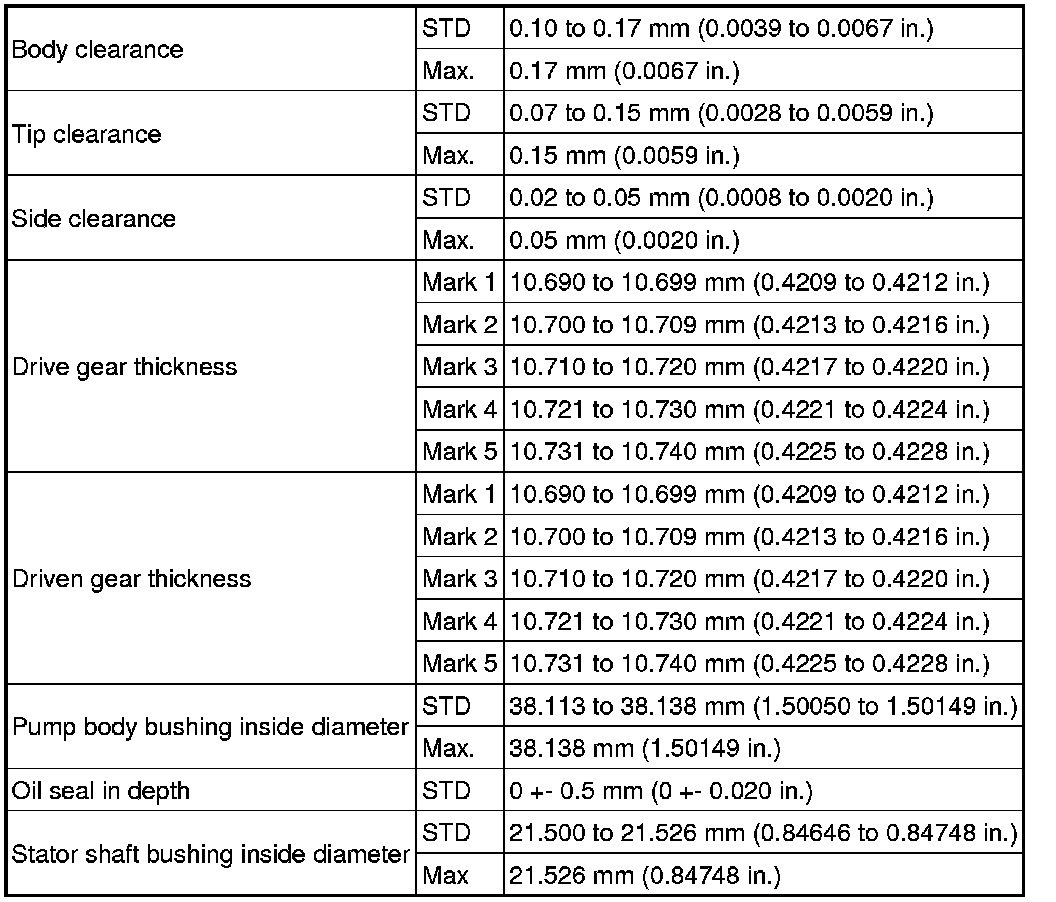

Oil Pump

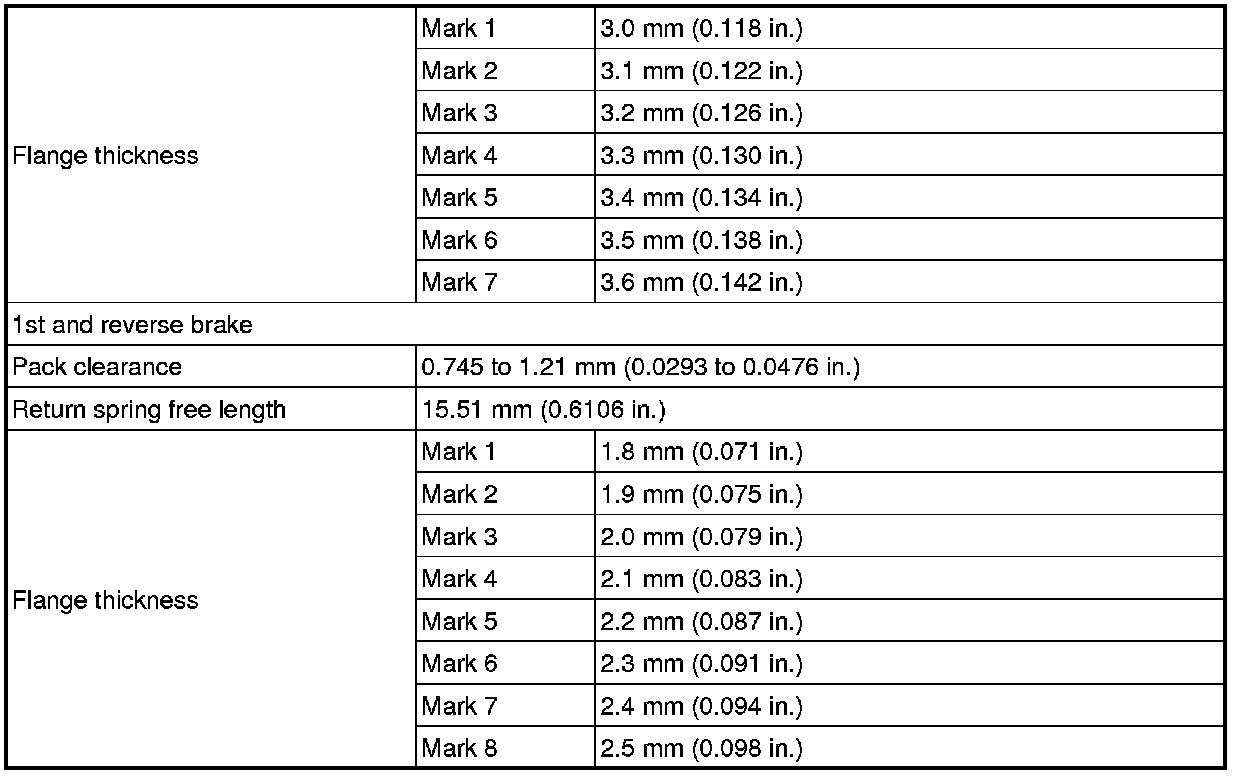

Second Brake Piston

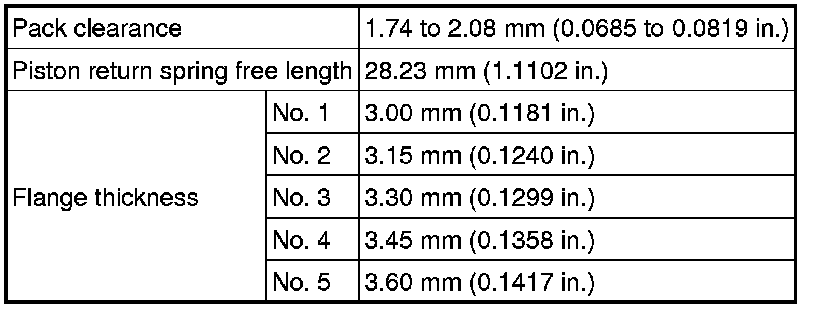

Forward Clutch

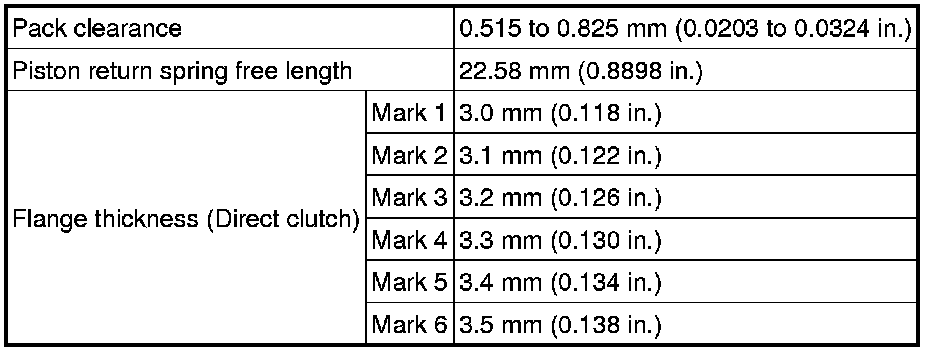

Direct Clutch
Underdrive Planetary Gear

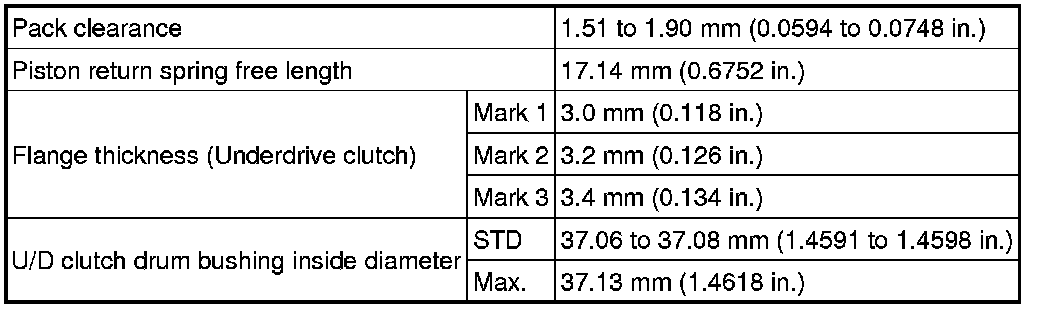

Underdrive Clutch

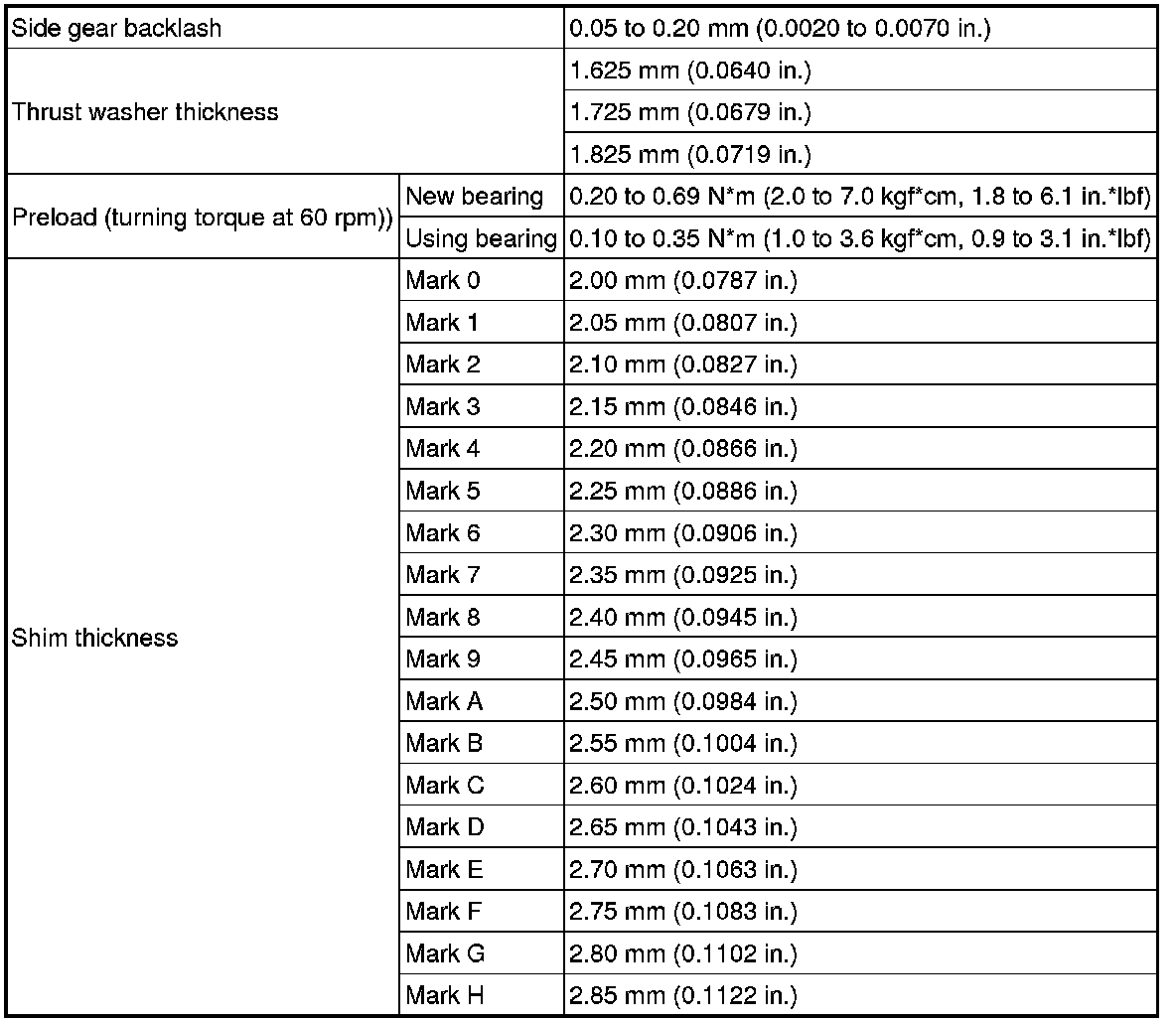

Differential
SERVICE SPECIFICATIONS: U140F AUTOMATIC TRANSAXLE: SERVICE DATA
Automatic Transaxle Assembly
Oil Pump
Second Brake Piston
Forward Clutch
Direct Clutch
Underdrive Planetary Gear
Underdrive Clutch
Differential
