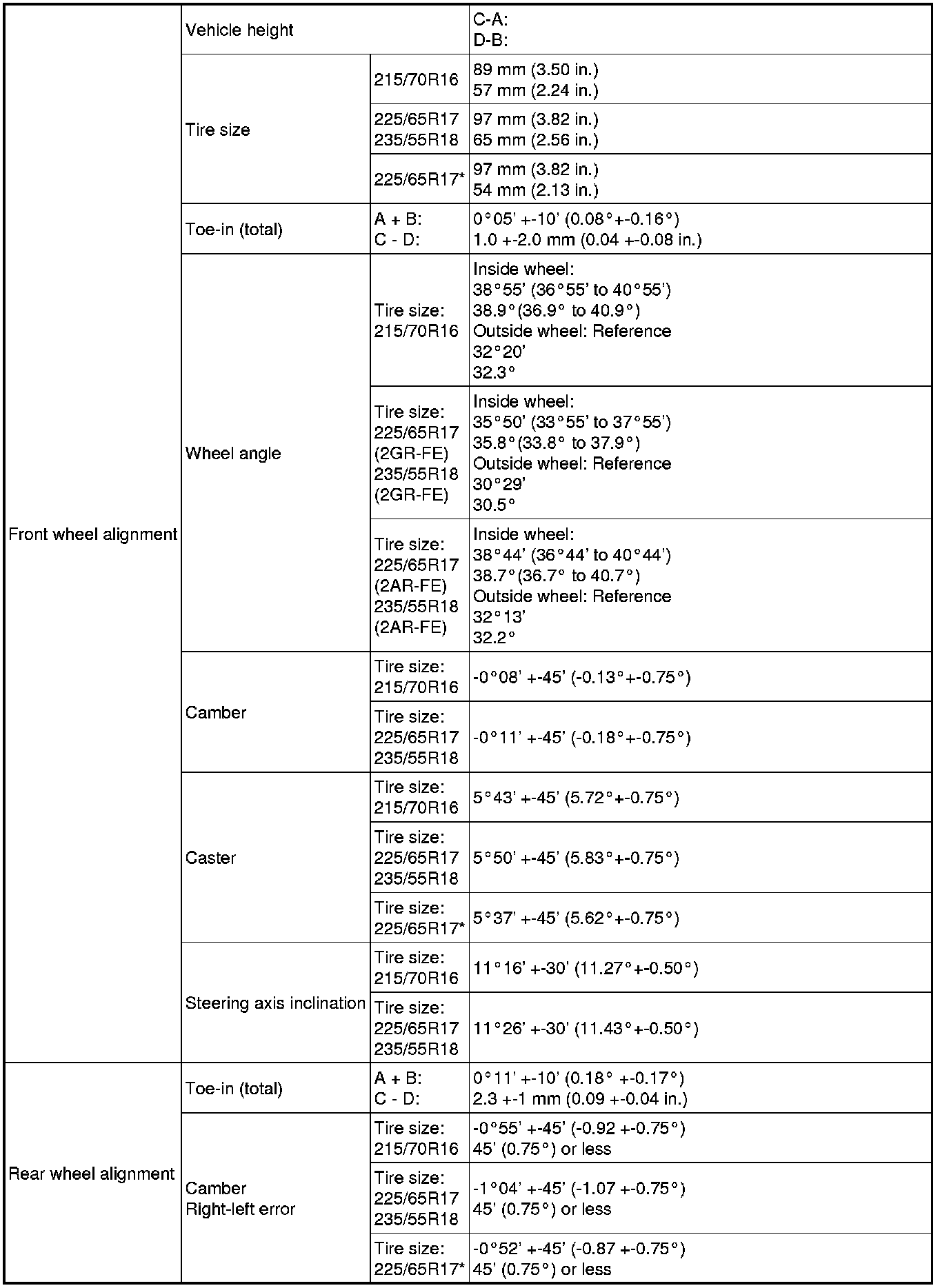

Alignment

SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA










*: w/ 3rd seat.

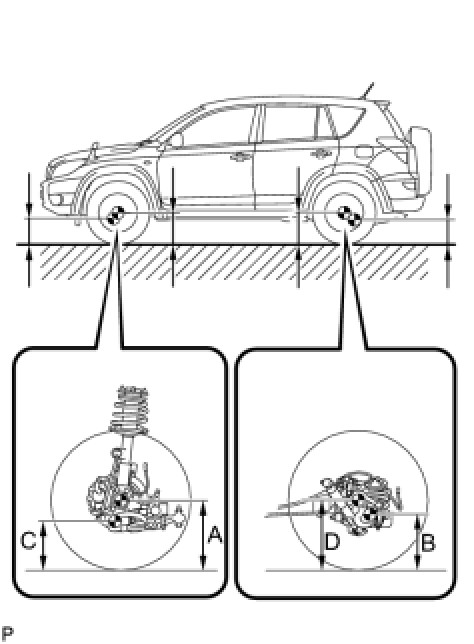

Vehicle Height






Measure the front vehicle height.

Measure the distance from the ground to the center of the lower suspension arm front mounting bolt.

Measure the rear vehicle height.

Measure the distance from the ground to the center of the body side No. 2 suspension arm mounting bolt.

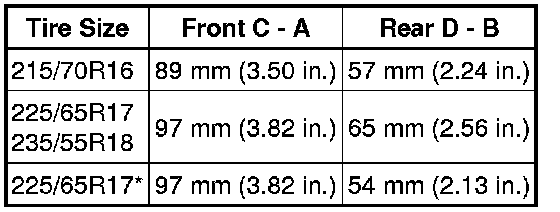

Standard vehicle height (unloaded vehicle):
