Fuse Block

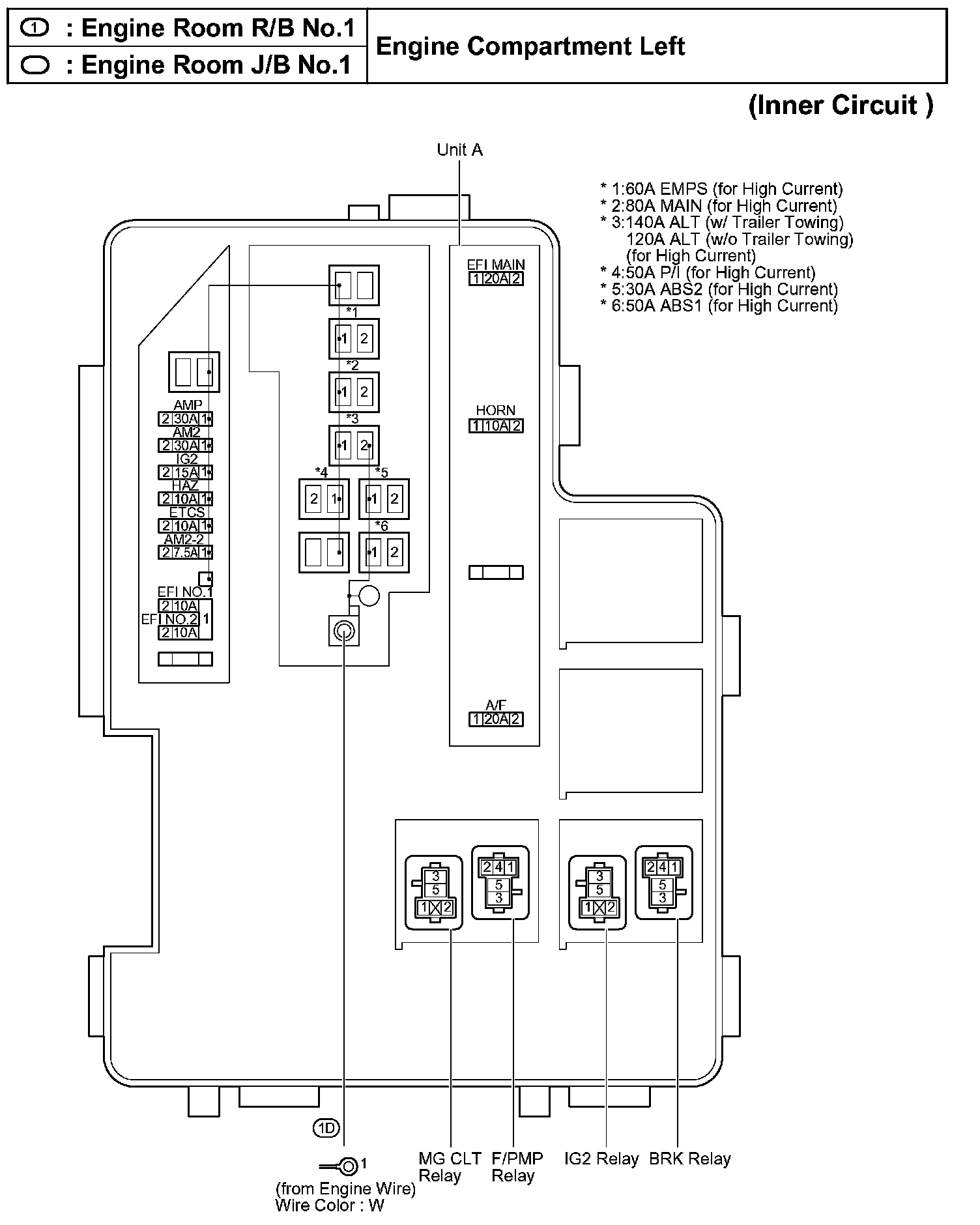

Engine Room R/B No.1, J/B No.1 - Engine Compartment Left:

Engine Room R/B No.1, J/B No.1 - Engine Compartment Left:

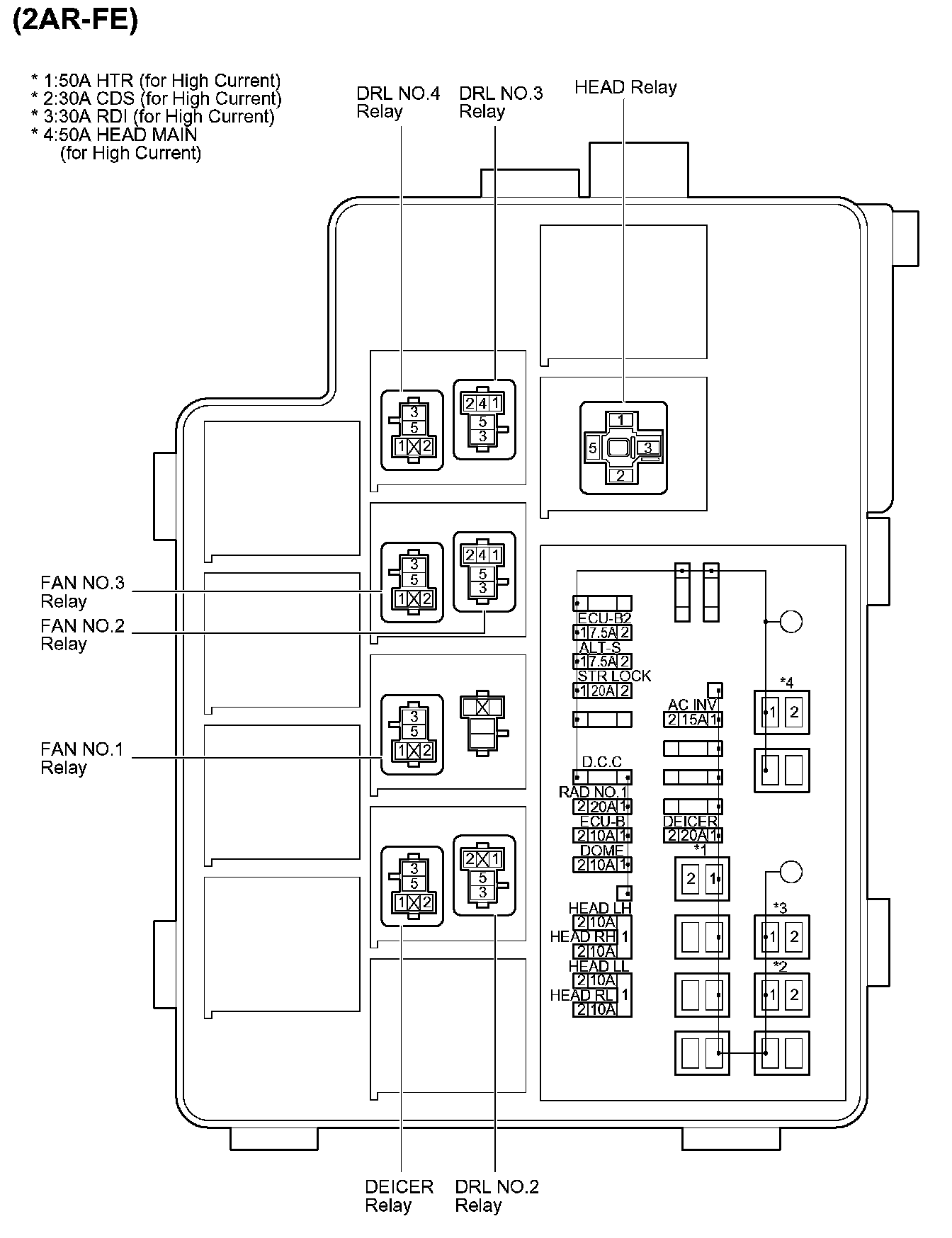

Engine Room R/B No.2 - Engine Compartment Right:

Instrument Panel J/B - Cowl Side Left:

Instrument Panel J/B - Cowl Side Left:

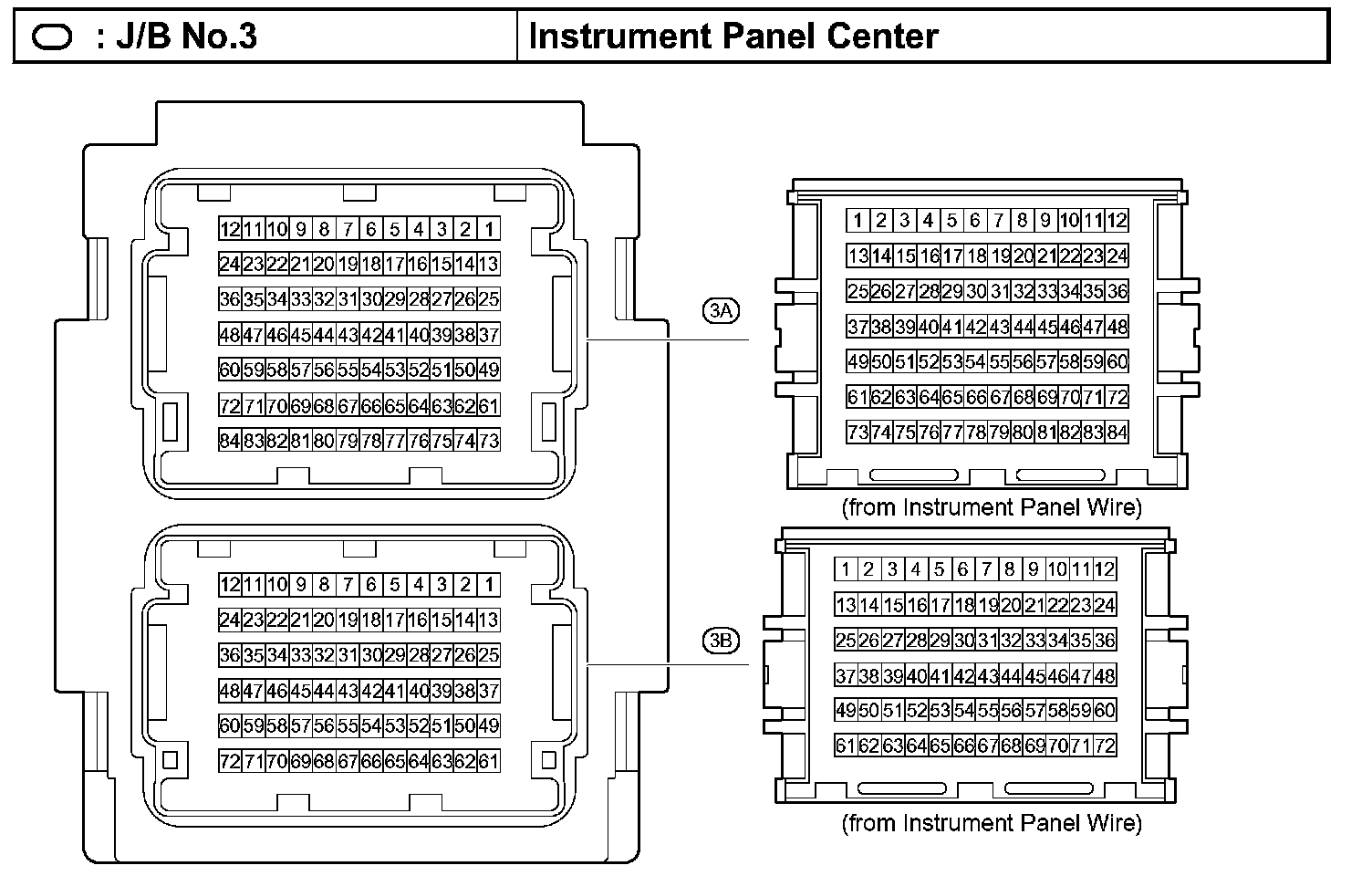

J/B No.3 - Instrument Panel Center:

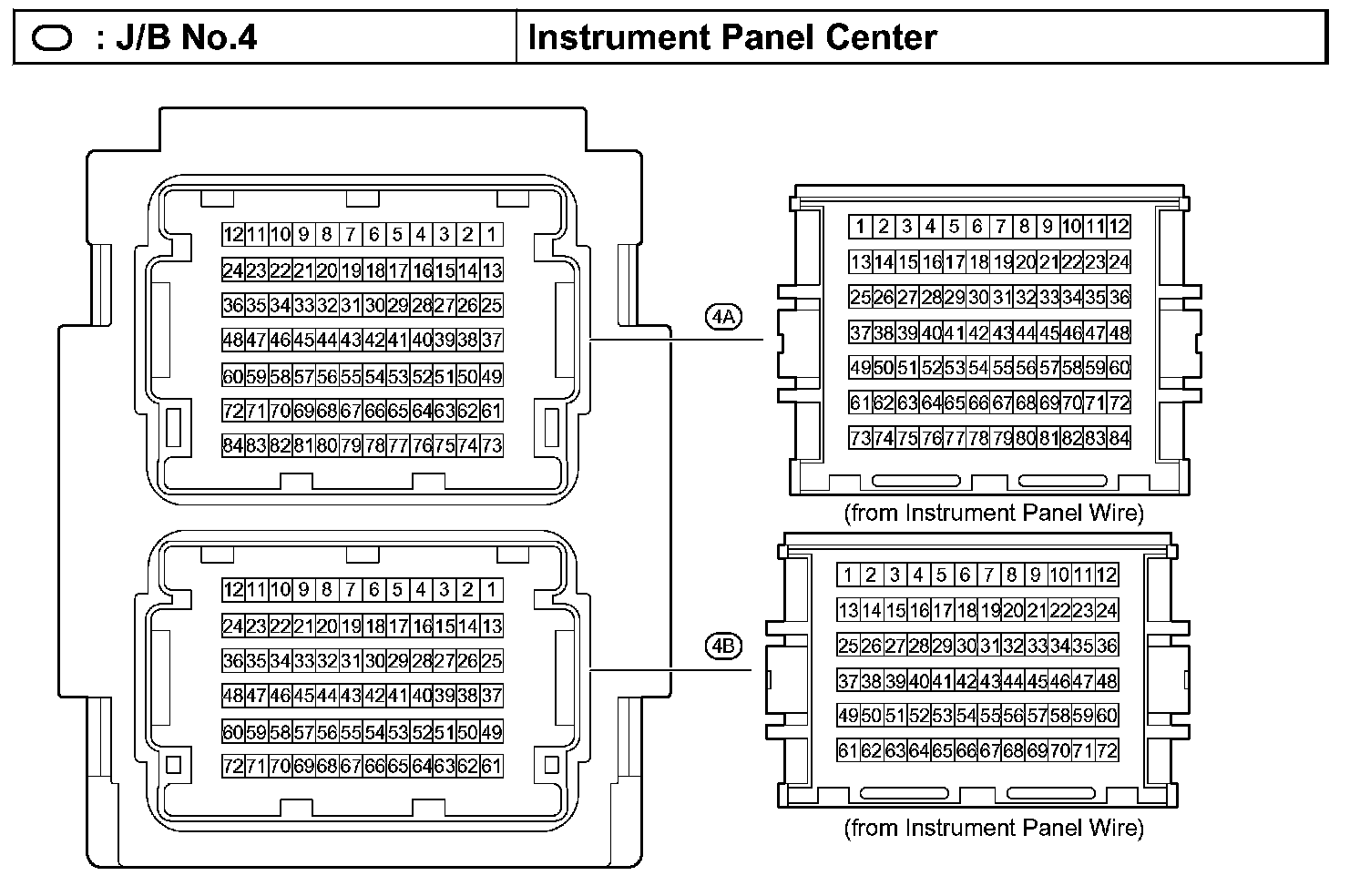

J/B No.4 - Instrument Panel Center:
