Parts Location: Illustration

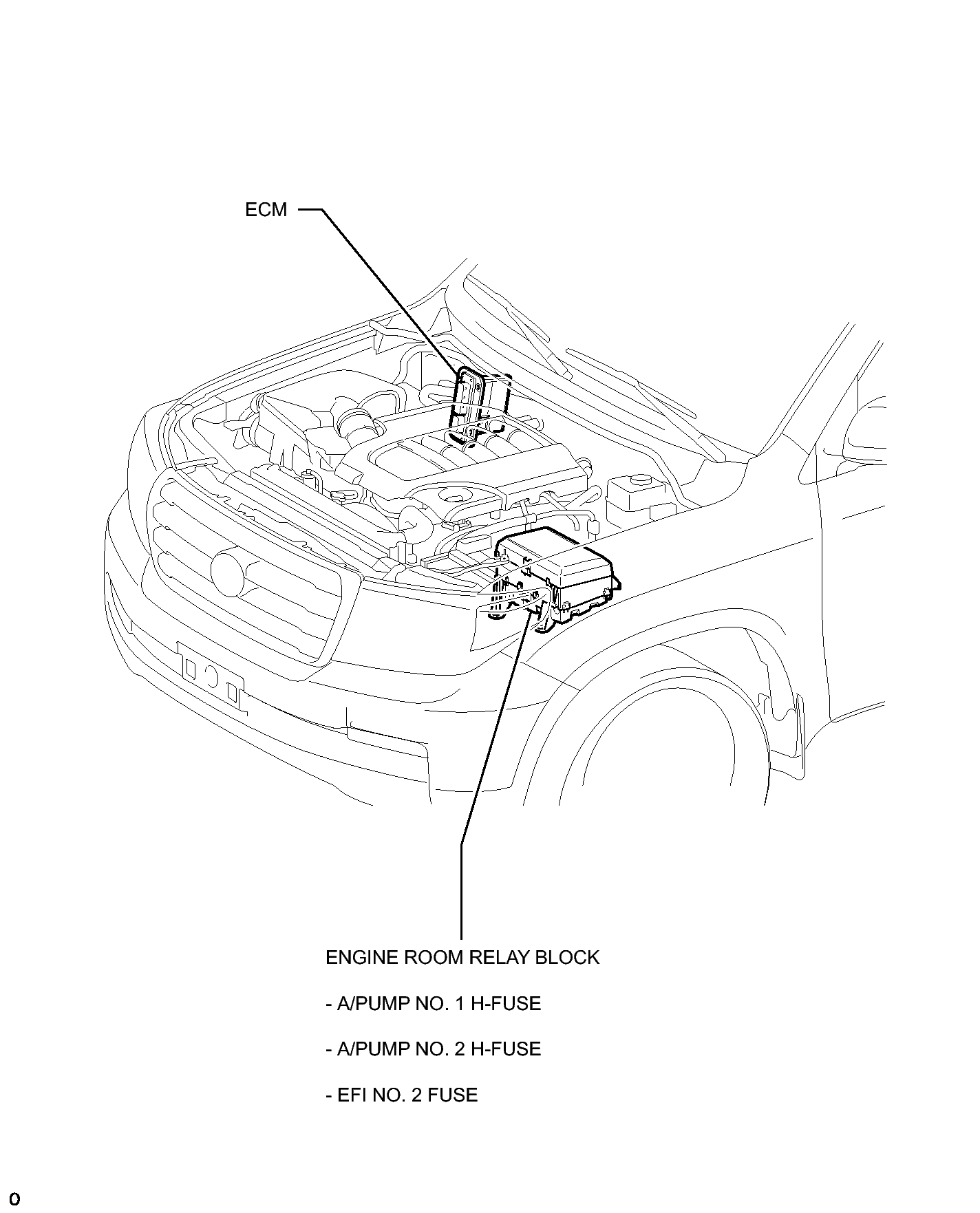

Fig 1: Identifying Emission Control System Components Location (1 Of 3)
GTY229868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

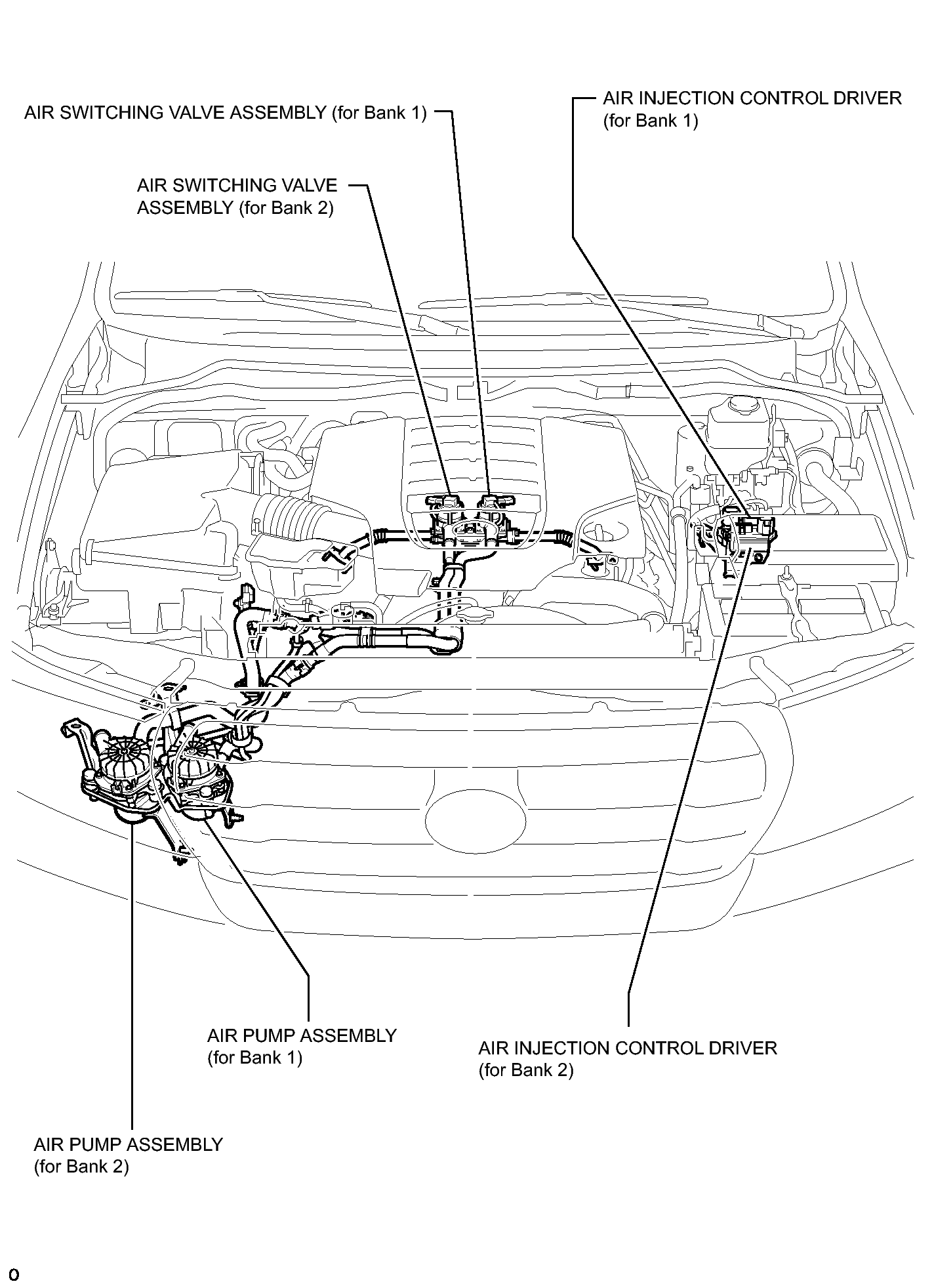

Fig 1: Identifying Emission Control System Components Location (2 Of 3)
GTY231717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

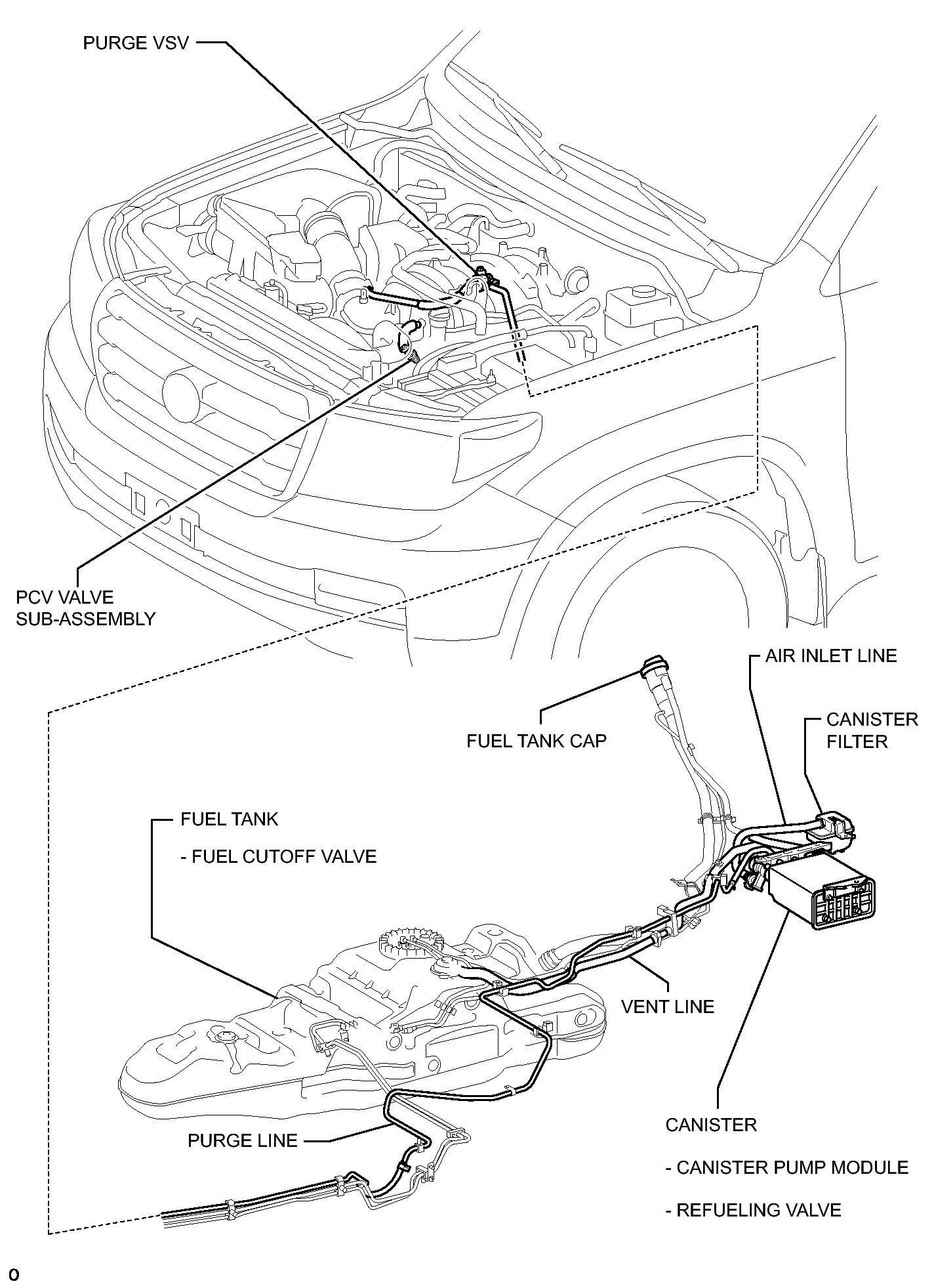

Fig 1: Identifying Emission Control System Components Location (3 Of 3)
GTY238054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
