Torque Specifications





SERVICE SPECIFICATIONS: 2AR-FE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

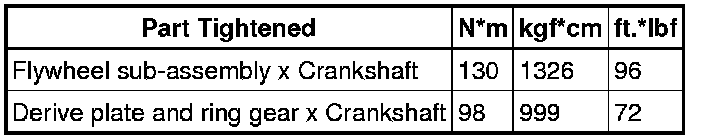

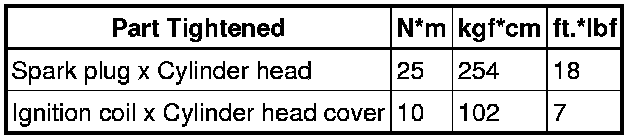

ENGINE

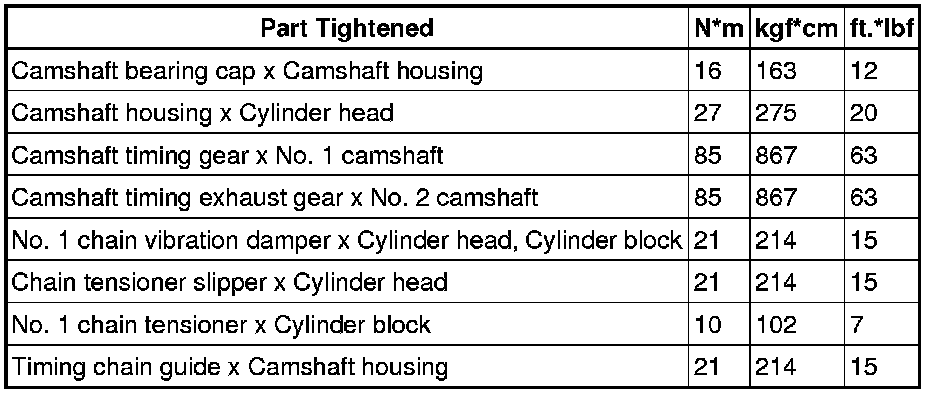

CAMSHAFT

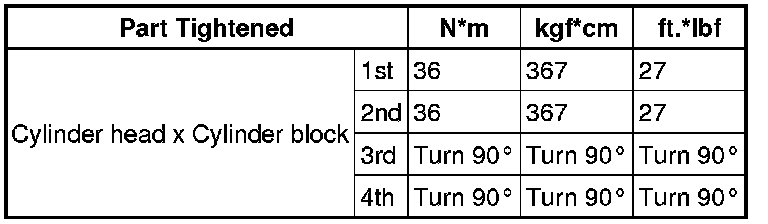

CYLINDER HEAD GASKET

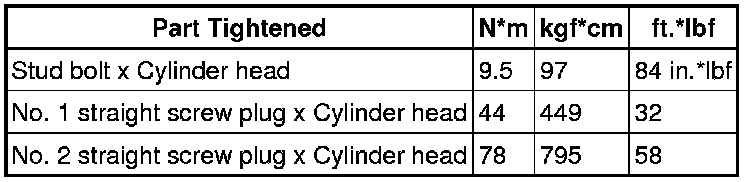

CYLINDER HEAD

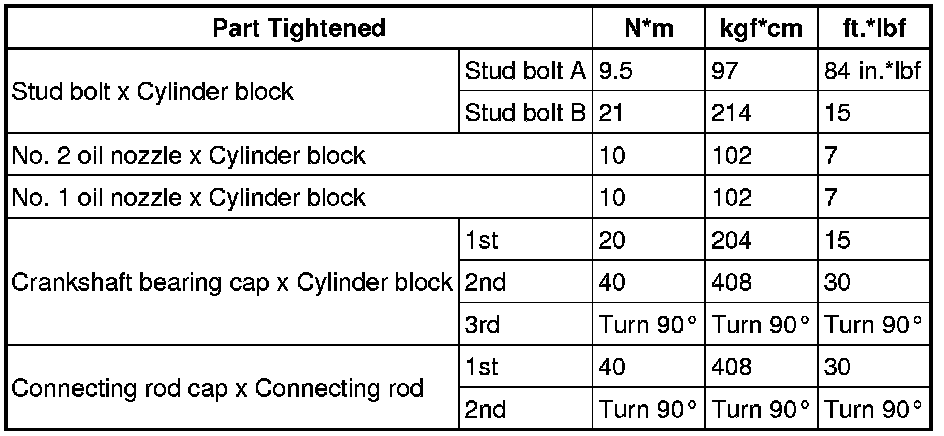

CYLINDER BLOCK





FRONT ENGINE OIL SEAL





REAR ENGINE OIL SEAL

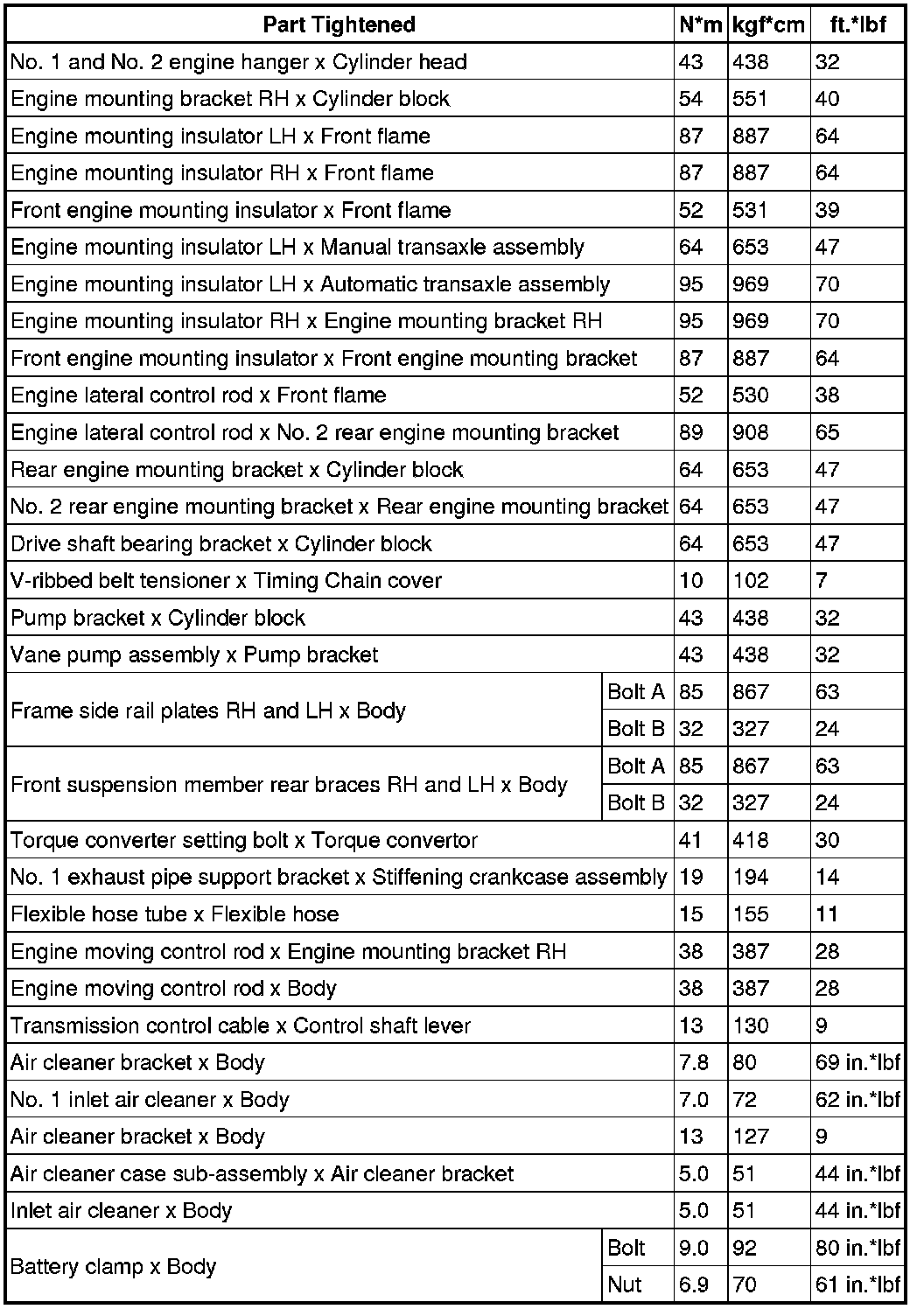

ENGINE ASSEMBLY

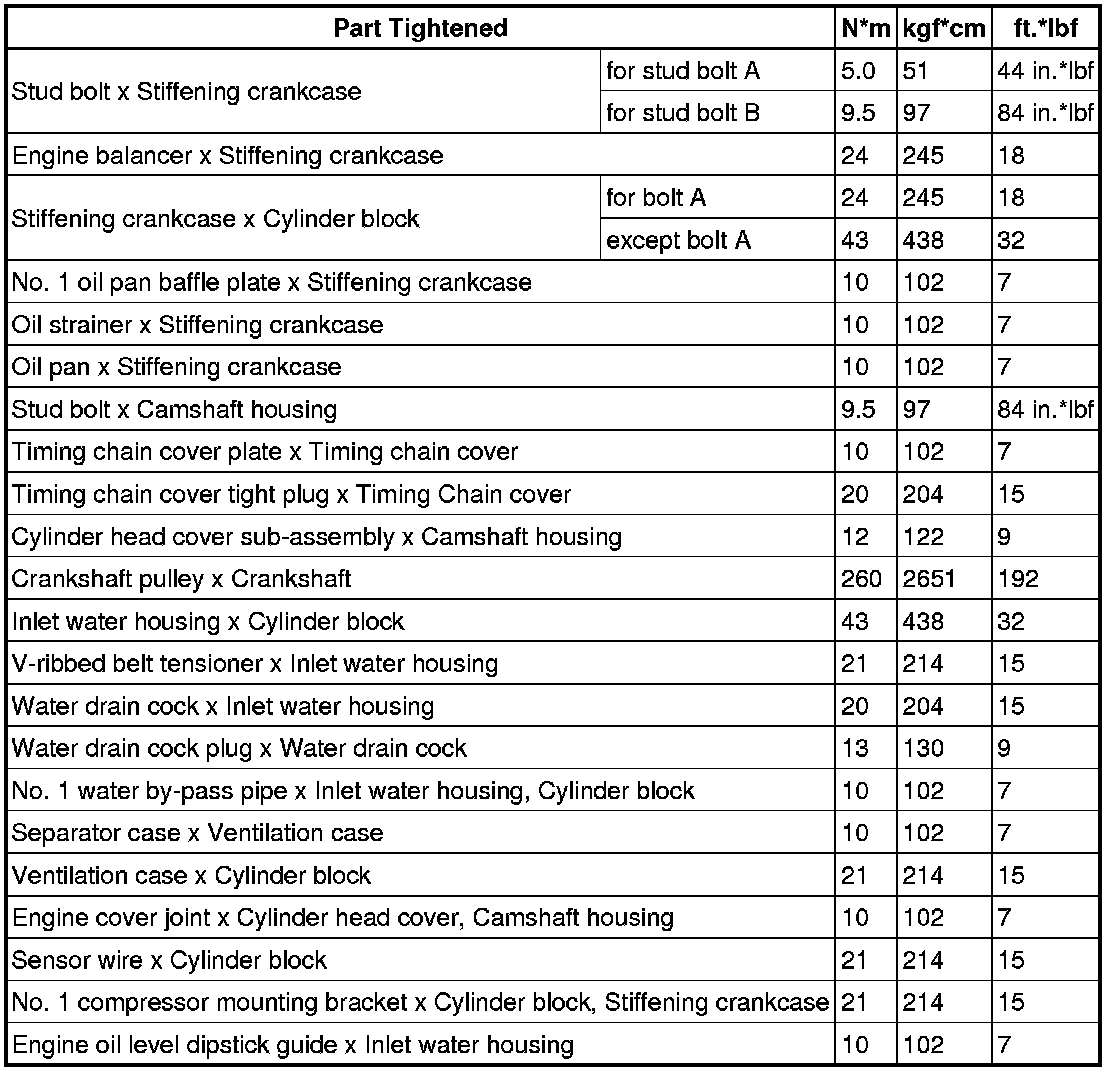

ENGINE UNIT
