Torque Specifications

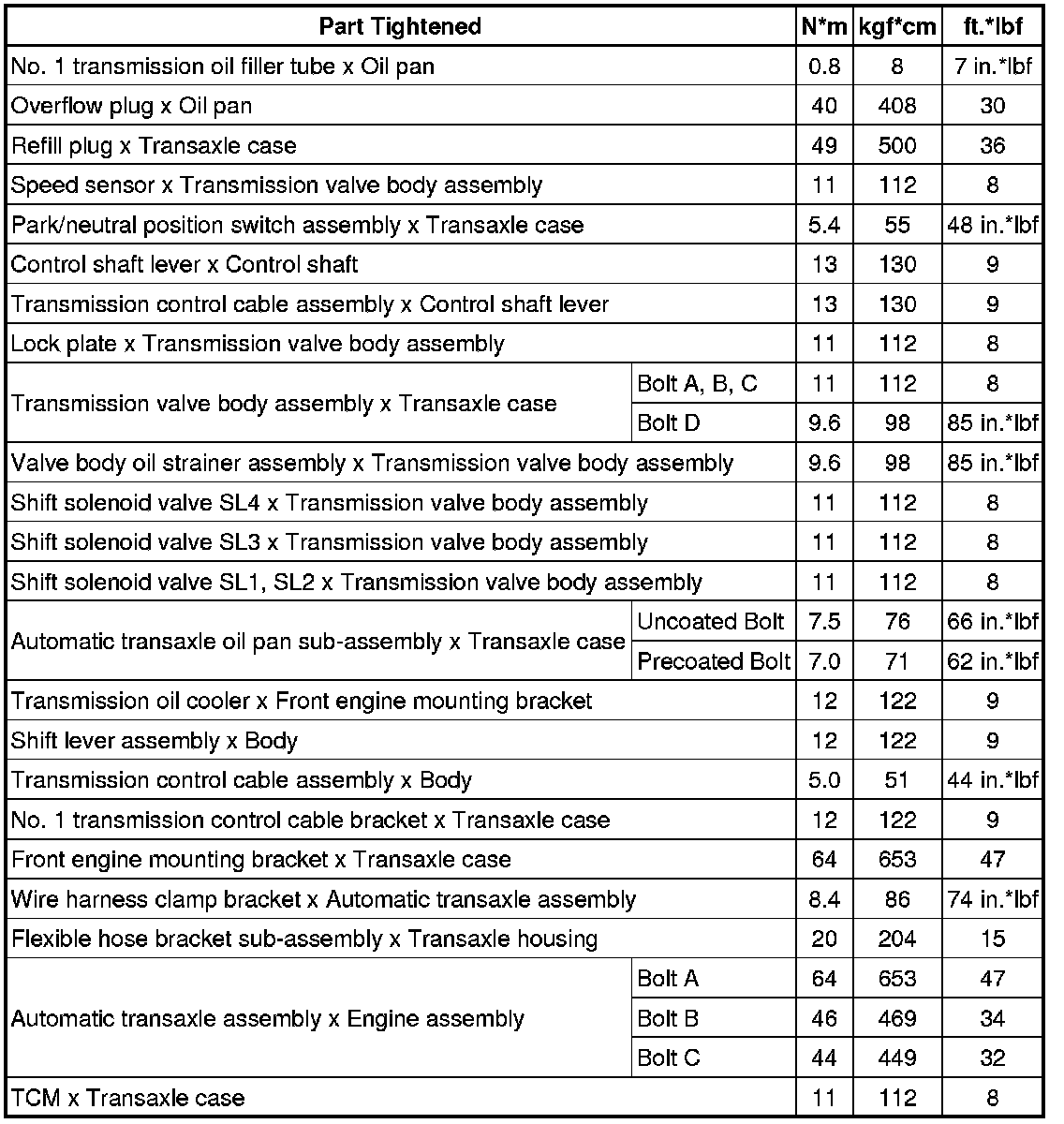

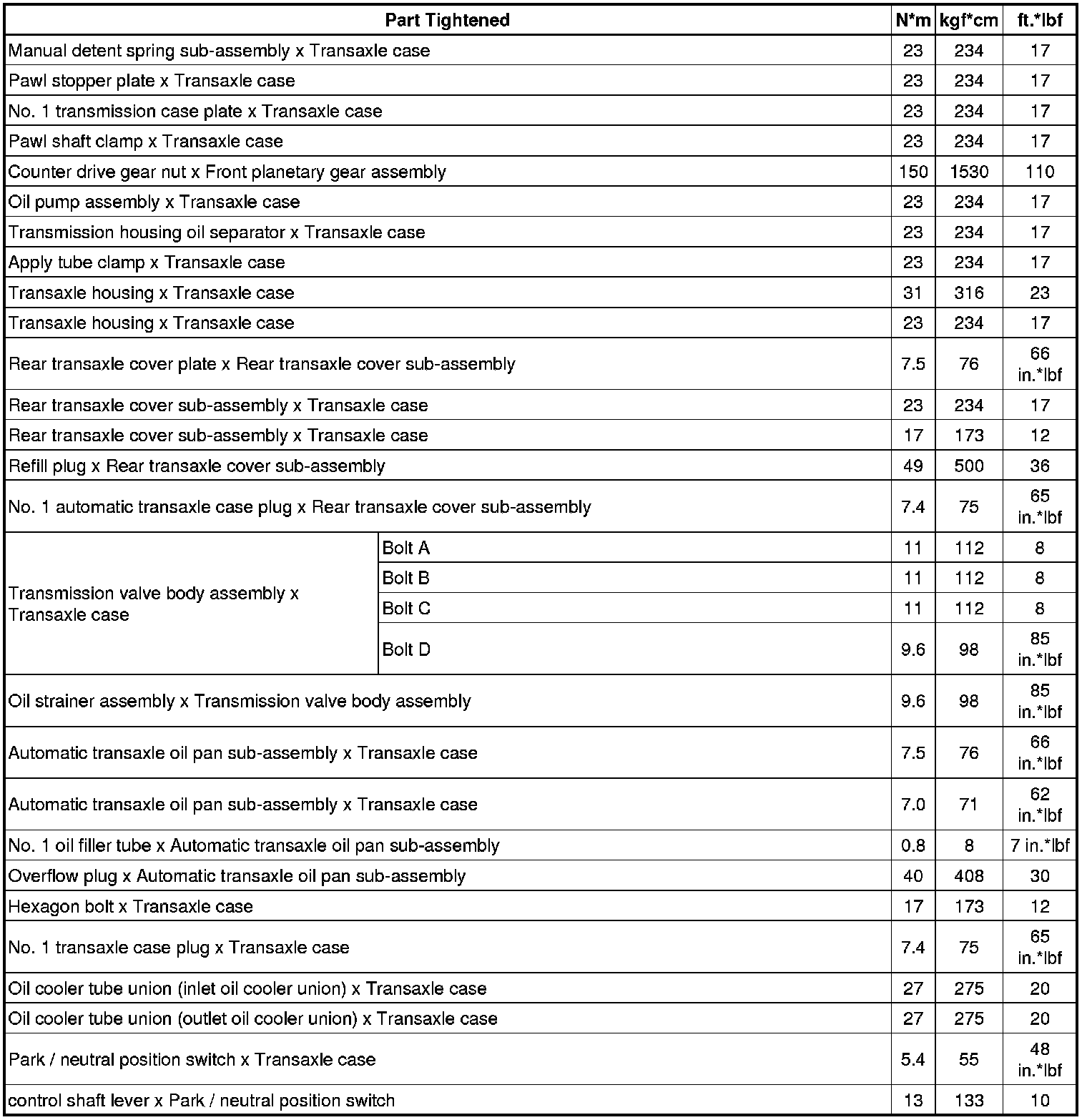

SERVICE SPECIFICATIONS: U760E AUTOMATIC TRANSAXLE: TORQUE SPECIFICATIONS

Automatic Transaxle Unit

Oil Pump

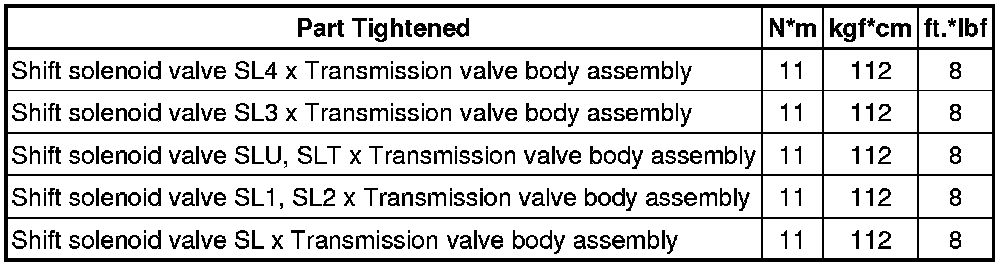

Shift Solenoid Valve

Differential Case
