EFI Relay





2AR-FE ENGINE CONTROL SYSTEM: EFI RELAY: INSPECTION

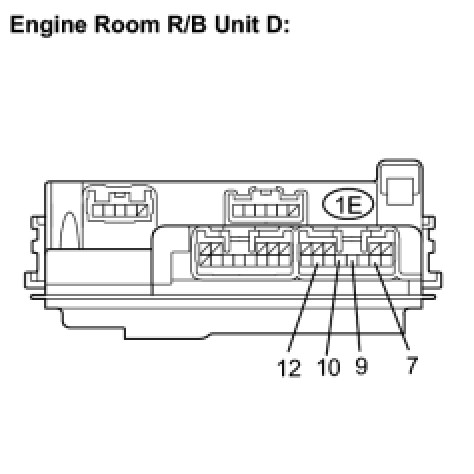

1. INSPECT EFI MAIN RELAY

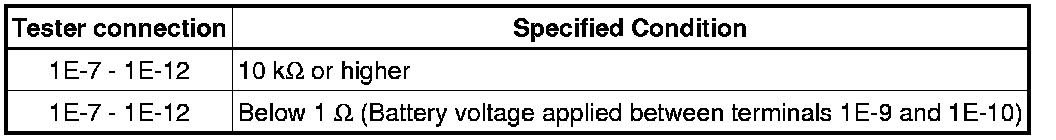

(a) Using an ohmmeter, measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the result is not as specified, replace the relay.

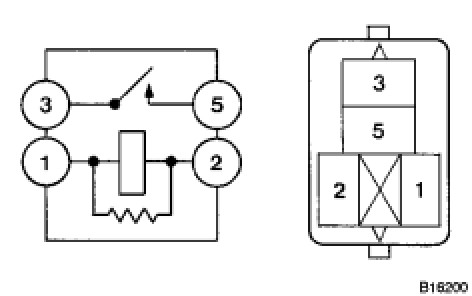

2. INSPECT EFI 2 RELAY

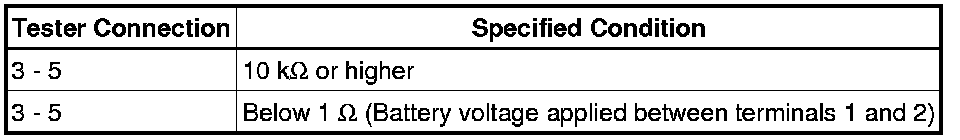

(a) Using an ohmmeter, measure the resistance according to the value(s) in the table below.





Standard Resistance:
