Components

COMPONENTS

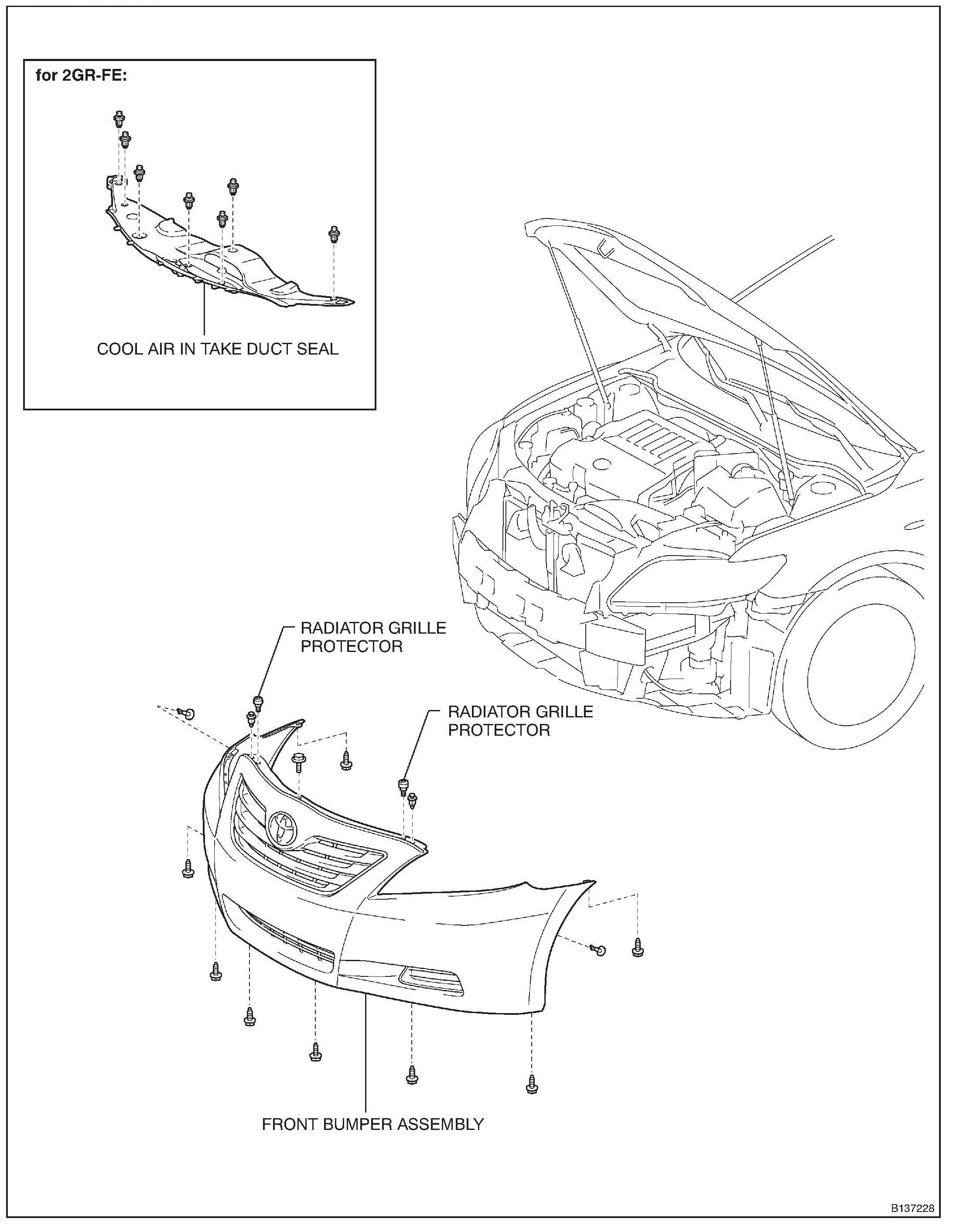

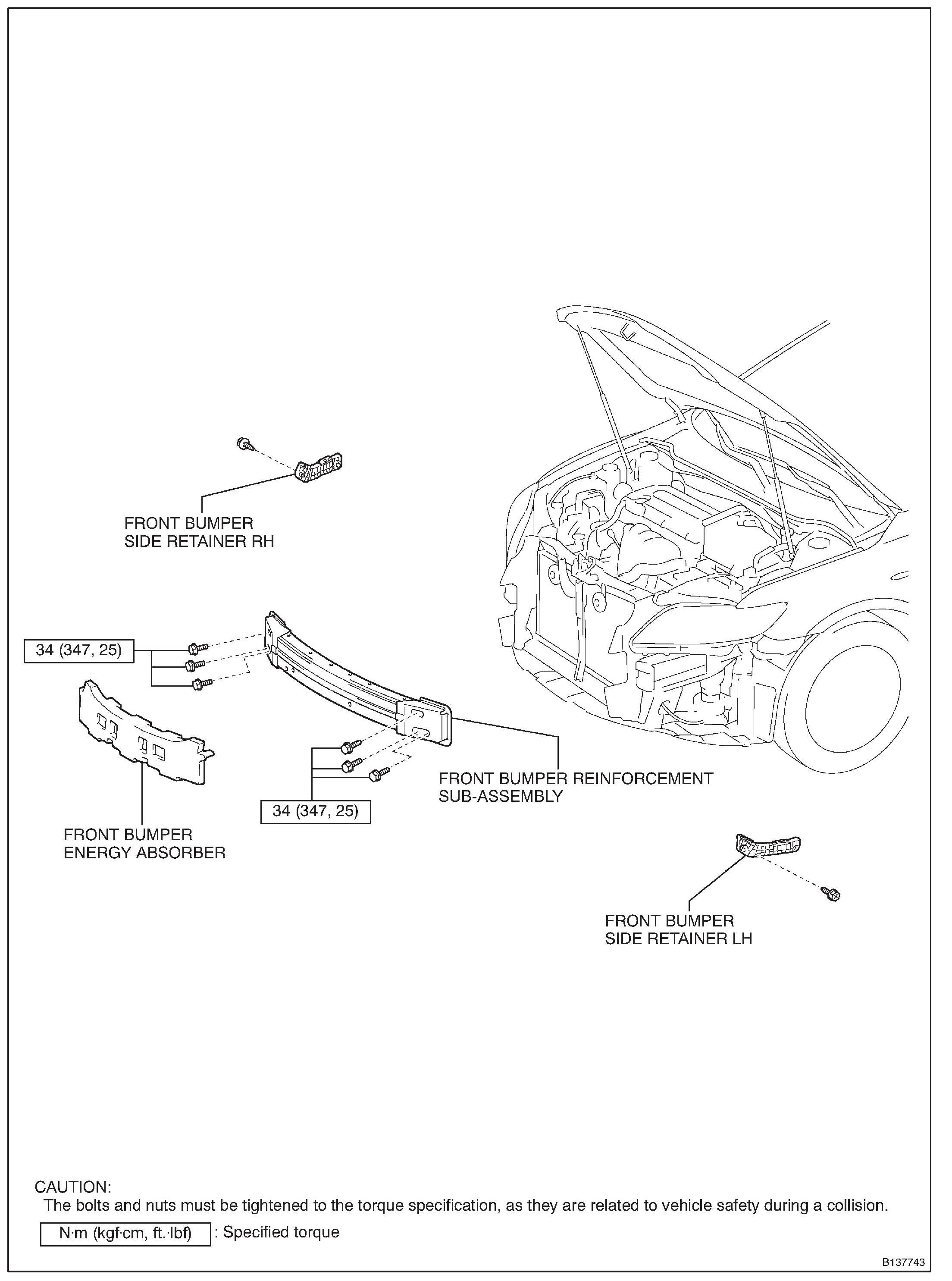

1 Front bumper

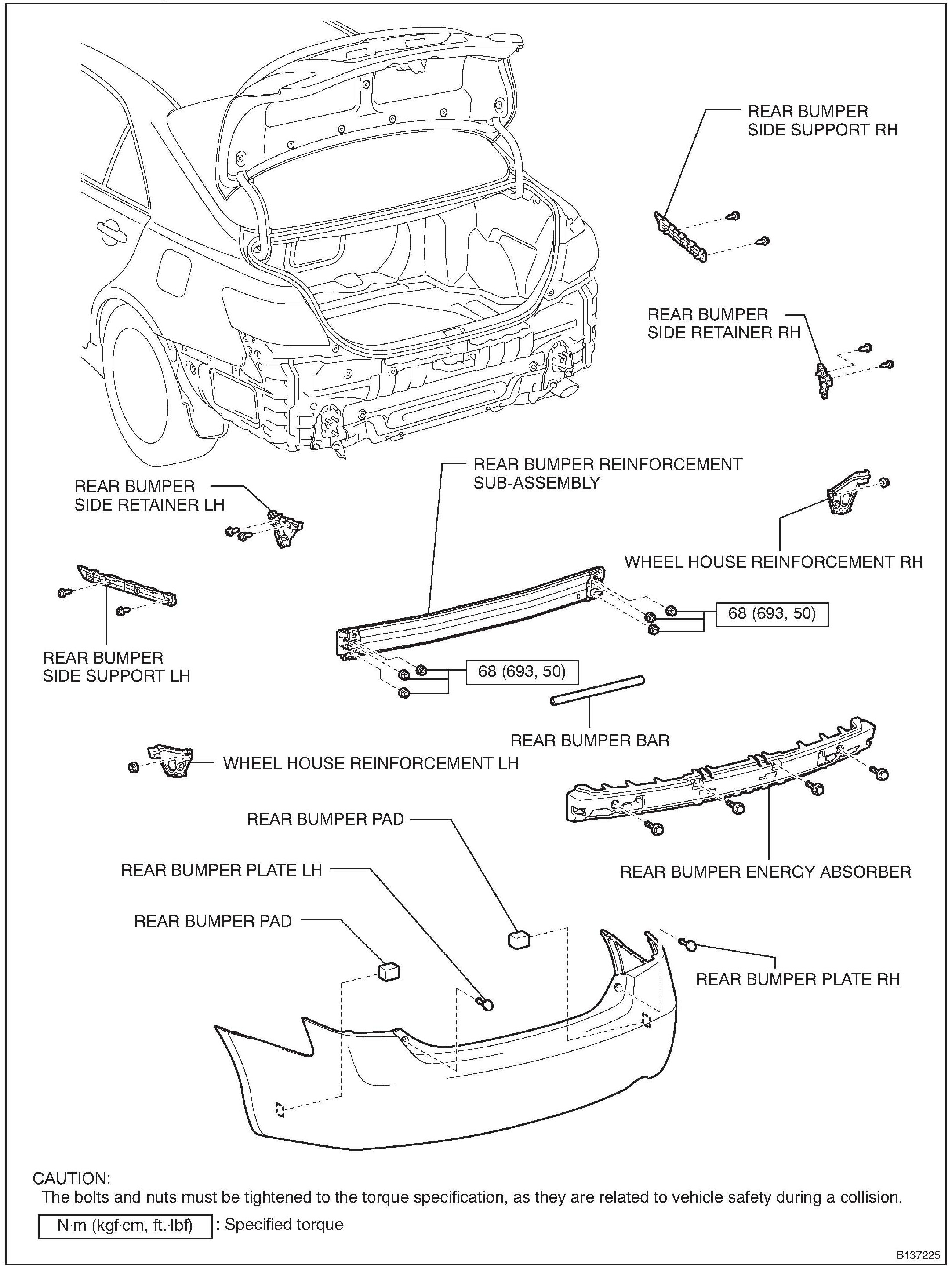

2 Rear bumper

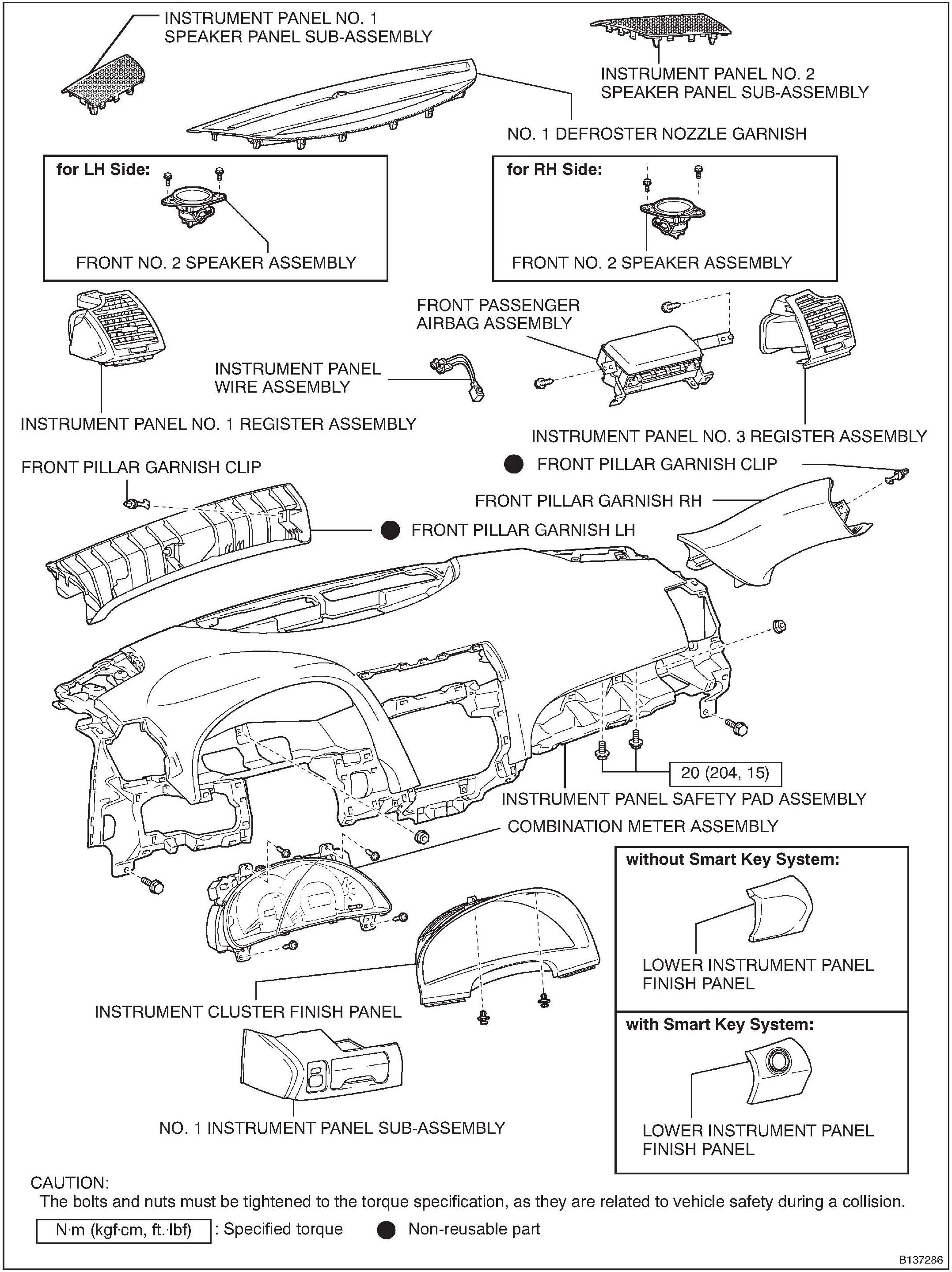

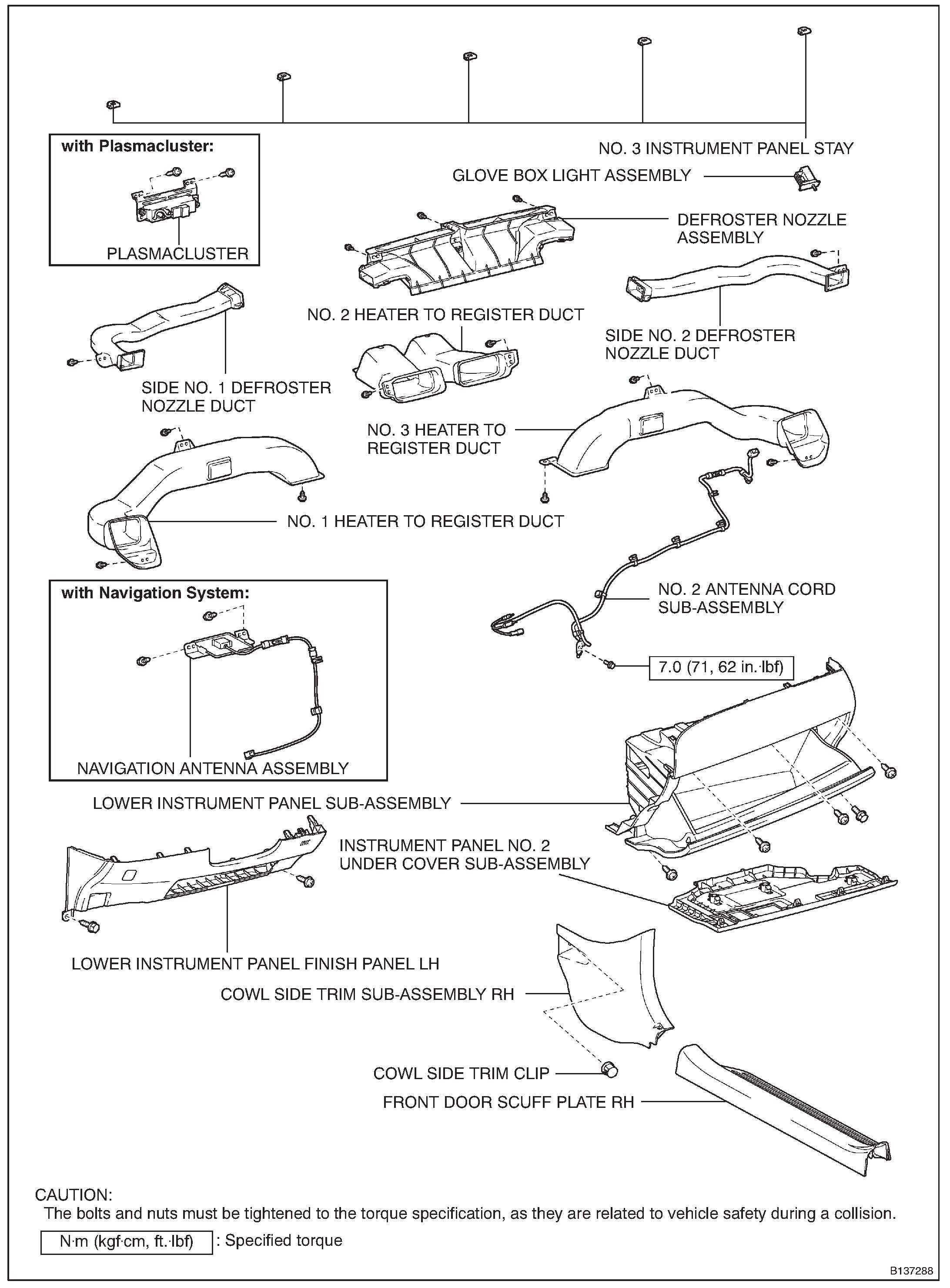

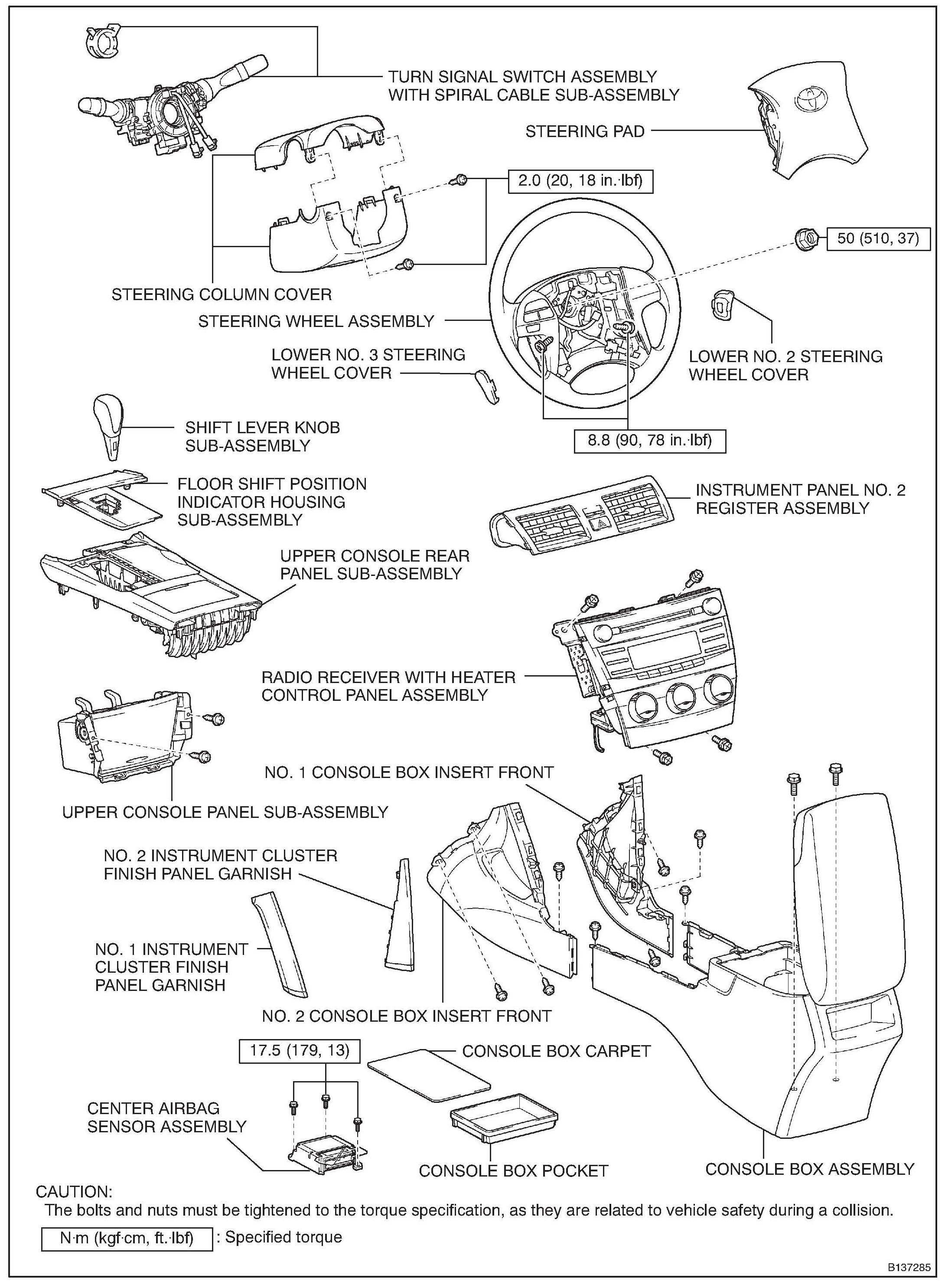

3 Instrument panel

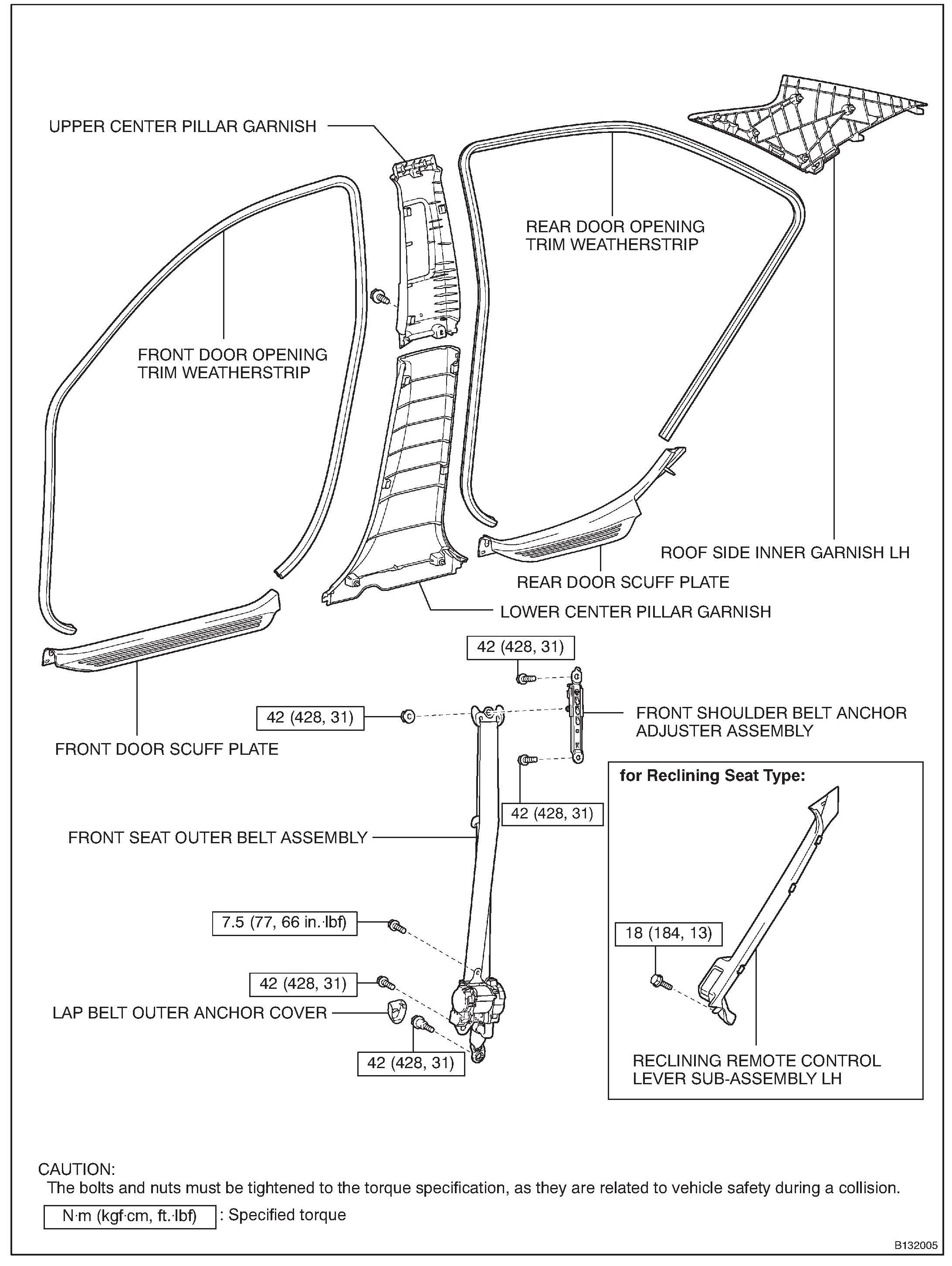

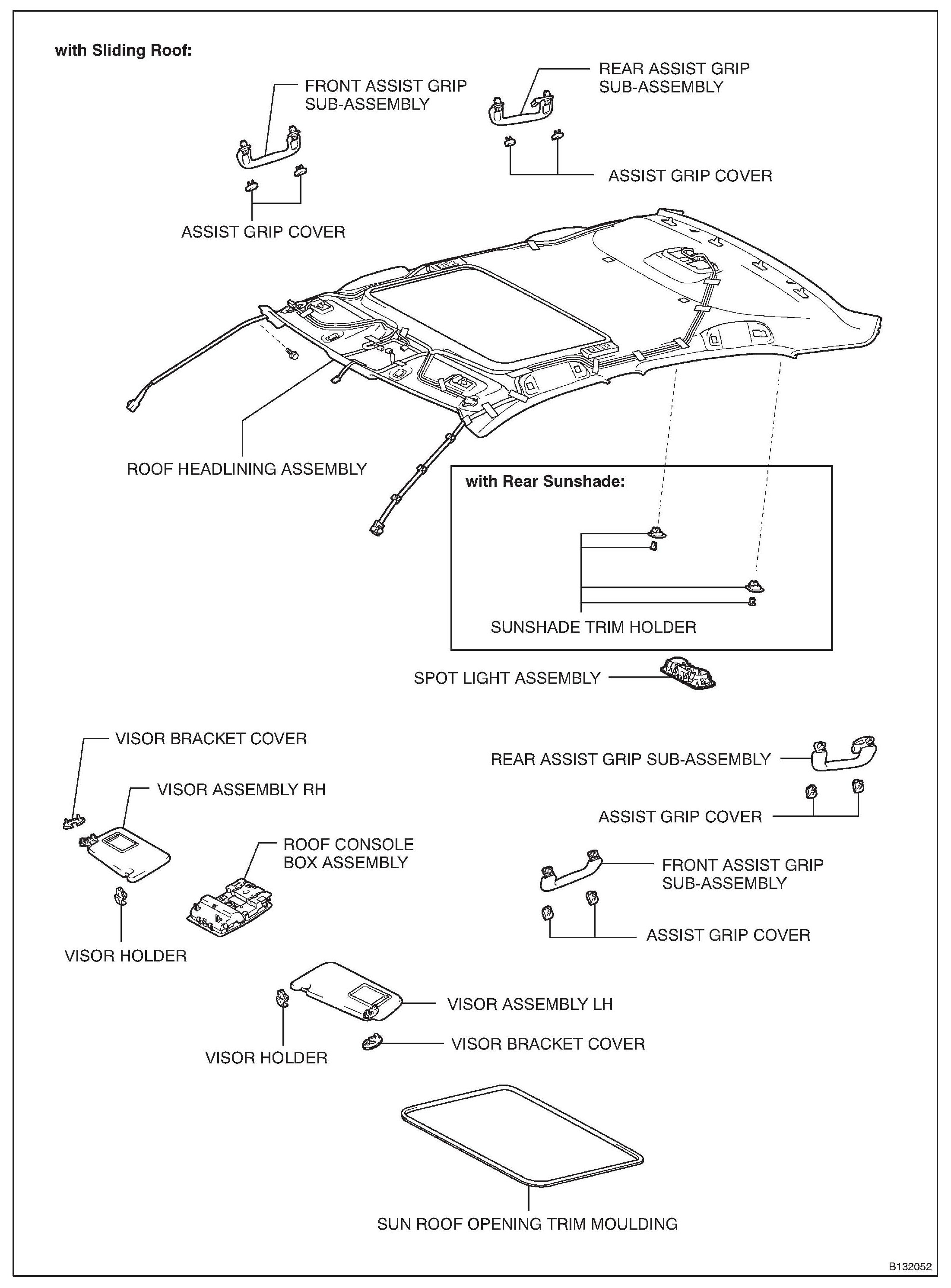

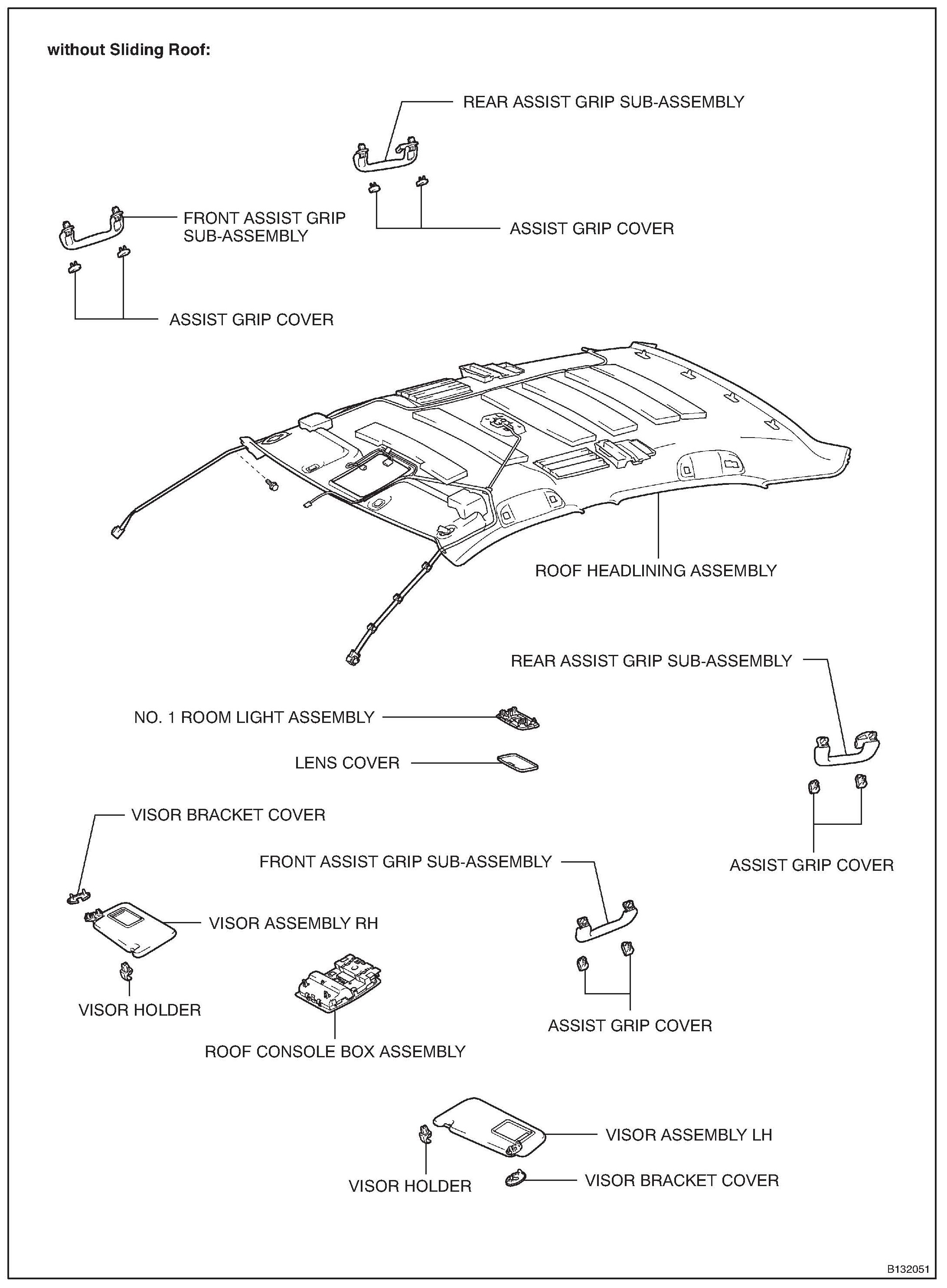

4 Interior trim

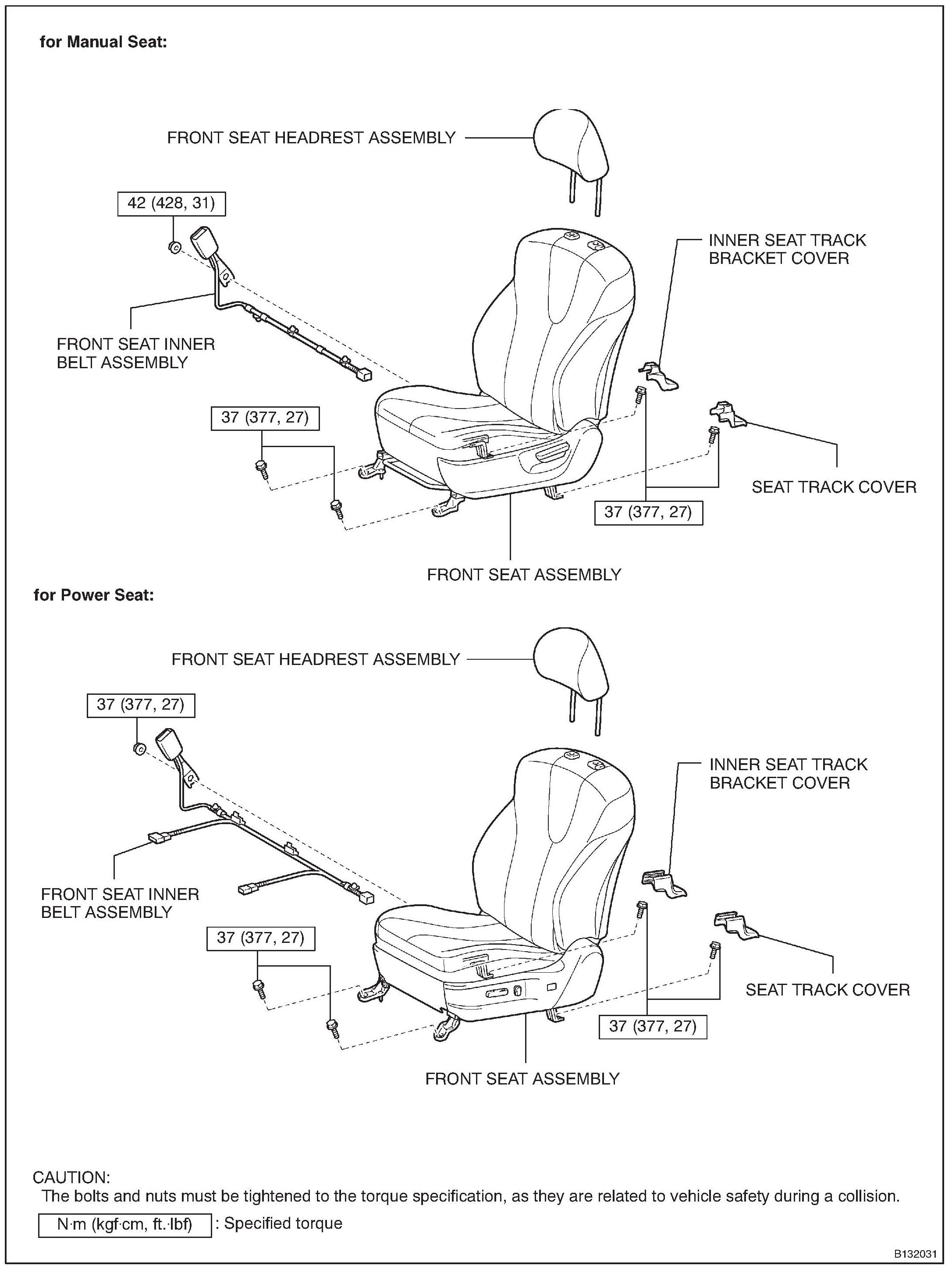

5 Front seat

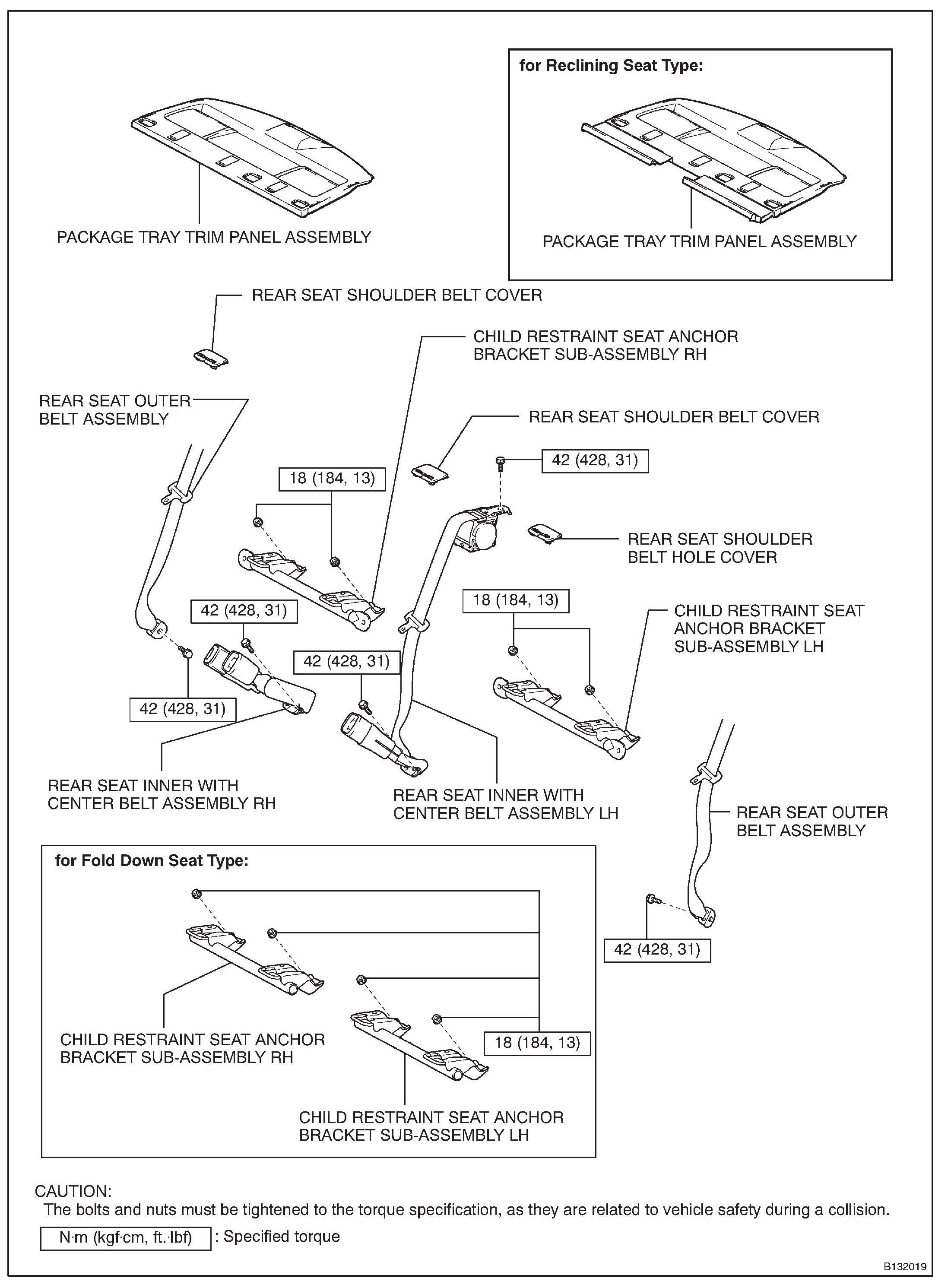

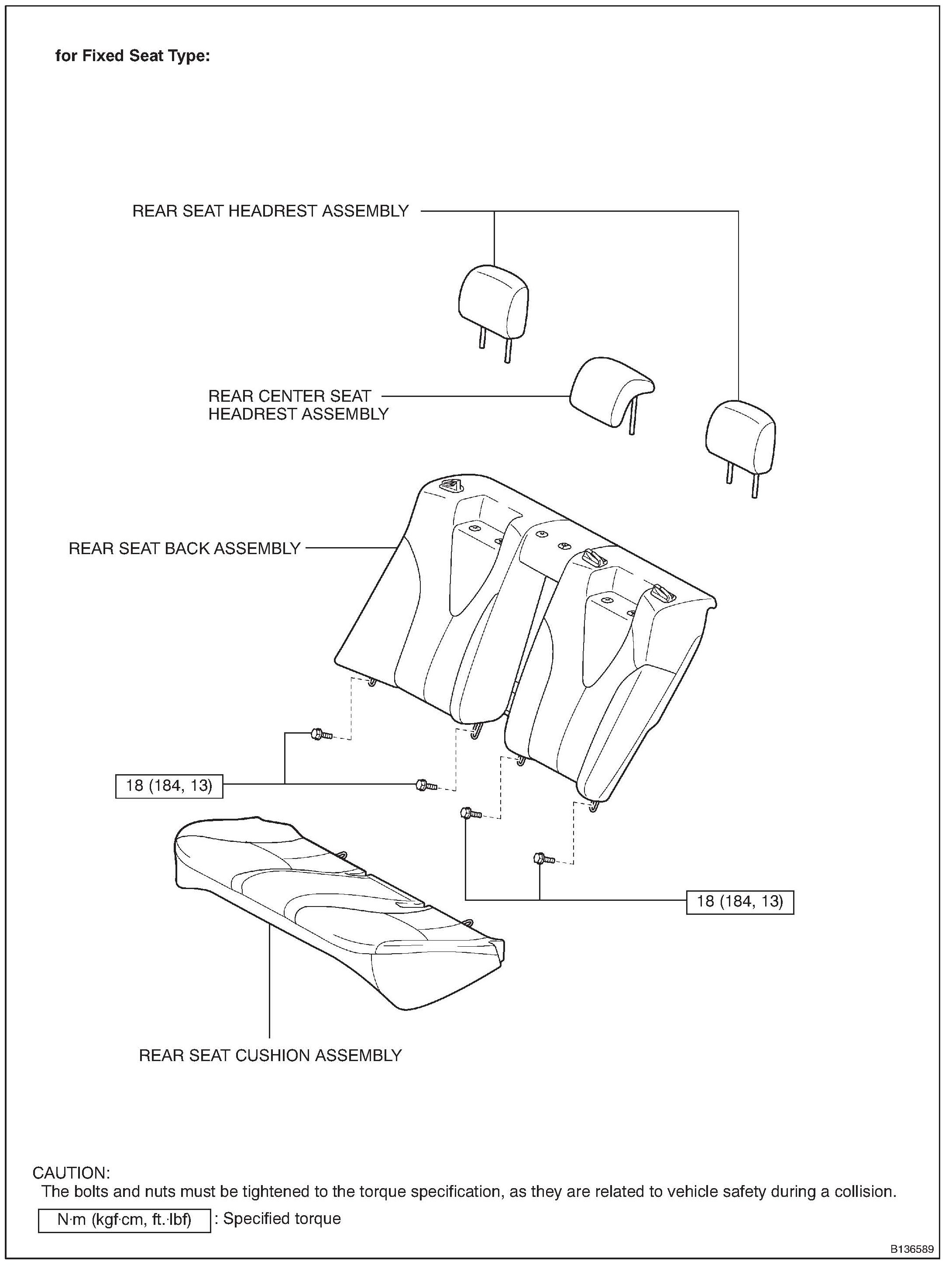

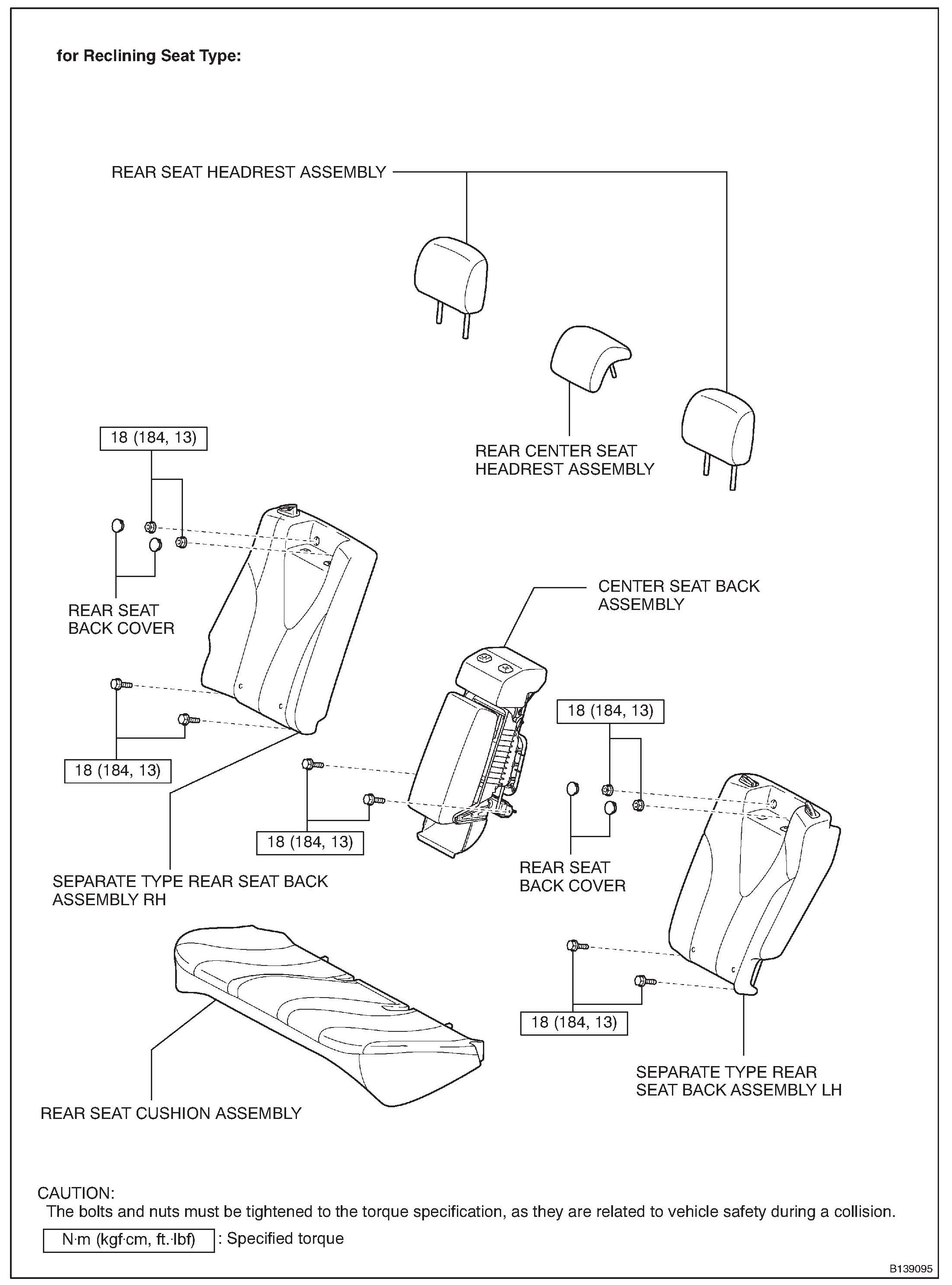

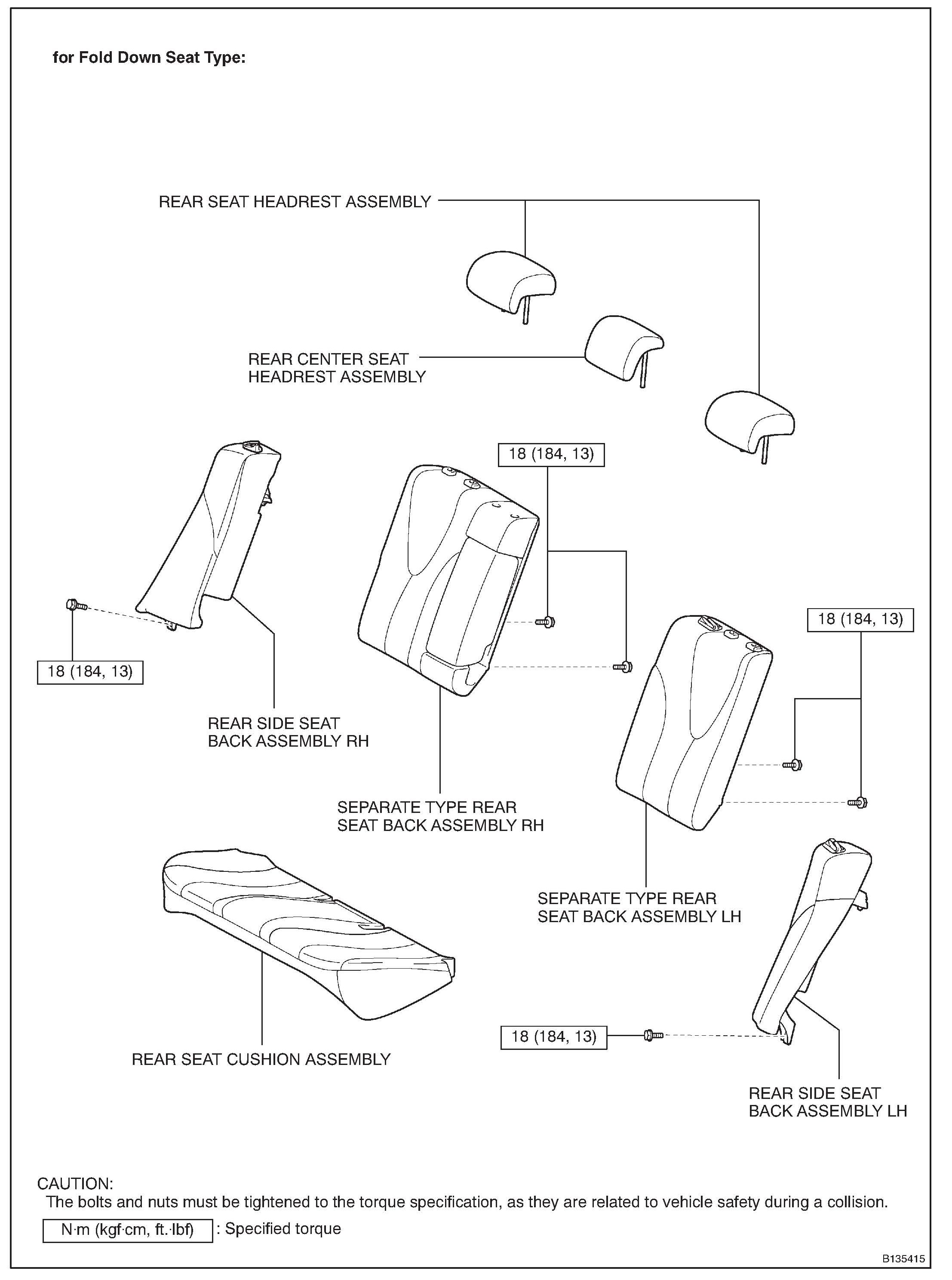

6 Rear seat
