ATF Temperature Sensor: Components: Illustration

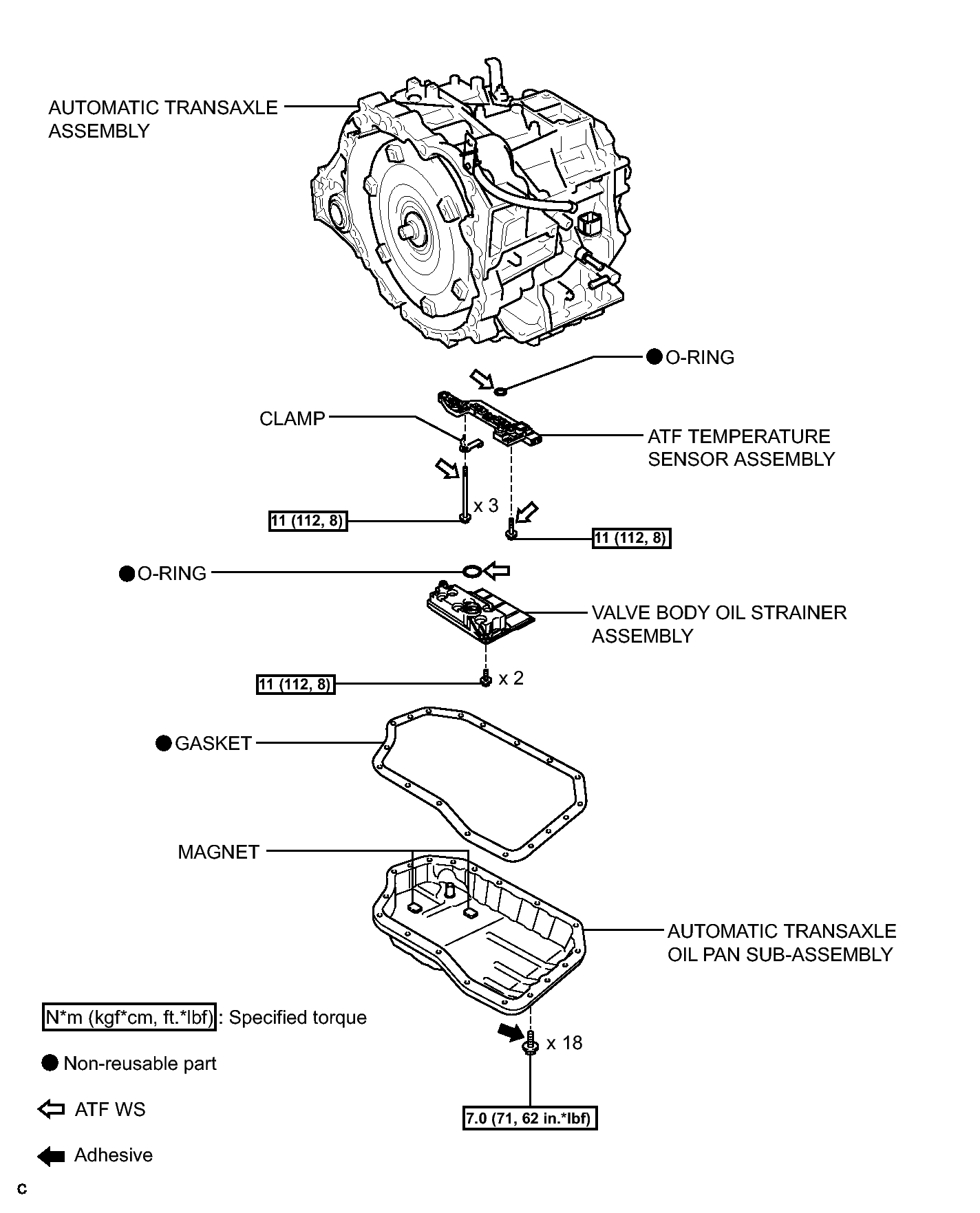

Fig 1: Identifying ATF Temperature Sensor Replacement Components With Torque Specifications

GTY204556

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
