Control Module: Locations

U760F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: PARTS LOCATION

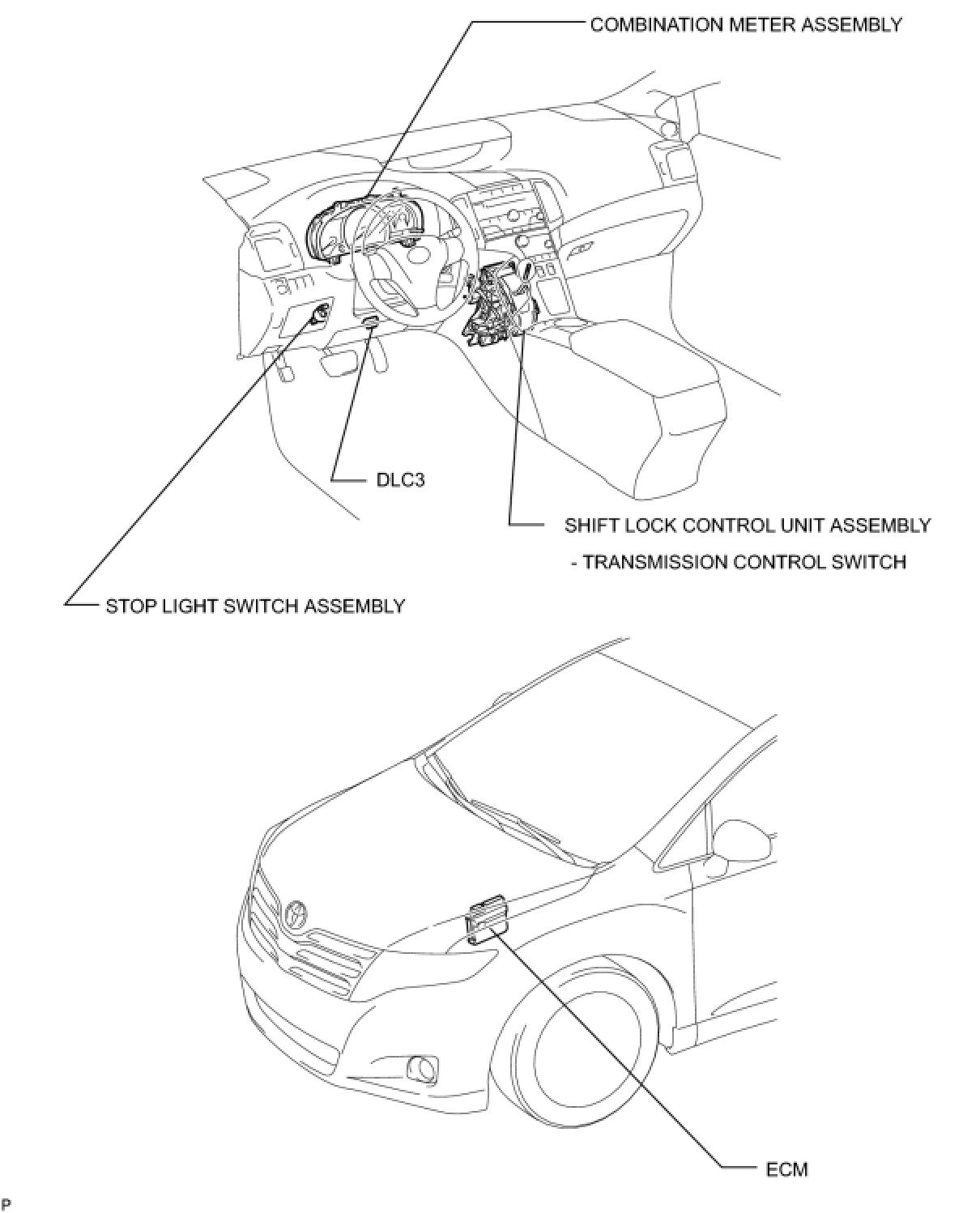

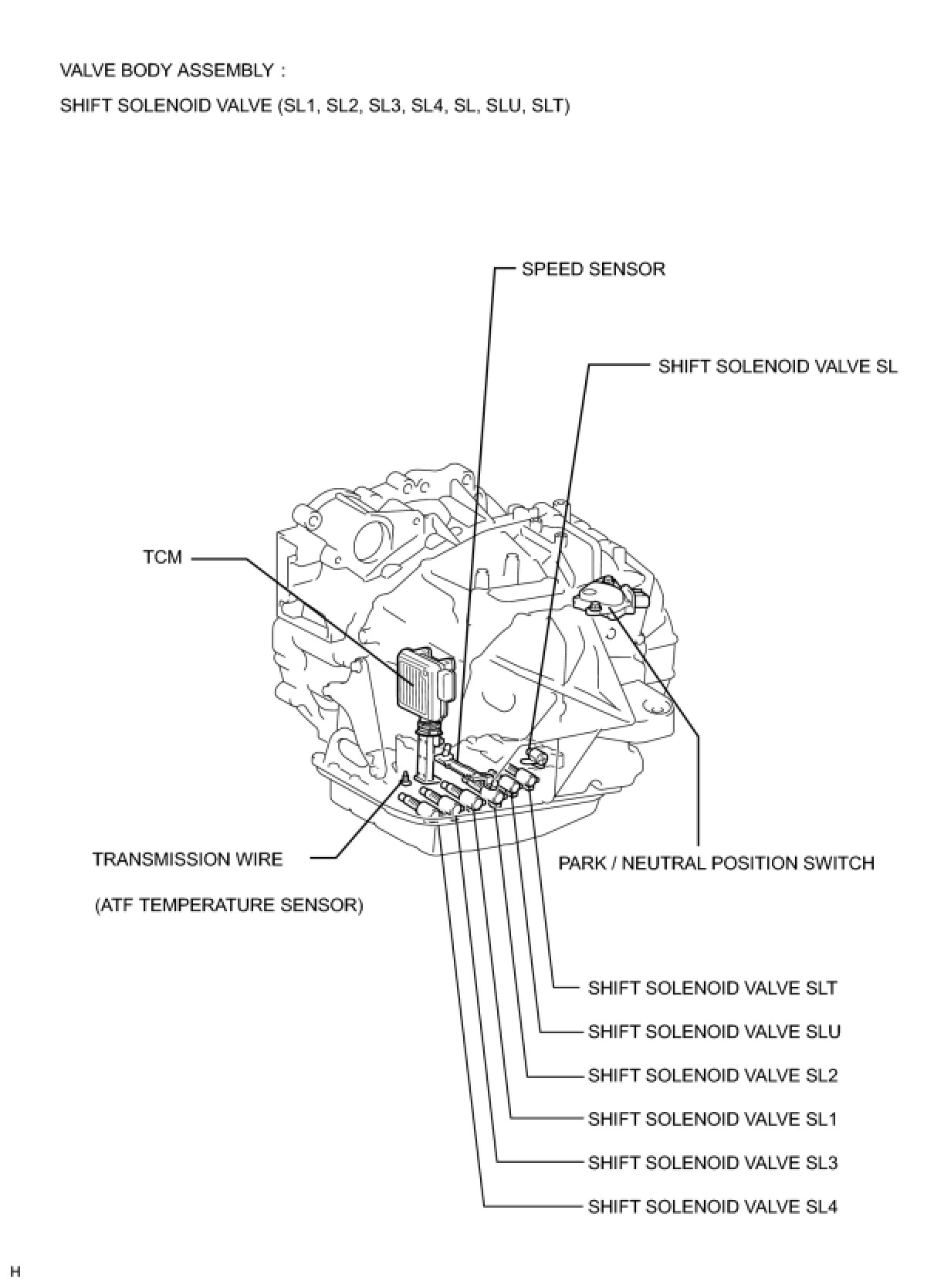

PARTS LOCATION

ILLUSTRATION
