Torque Specifications








SPECIFICATIONS: 1AR-FE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

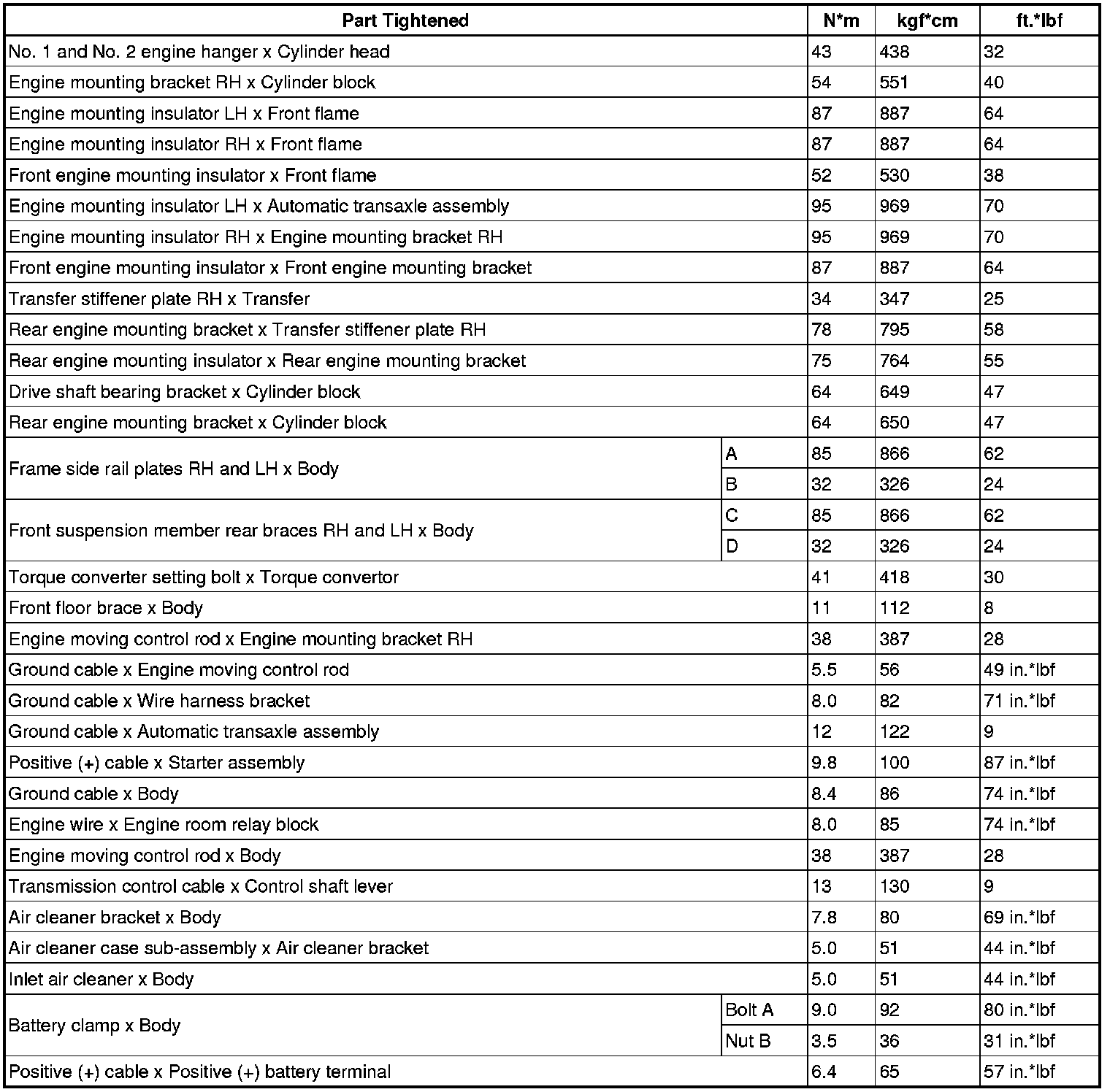

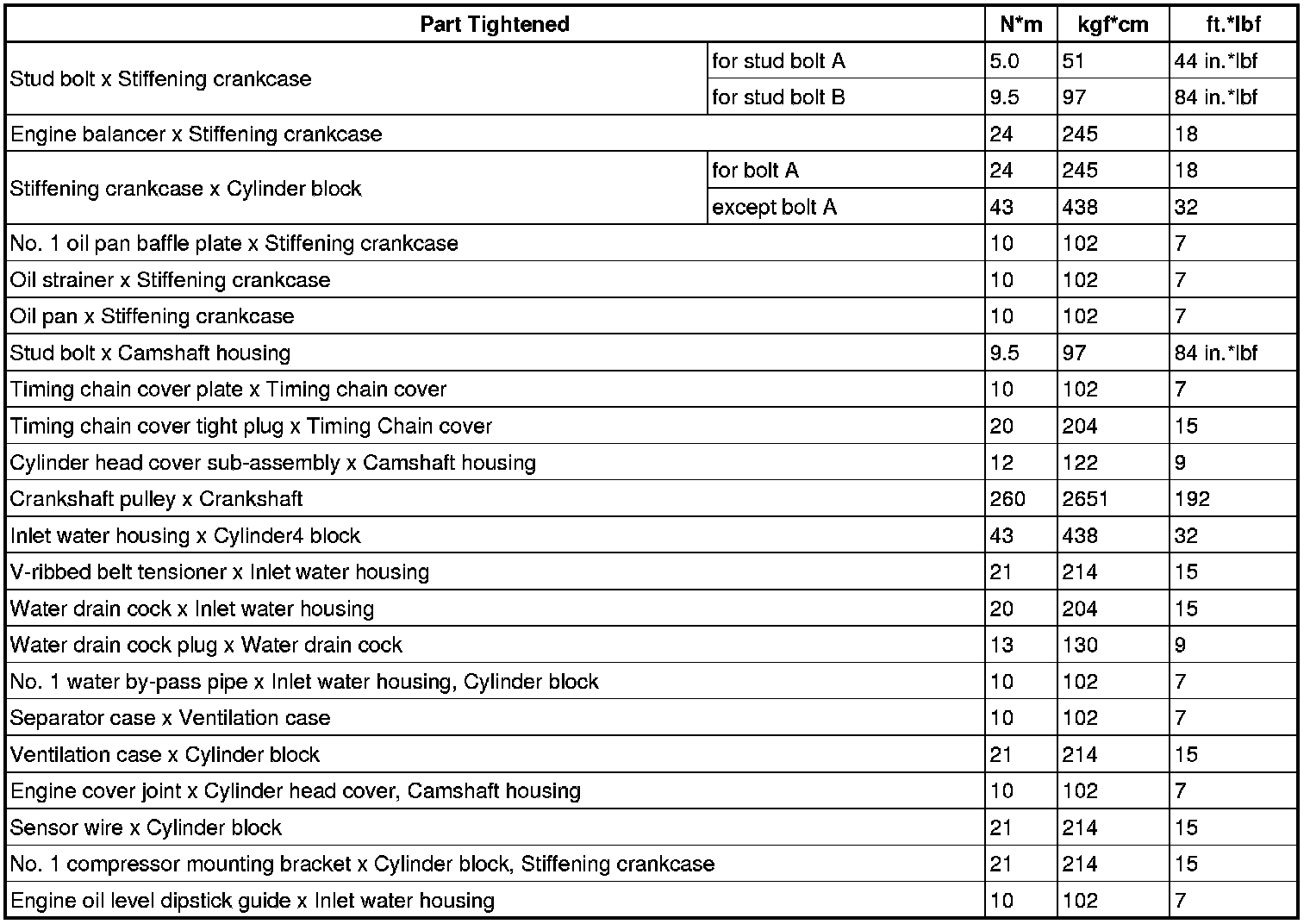

ENGINE





CAMSHAFT





CYLINDER HEAD GASKET





CYLINDER HEAD





CYLINDER BLOCK





ENGINE REAR OIL SEAL





ENGINE ASSEMBLY





ENGINE UNIT
