Service Data








SPECIFICATIONS: 1AR-FE ENGINE MECHANICAL: SERVICE DATA

SERVICE DATA

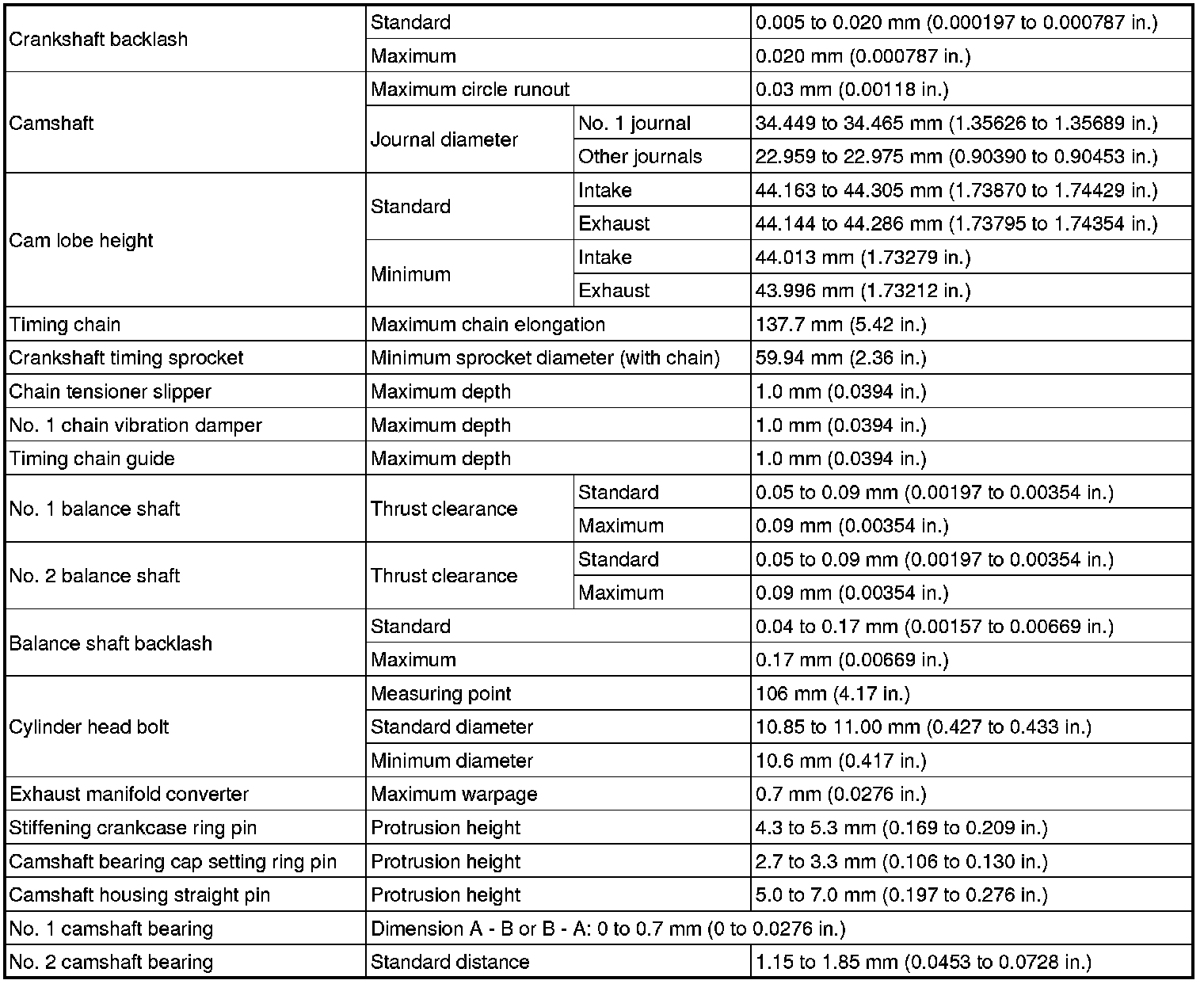

ENGINE

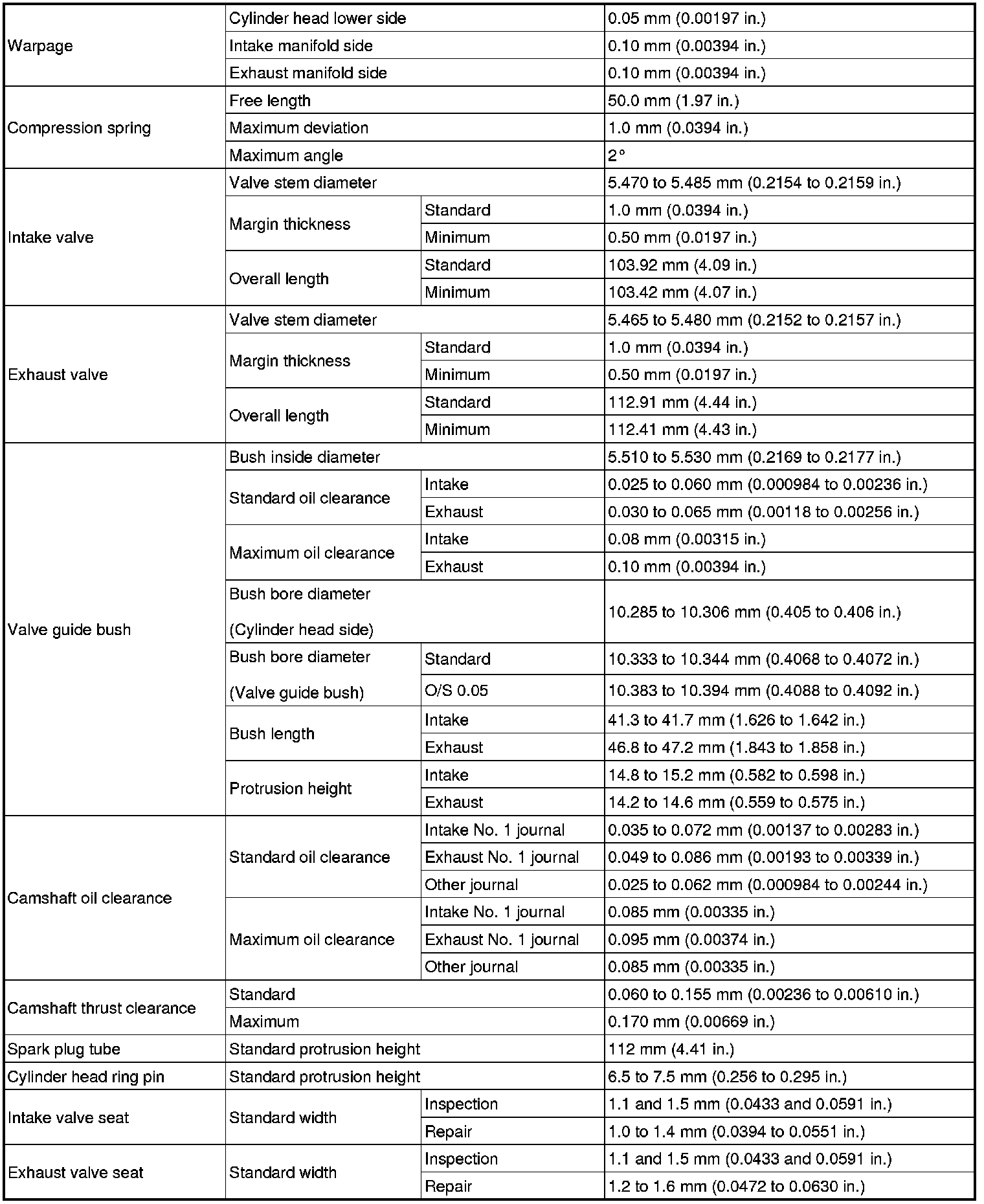

CYLINDER HEAD

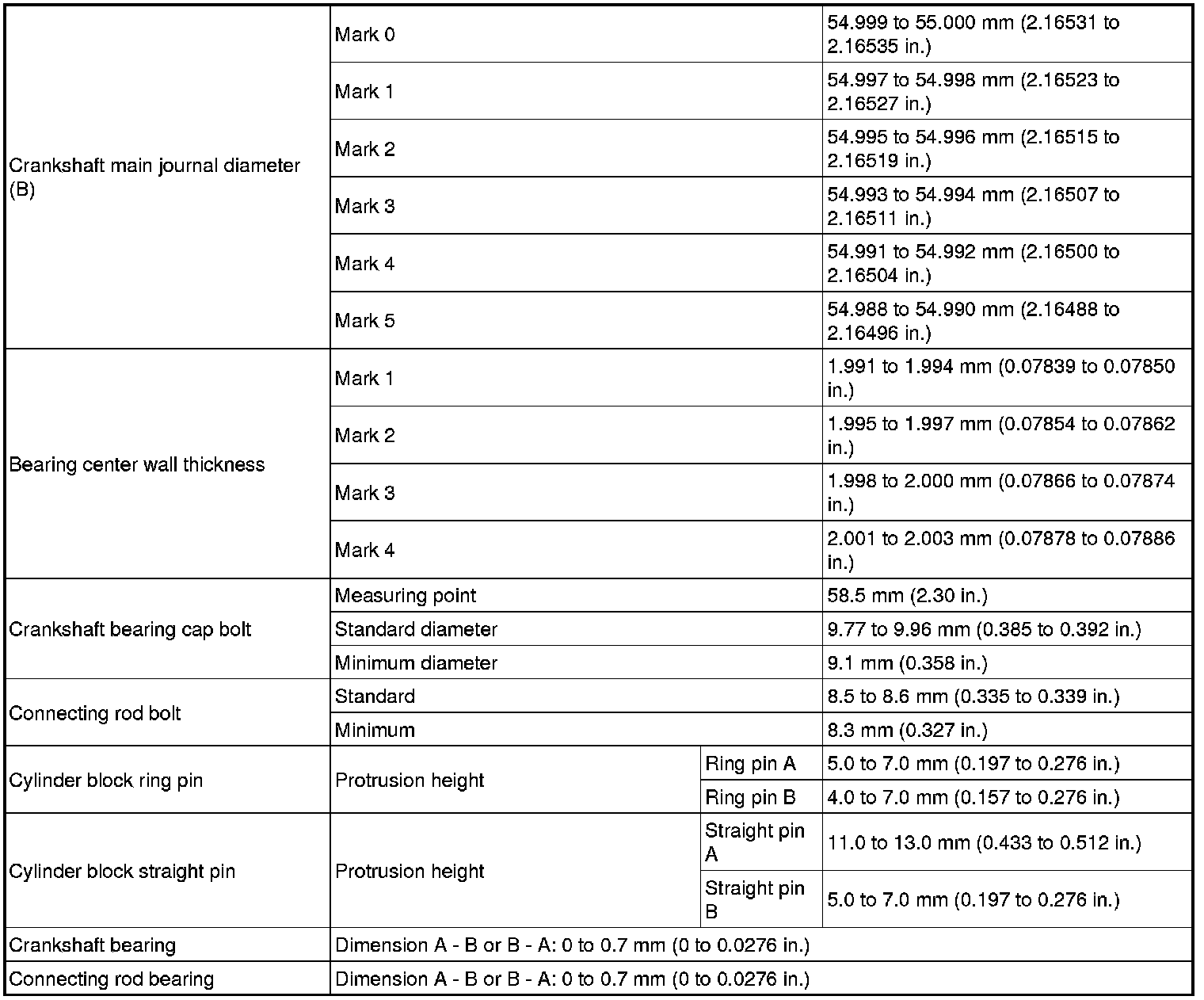

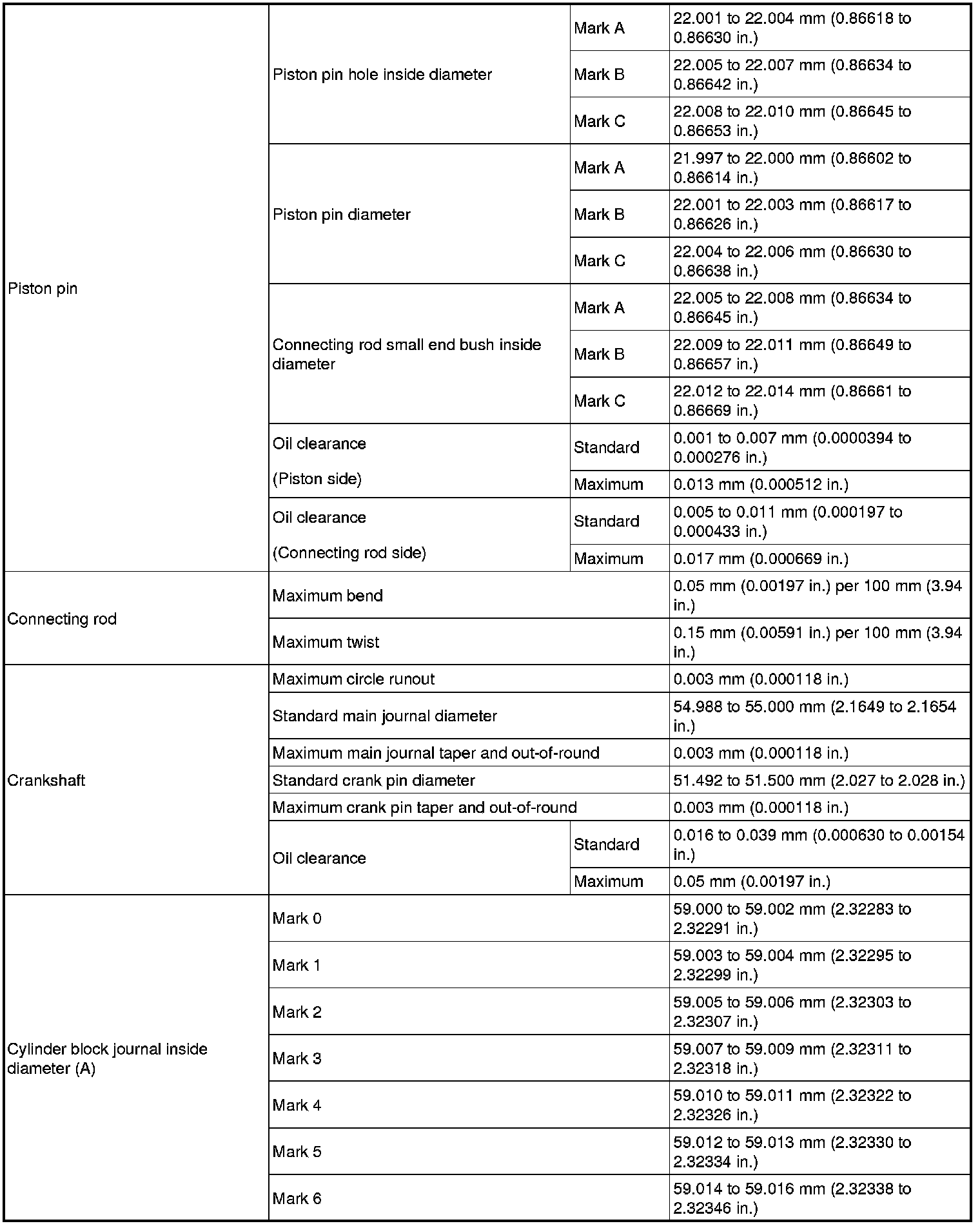

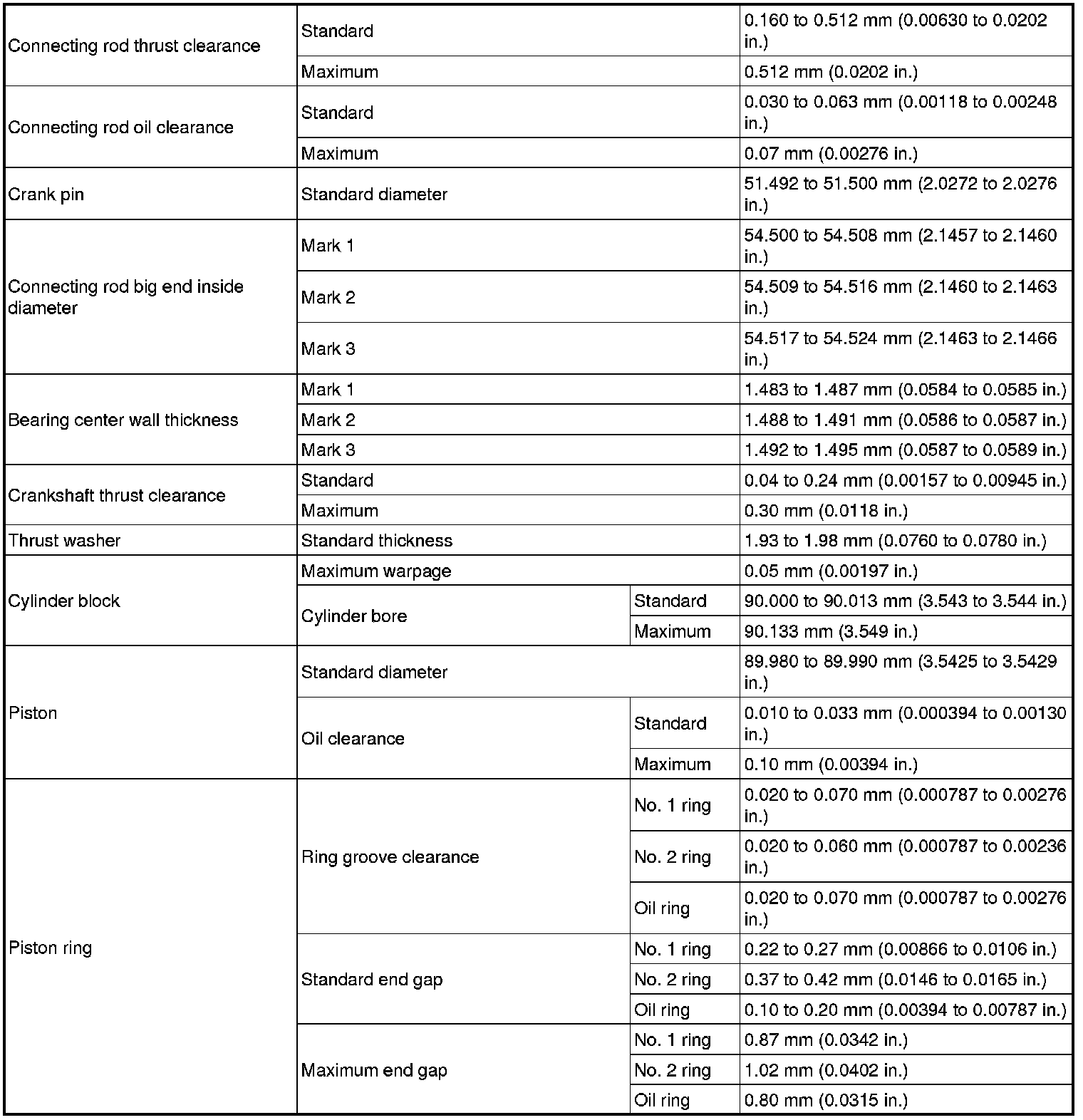

CYLINDER BLOCK













ENGINE UNIT
