Starting - Smart Key System
Starting - Smart Key System

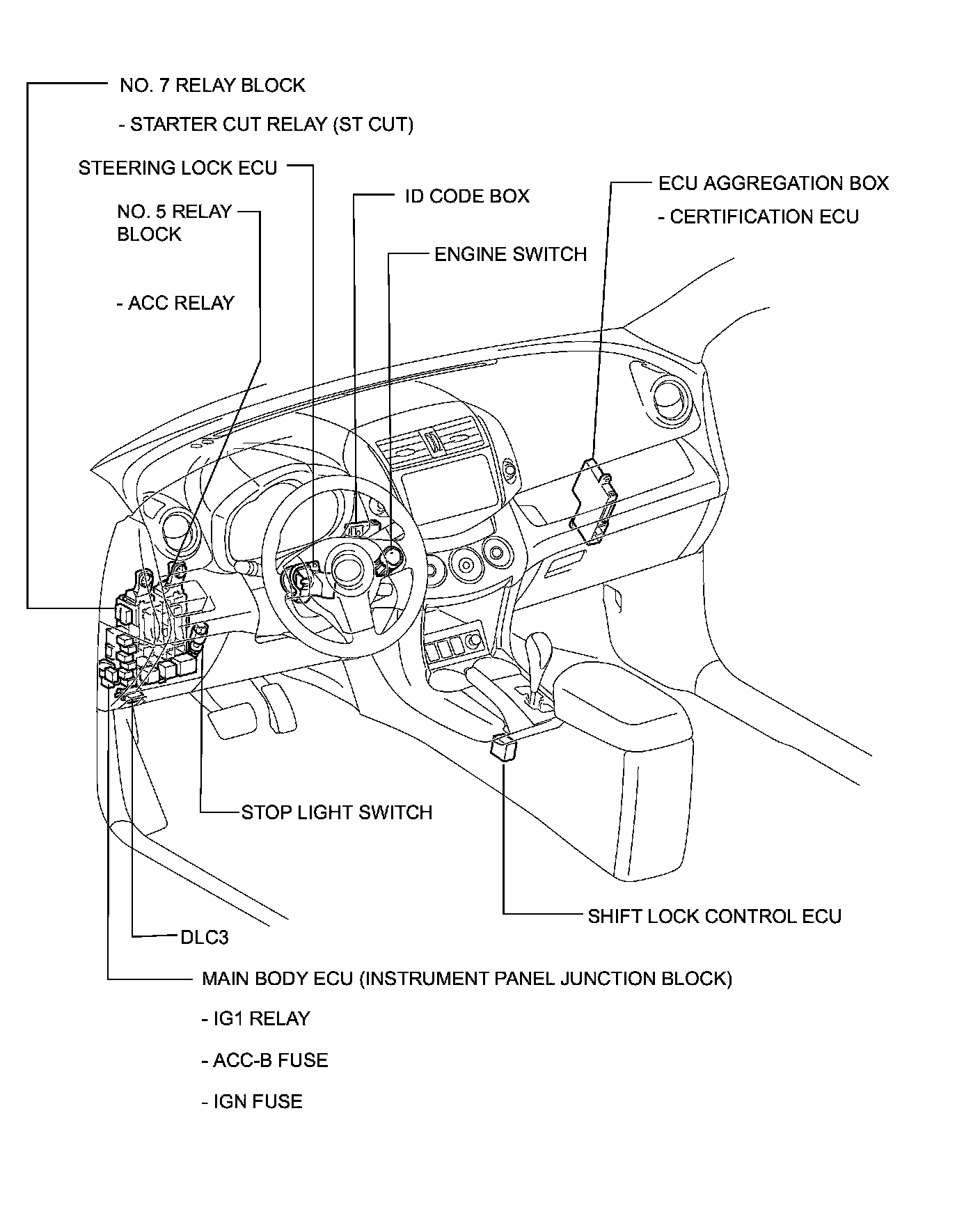

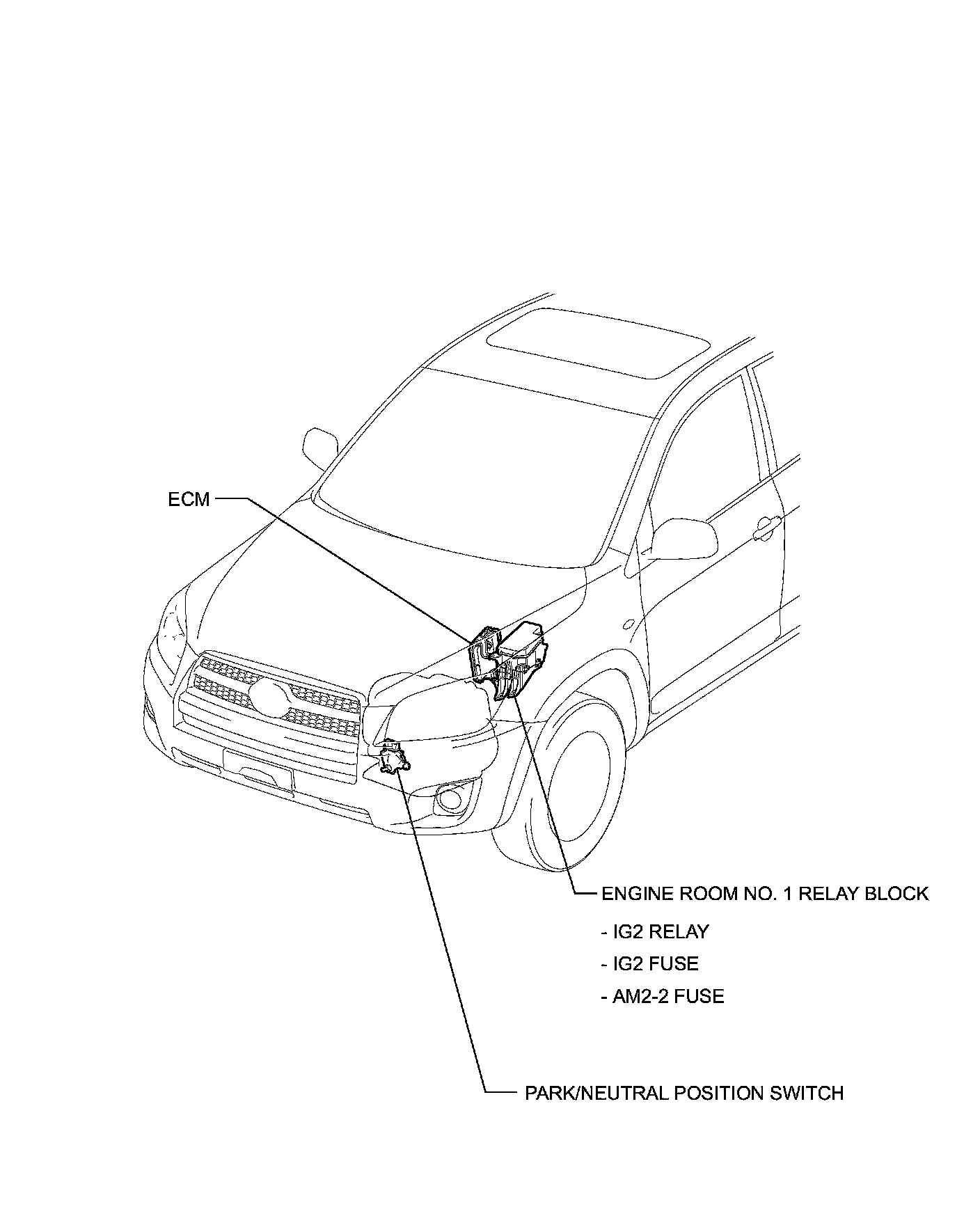

2AR-FE STARTING: SMART KEY SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
