Coolant Temperature Sensor/Switch (For Computer): Locations

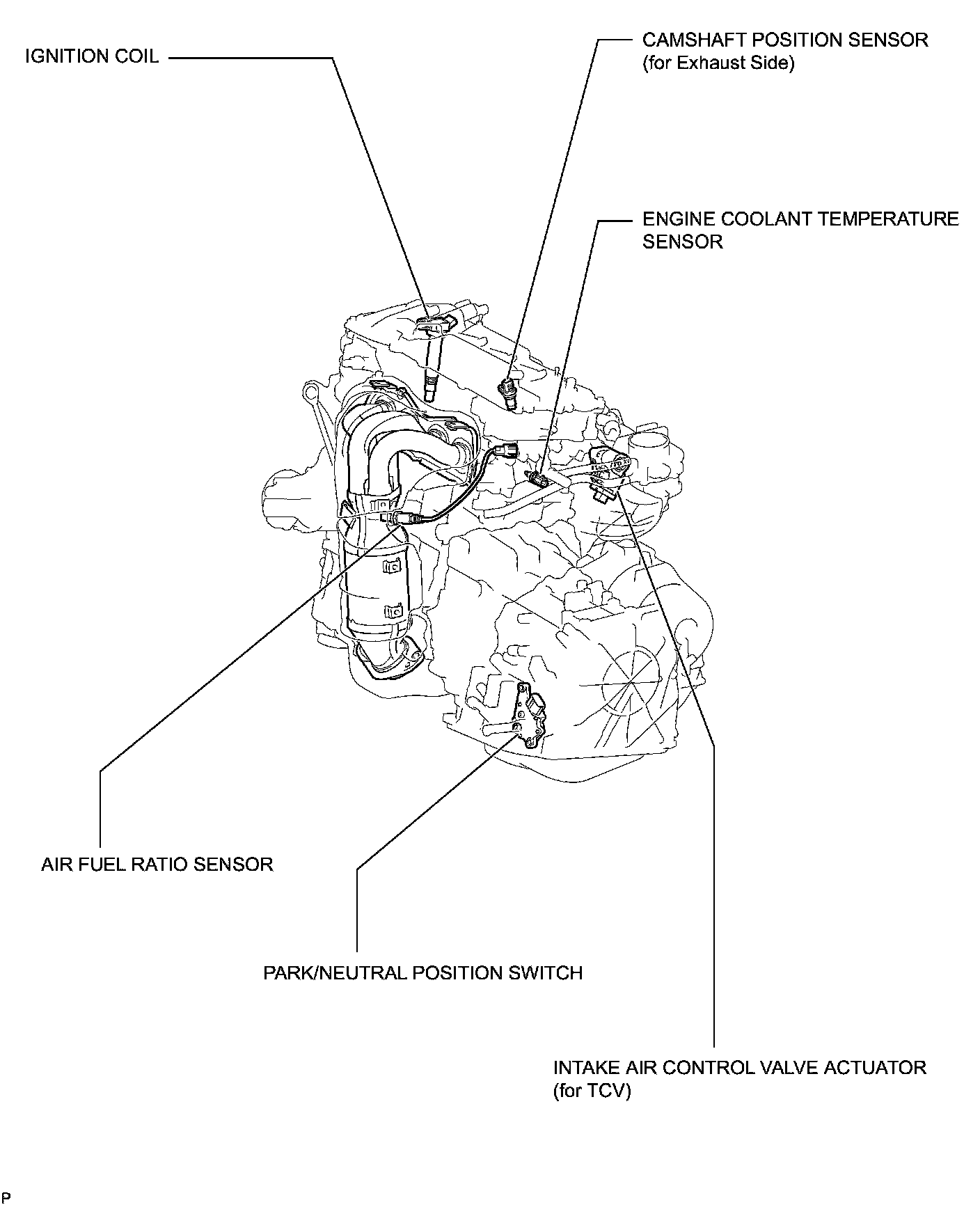

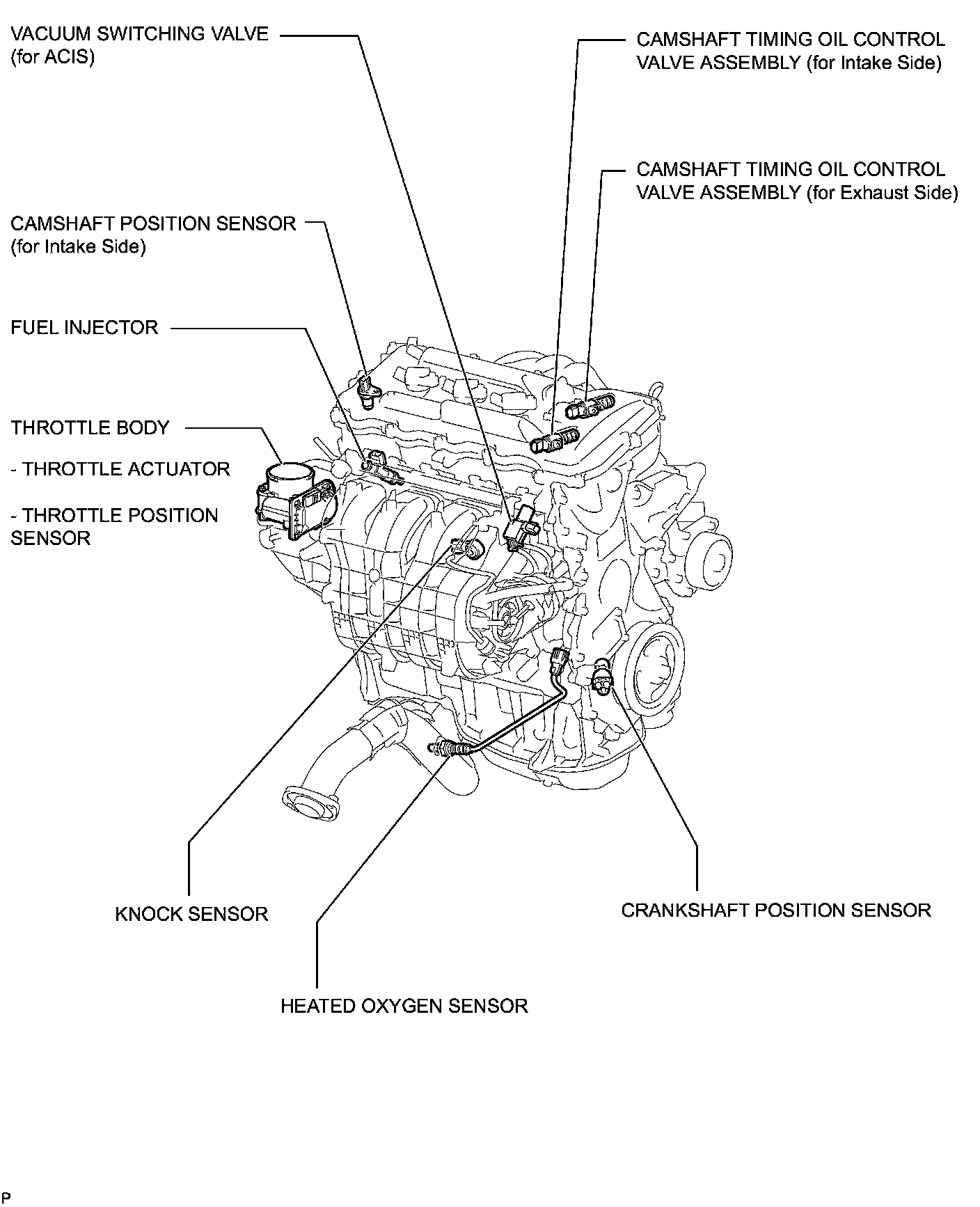

2AR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
