Transmission Control Systems: Locations

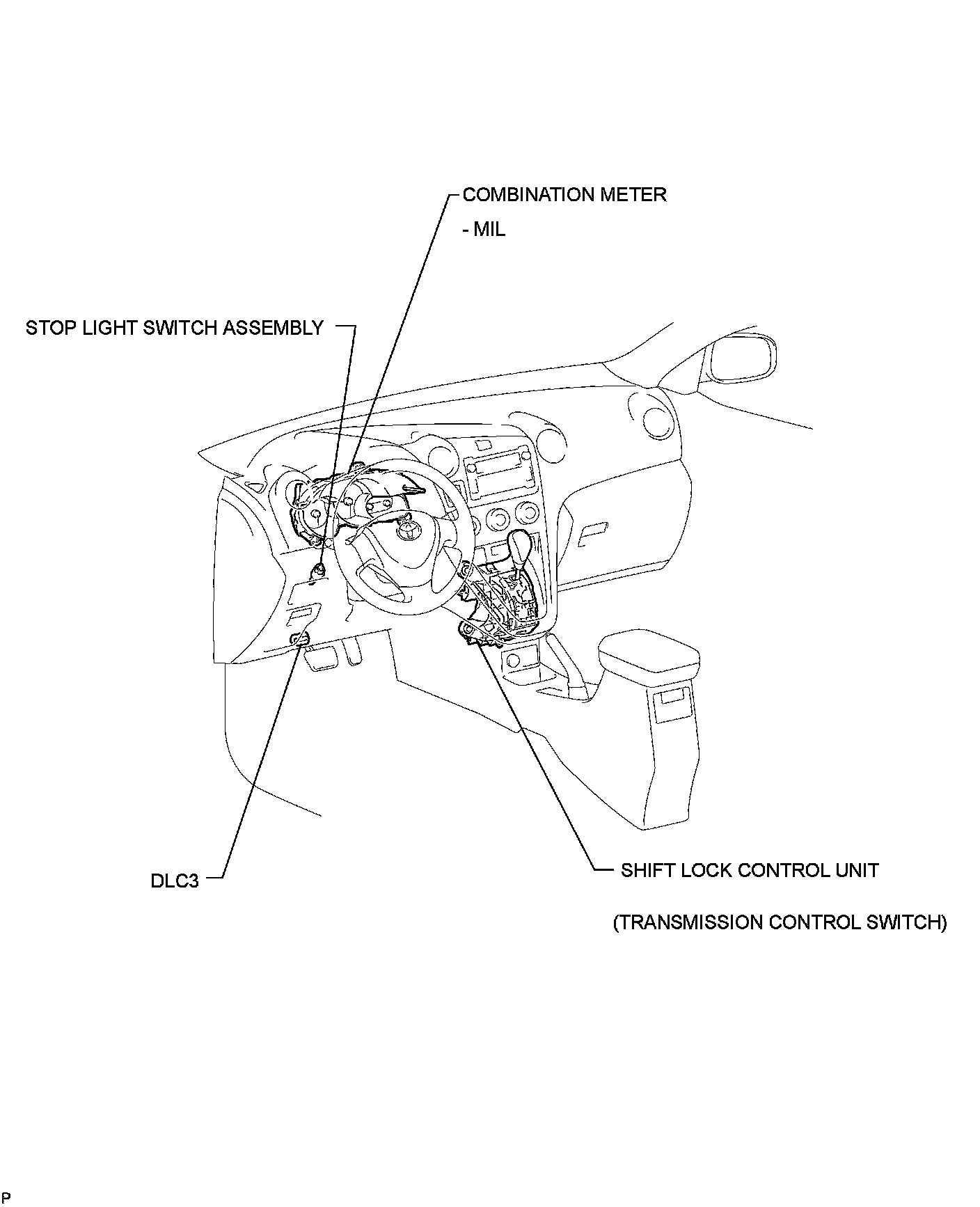

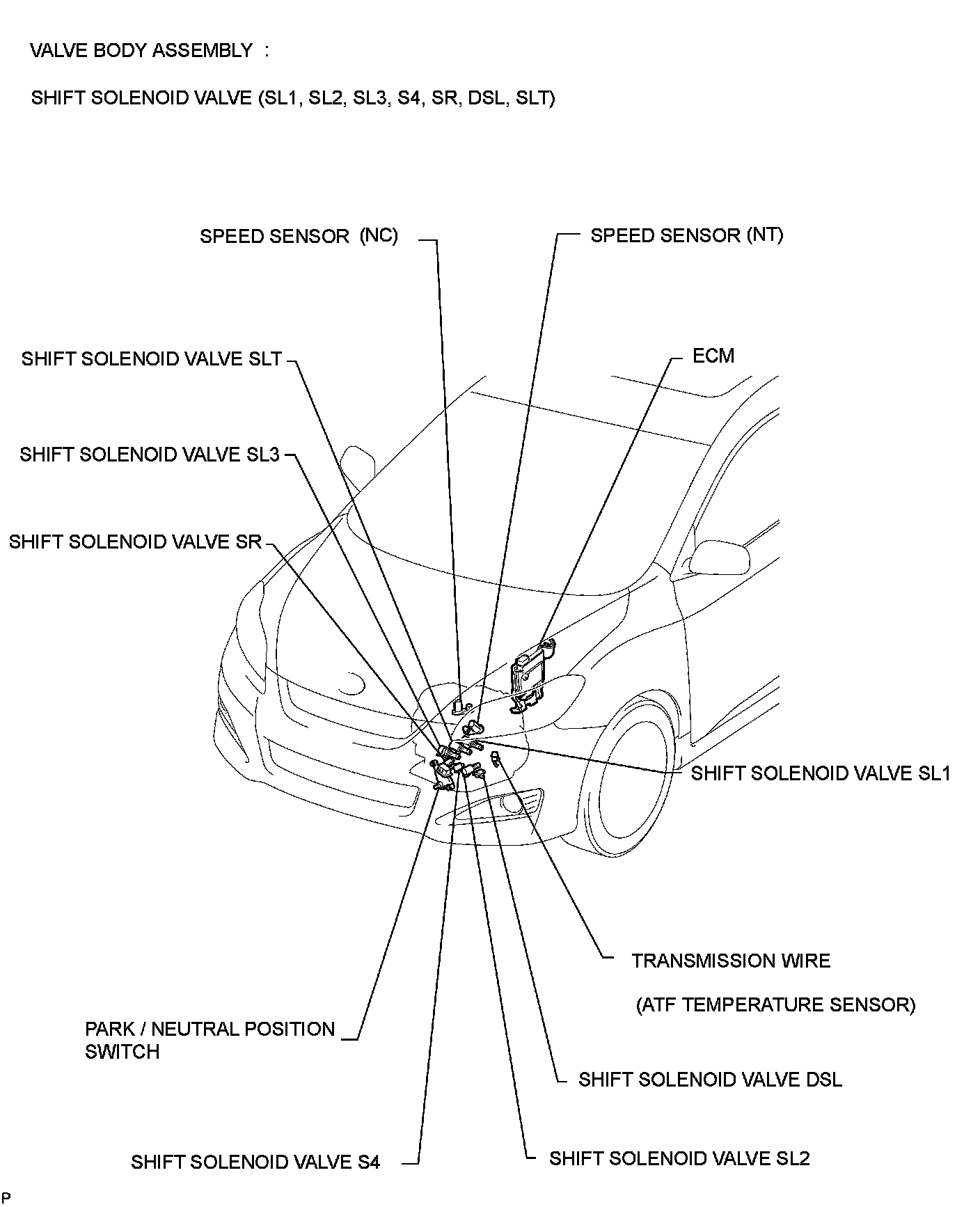

U250E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
