Removal

2AZ-FE ENGINE CONTROL: ENGINE COOLANT TEMPERATURE SENSOR: REMOVAL

REMOVAL

1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY Removal
2. DRAIN ENGINE COOLANT Service and Repair
3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE Removal
4. REMOVE AIR CLEANER CASE Removal
5. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

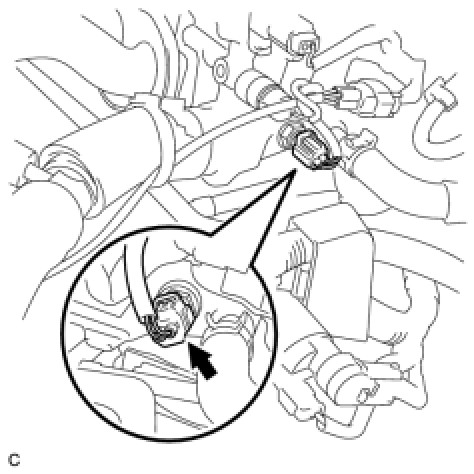

(a) Disconnect the engine coolant temperature sensor connector.

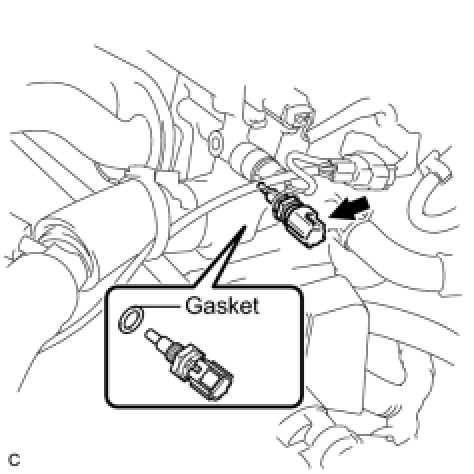

(b) Remove the engine coolant temperature sensor and gasket.
