Valve Body Assembly: Components

Fig 1: Identifying Valve Body Assembly Components (1 Of 3)
G06044439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

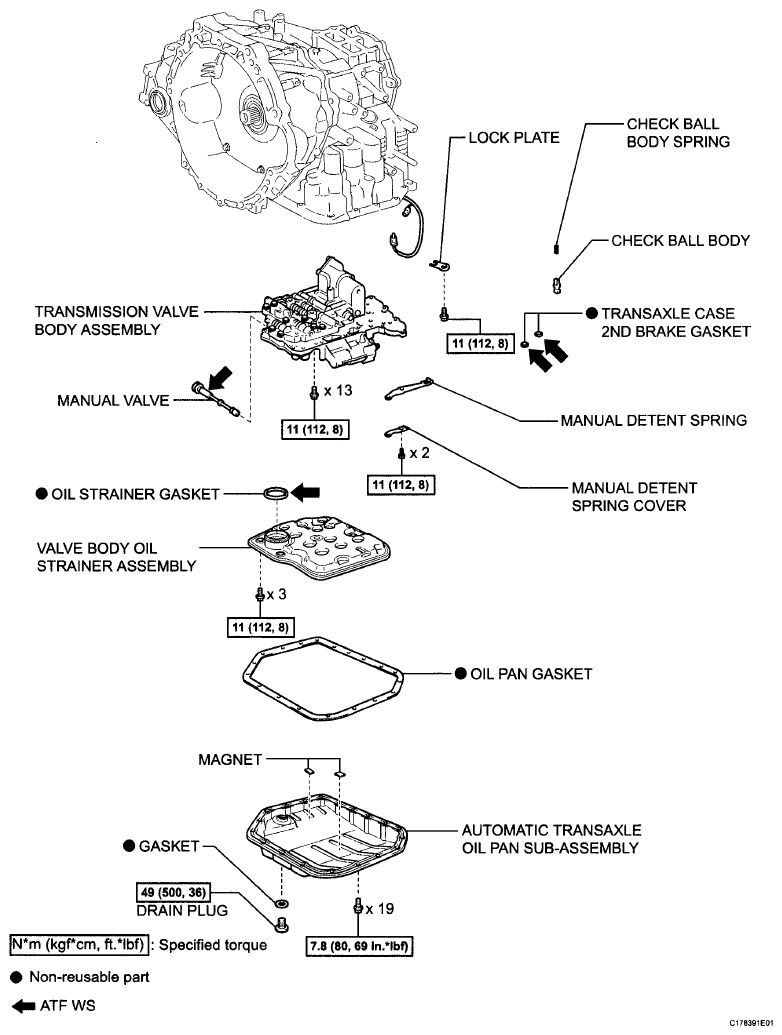

Fig 2: Valve Body Assembly Replacement Components With Torque Specifications (2 Of 3)
G06012079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

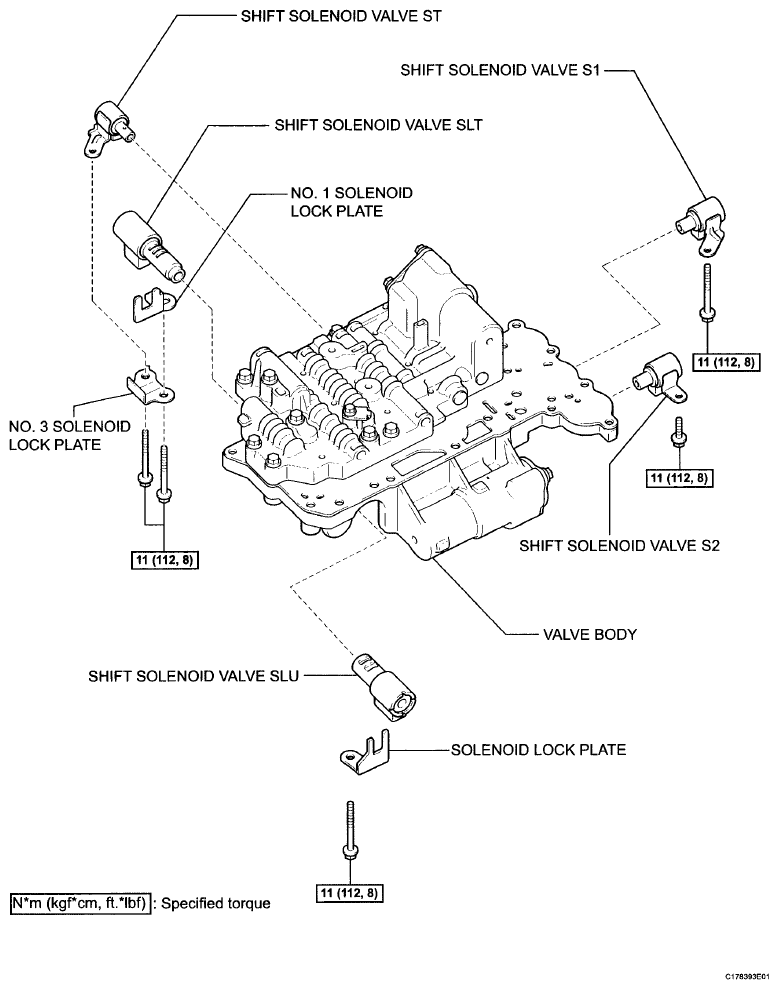

Fig 3: Valve Body Assembly Replacement Components With Torque Specifications (3 Of 3)
G06012080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
