Transmission Wire: Components

Fig 1: Transmission Wire Replacement Components With Torque Specifications (1 Of 2)
G06044431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

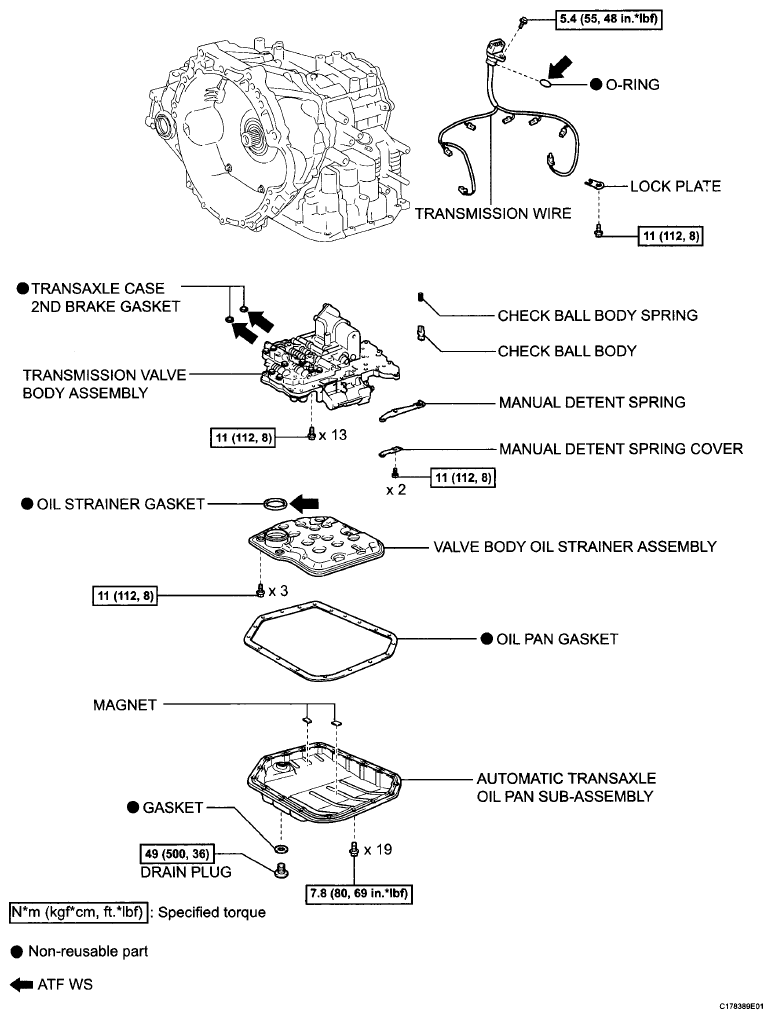

Fig 2: Transmission Wire Replacement Components With Torque Specifications (2 Of 2)
G06044432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
