System Diagram

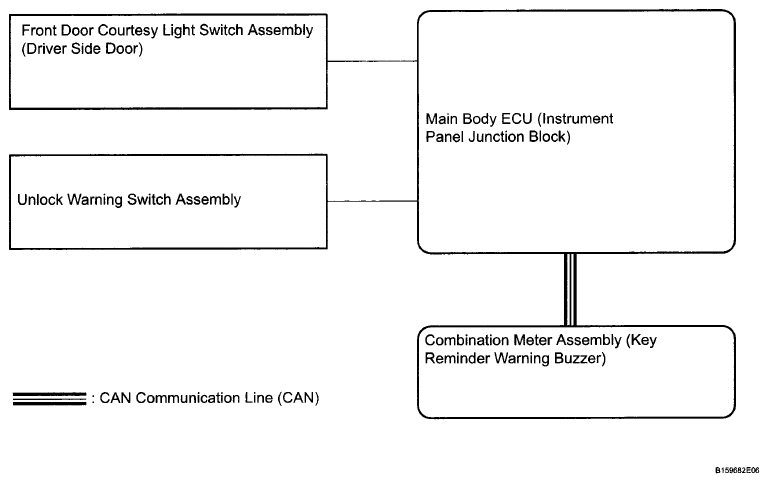

Fig 1: Key Reminder Warning System Diagram
G06036353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Main Body ECU

SIGNAL REFERENCE

Transmitting ECU Receiving ECU Signal Communication Method
Main Body ECU (Instrument Panel Junction Block) Combination Meter Assembly Driver side door courtesy light switch signal CAN
Main Body ECU (Instrument Panel Junction Block) Combination Meter Assembly Unlock warning switch signal CAN
