Keyless Entry: Locations

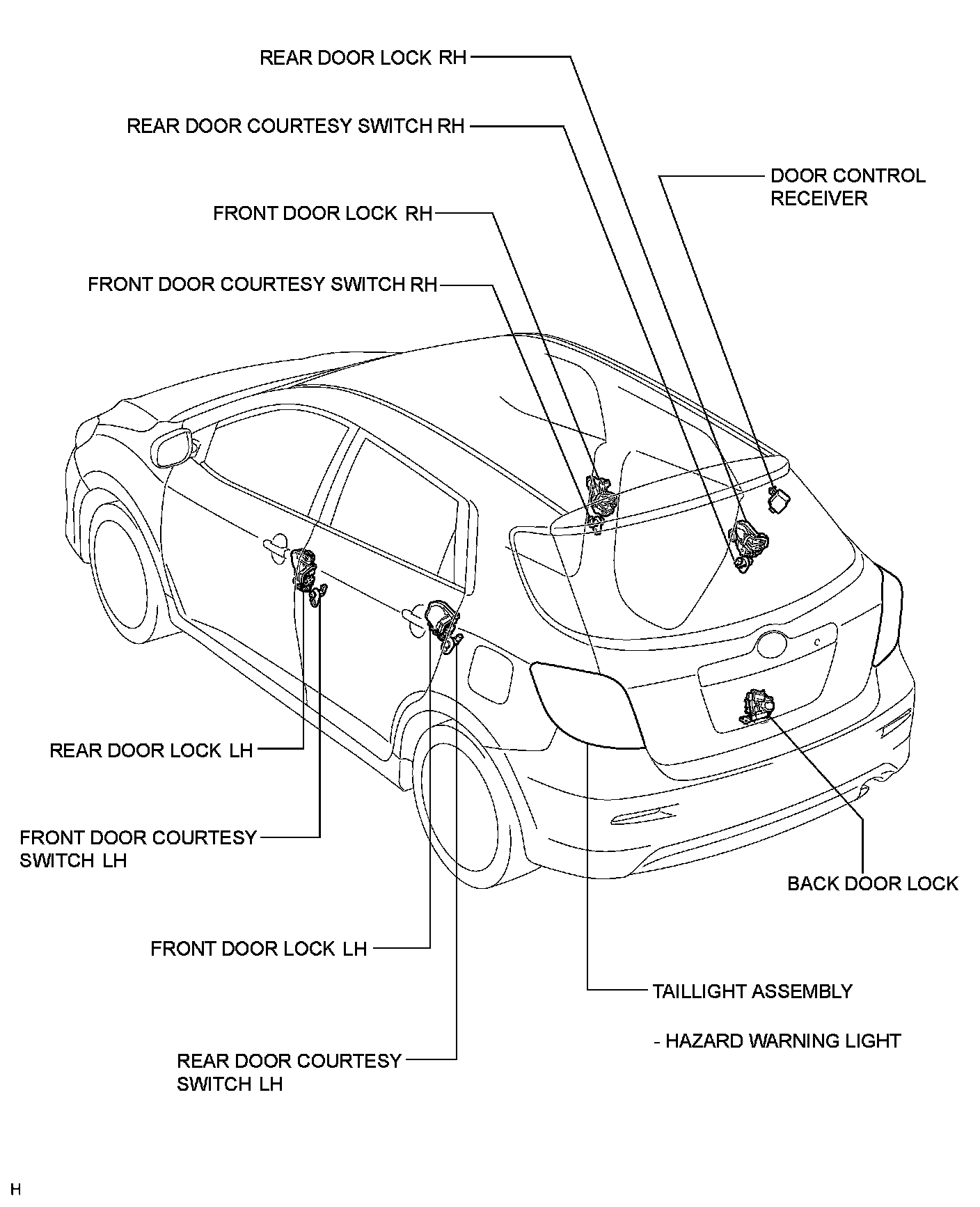

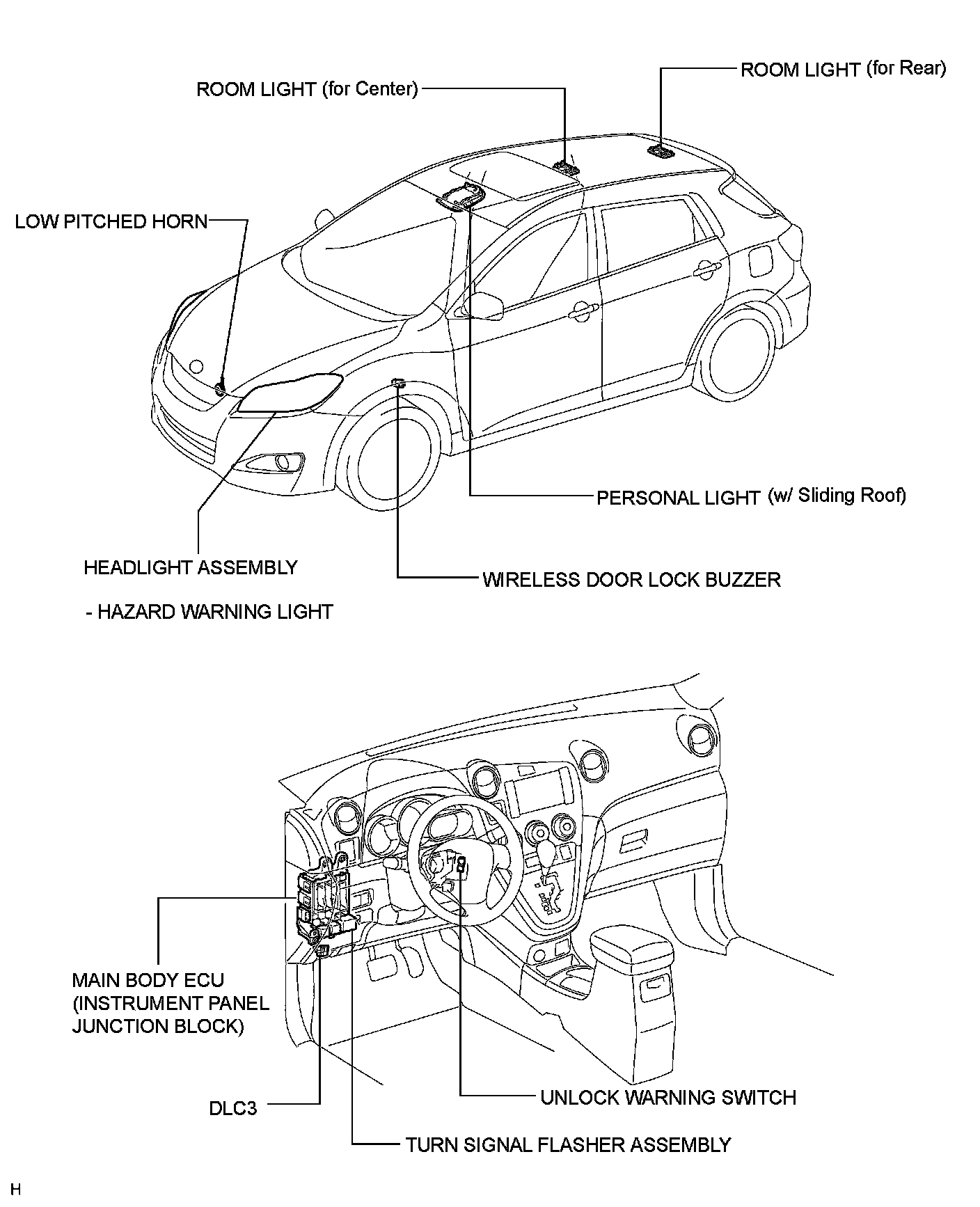

DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
