Parts Location

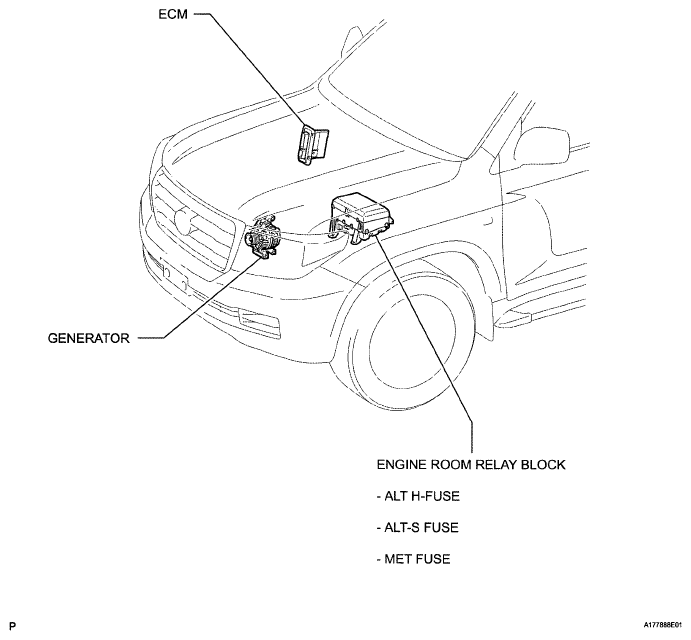

Fig 1: Identifying Charging System Components (1 Of 2)
G05639286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

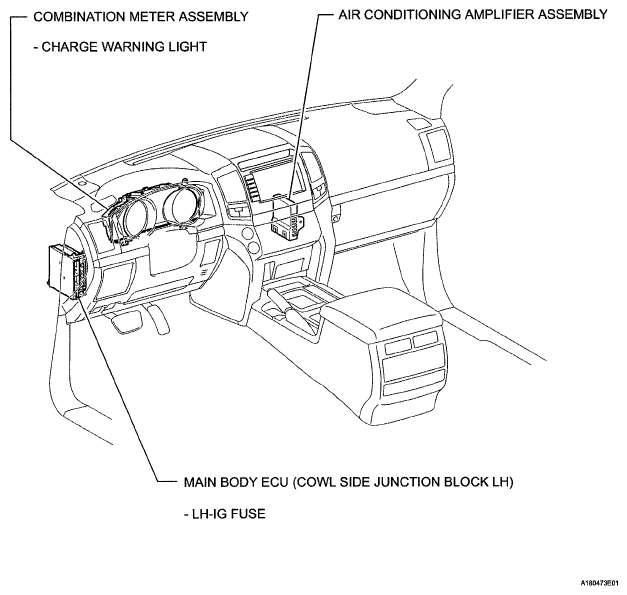

Fig 2: Identifying Charging System Components (2 Of 2)
G05639287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
