Highlander Base, 2.7 A
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Ignition System (1AR-FE)
>>
Ignition System
>>
System Diagram
System Diagram

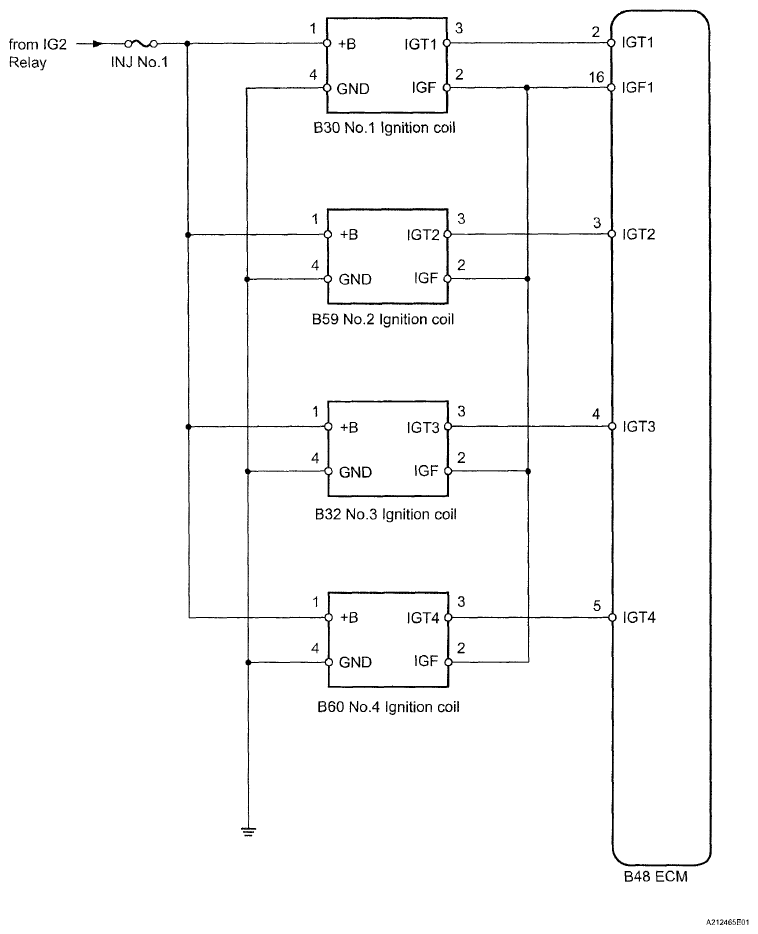

Fig 1: Ignition System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
