Ignition Coil And Spark Plug: Components

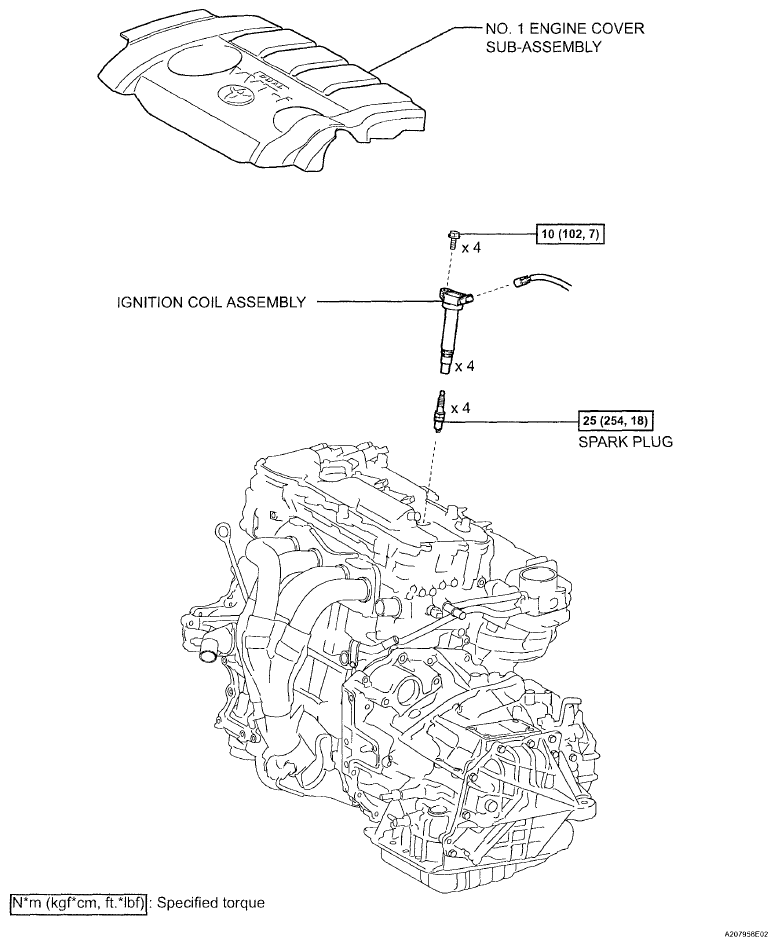

Fig 1: Identifying Ignition Coil And Spark Plug Components

G06115661

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
