Camshaft

CAMSHAFT BEARING CAP

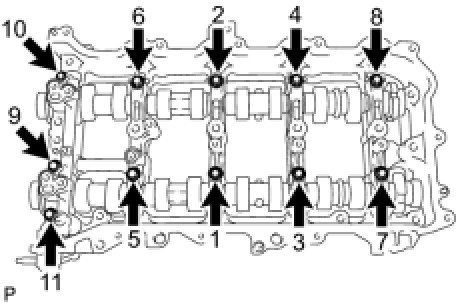

Install the 11 bolts in the order shown in the illustration.

Torque 16 Nm (163 kgf-cm, 12 ft-lbf)
